£503.72
excl. VAT
£604.46 incl. VAT
£604.46
incl. VAT
£503.72 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mower, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Extra info | Do not use this product at a speed of 1000 rpm. Also consult one of our product specialists for advice. |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1410 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1610089 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD25 |
| Size code | W2400 |

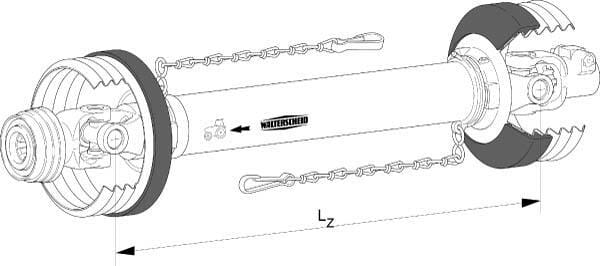

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20800 g |
| Dimensions | 1650 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000044892
Walterscheid Tension spring 1306629
£11.80 excl.
£14.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000076590

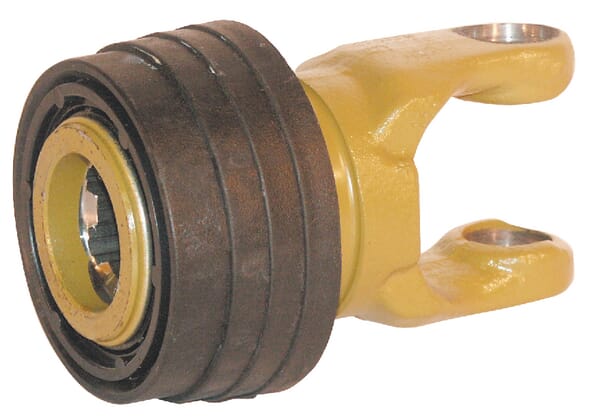

Walterscheid Yoke, Quick disconnect, 1-3/4"-6 spline, W2600/P600 268404
£234.87 excl.
£281.84 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000065135
Walterscheid Yoke, Profile tube, 40x34.5mm, W2280 2011810HE
£189.51 excl.
£227.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000029577
Walterscheid Cross journal 1116391
£48.74 excl.
£58.49 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000244784

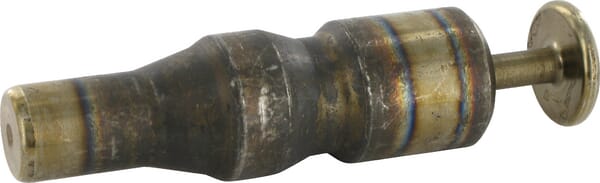

Walterscheid Coupling pin 38x150mm Cramer CK420007005
