£497.25
excl. VAT
£596.70 incl. VAT
£596.70
incl. VAT
£497.25 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LH |
| Inner tube wall thickness | 6 mm |
| Length | 560 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800062 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Star |
| Protection type | ST25 |
| Size code | W2400 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13800 g |
| Dimensions | 805 × 170 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000178338
Walterscheid Weld on Mounting plate 145x145mm 15x M20 8004959
£323.76 excl.
£388.51 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000146805

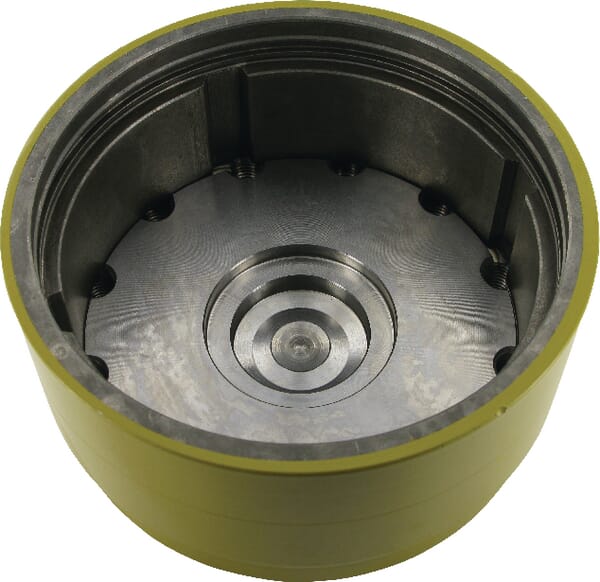

Walterscheid EK64/24R Housing - Flange 592210
£728.00 excl.
£873.60 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000098925
Walterscheid Yoke, profile tube, 51x37mm, P580 3614312M
£398.92 excl.
£478.70 incl.
In stock
Expected to ship on Monday 21 September
BPA000183090
Walterscheid Ring SC05 830901
£4.22 excl.
£5.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000065341

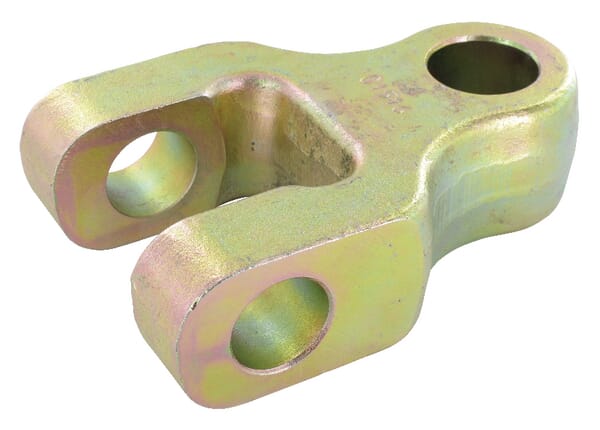

Walterscheid Fork Head 37,3x110,0mm 202023
£180.93 excl.
£217.12 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000092718

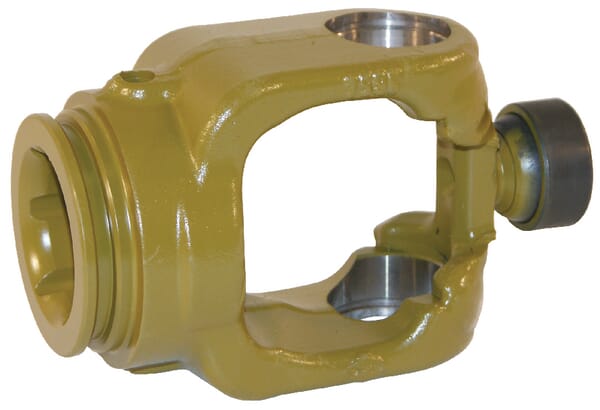

Walterscheid Yoke, Profile tube, 57.5x48mm, P480 3514310
