£540.82
excl. VAT
£648.98 incl. VAT
£648.98
incl. VAT
£540.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Inner tube profile | S5H |
| Length | 1010 mm |
| Outer tube profile | S6 |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Size code | W2600 |

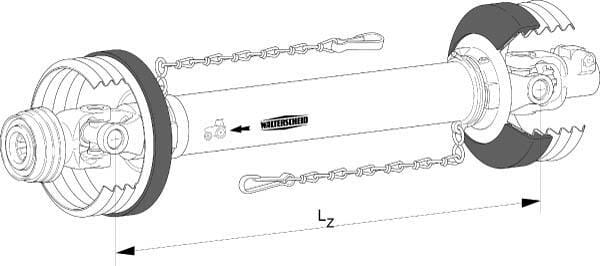

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31800 g |
| Dimensions | 1270 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092711

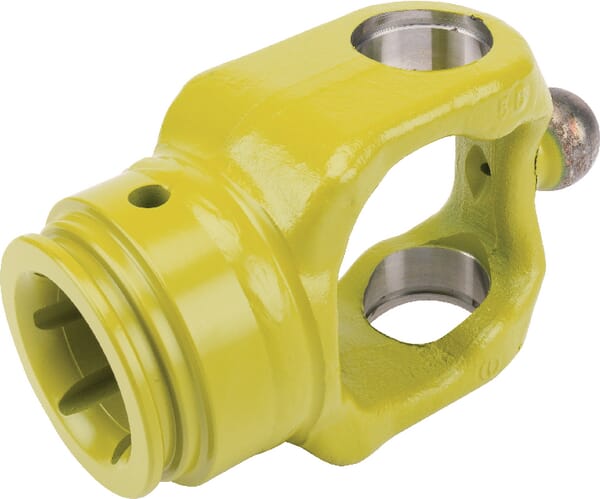

Walterscheid Yoke, profile tube, 51x37mm, W2480 3514181
£285.68 excl.
£342.82 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000029609
Walterscheid PTO outer half guard, L: 1500mm 1116599
£124.41 excl.
£149.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000096147
Walterscheid Yoke, Profile tube, W2500/P500 3626100
£342.56 excl.
£411.07 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000068584

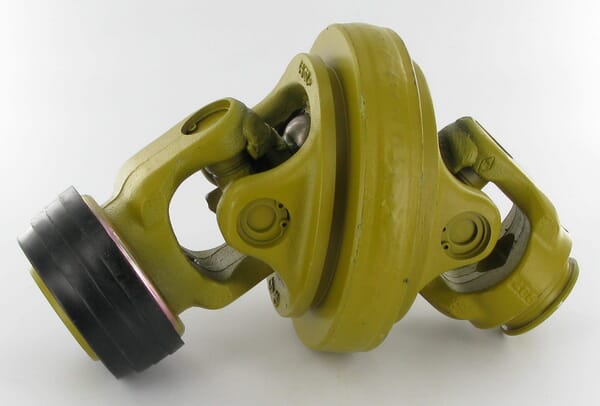

Walterscheid Wide-angle cv joint 80° 20838302032810
£626.02 excl.
£751.22 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000052505

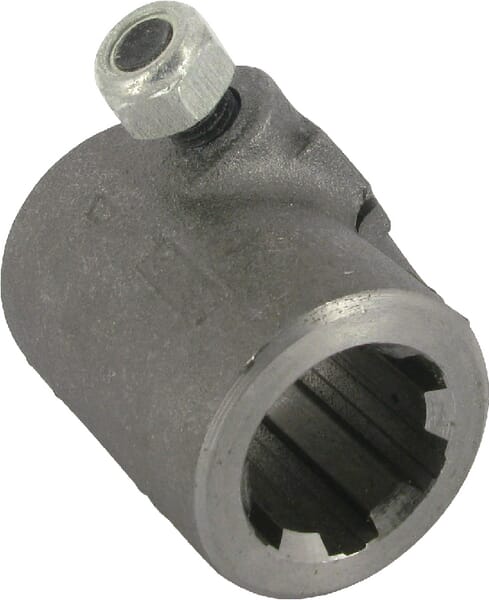

Walterscheid Hub KNP1 3/8-6 70 KF 1603141
£112.21 excl.
£134.65 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400099

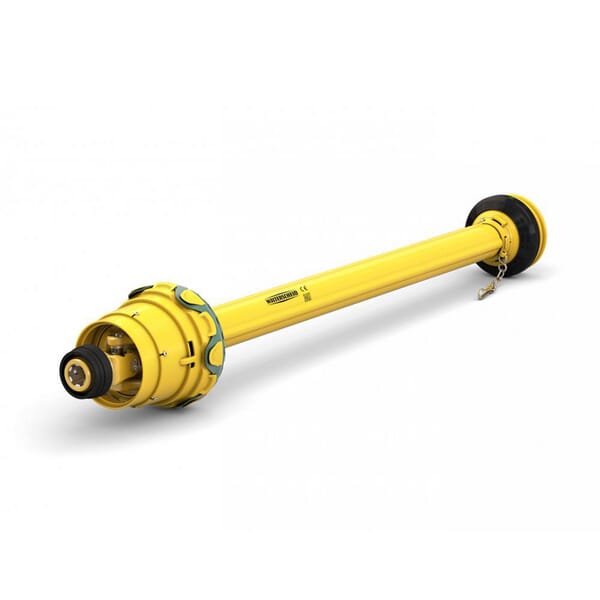

Walterscheid Wide angle PTO shaft WWE 2280 L: 860mm, WWE2280860
