£1,164.00
excl. VAT
£1,396.80 incl. VAT
£1,396.80
incl. VAT
£1,164.00 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Inner tube large outside diameter | 61 mm |
| Inner tube profile | S5H |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 7800 N·m |
| Original number equivalent | 1800074 |
| Outer tube large outside diameter | 71.5 mm |
| Outer tube profile | S6 |
| Outer tube wall thickness | 5 mm |
| Power 1000 rpm | 122 kW |
| Power 540 rpm | 79 kW |
| Profile tube shape | Star |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) Clamp cone, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD35 |
| Size code | W2600 |

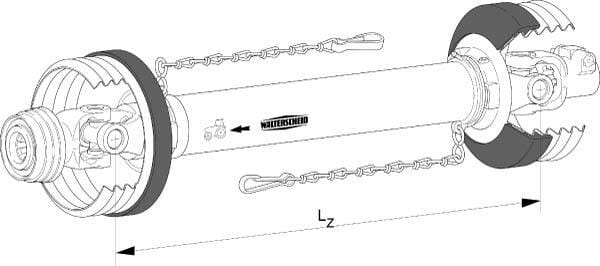

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 36000 g |
| Dimensions | 1500 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098877
Walterscheid Yoke, Profile tube, 39.5mm, W2500/P500 361300
£119.32 excl.
£143.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000024985

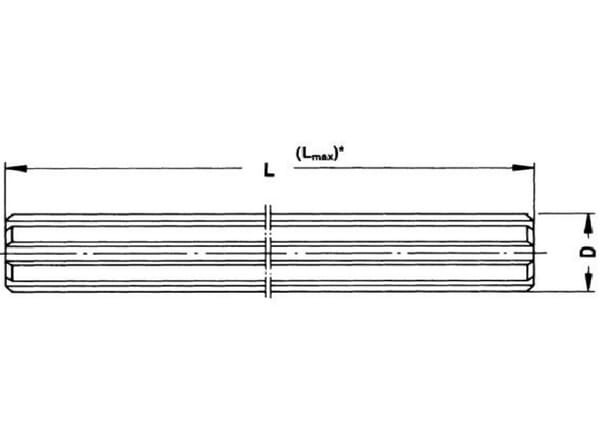

Walterscheid Profile 1045451
