£473.93
excl. VAT
£568.72 incl. VAT
£568.72
incl. VAT
£473.93 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mowers, Fertiliser mixers, Seeders |
|---|---|

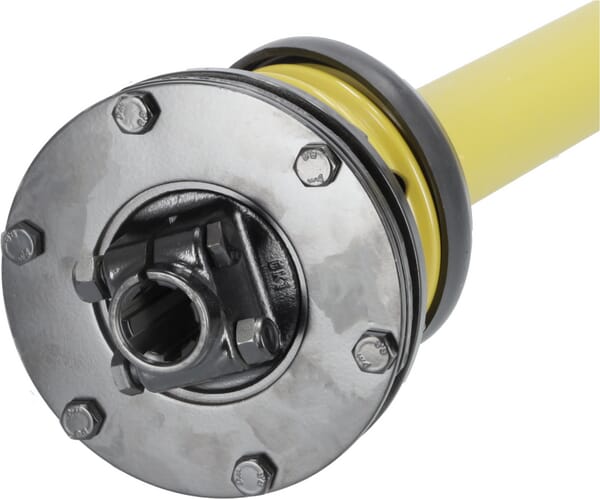

| Attachment machine side | Friction clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K90 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

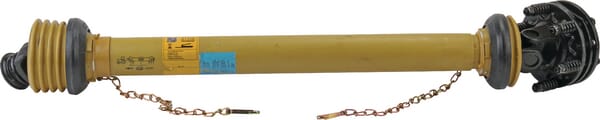

| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 900 N·m |
| Max static torque | 2200 N·m |
| Original number equivalent | 1800027 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD15 |
| Size code | W300E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19800 g |
| Dimensions | 1300 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000084225

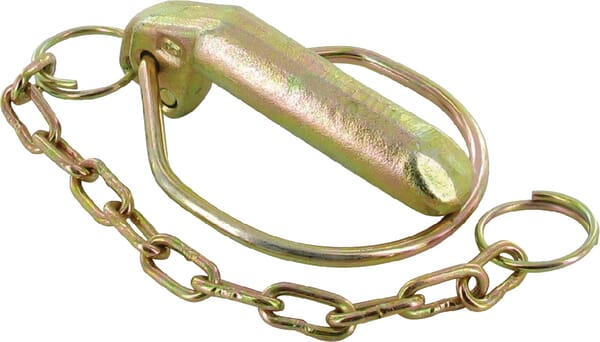

Walterscheid Linch pin cat. 3 305854
