£406.34
excl. VAT
£487.61 incl. VAT
£487.61
incl. VAT
£406.34 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

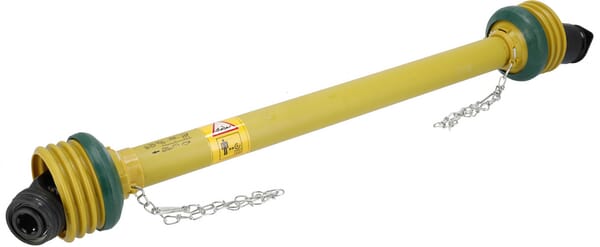

Product details
| Application range | Mowers, Harvesters, Fertiliser mixers |
|---|---|
| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | F5/1L |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 2200 N·m |
| Original number equivalent | 1610085 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) collar lock, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD15 |
| Size code | W300E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15000 g |
| Dimensions | 1260 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000040968
Walterscheid Piston rod 1204296
£1,147.51 excl.
£1,377.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000028030

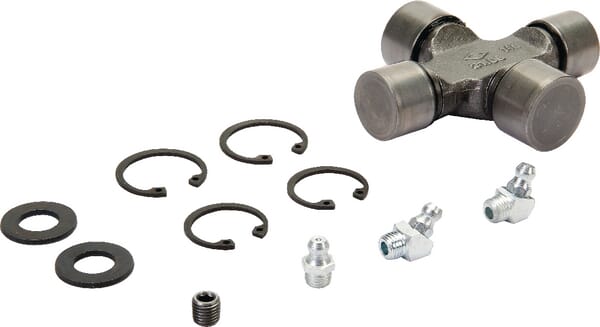

Walterscheid Cross journal diameter 27x75mm / diameter 24x91mm 2380 1123614
£86.83 excl.
£104.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000140514

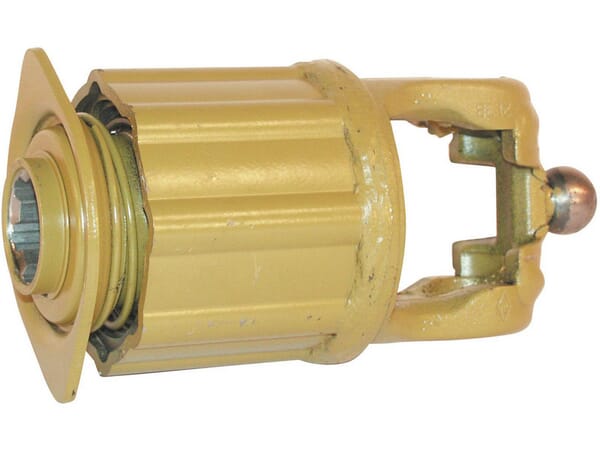

Walterscheid Radial pin clutch K32B withA 556730360
£443.02 excl.
£531.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092526
Walterscheid Cross journal diameter 32x76mm / diameter 27x94mm 2480 / P480 3506130
£131.71 excl.
£158.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144540
Walterscheid Shearbolt clutch KB61/20 5713518
£370.96 excl.
£445.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146475

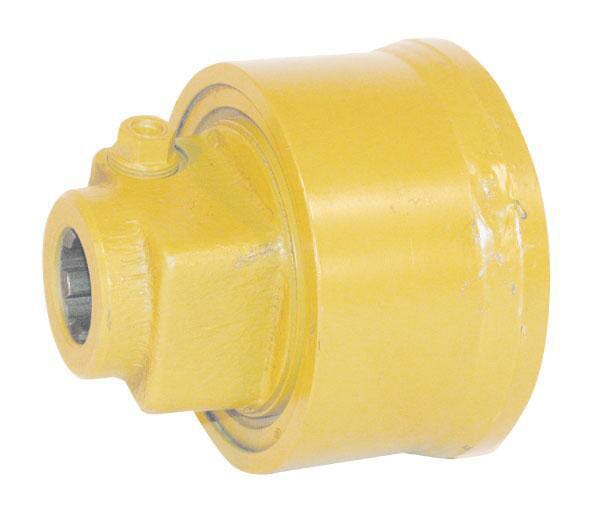

Walterscheid Cam clutch EK64/24R 250daNm 5910044250
