SKU BPA000400923 · Part No W400E1010F51L

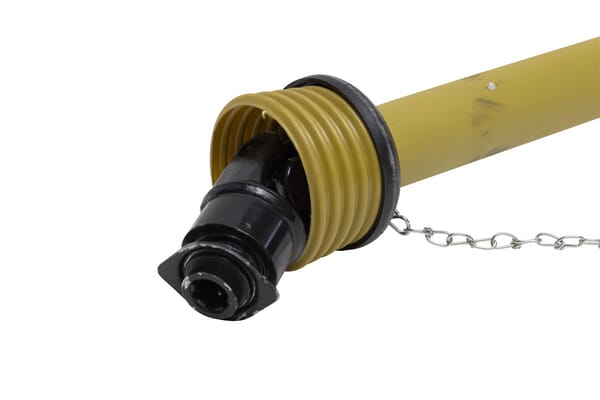

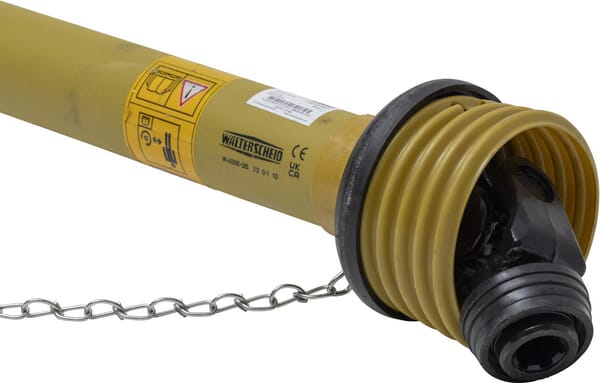

Walterscheid PTO shaft W400E L: 1010mm with overrunning clutch, W400E1010F51L

Name: PTO shaft W400E L: 1010mm with overrunning clutch, Walterscheid
Brand: Walterscheid
SKU: BPA000400923
Price: 525.32 GBP
Availability: BackOrder

Application range	Mowers, Harvesters, Fertiliser mixers
Attachment machine side	Overrunning clutch
Attachment tractor side	Quick disconnect yoke
Clutch type code	F5/1L
Connection outside diameter machine side inch and splines	1.3/8-6
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Pto shaft with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	32 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by machine side	76 mm
Cross joint length by tractor side	76 mm
Inner tube large outside diameter	49 mm
Inner tube profile	1b
Inner tube wall thickness	4.5 mm
Length	1010 mm
Locking type by machine side	Collar lock
Locking type by tractor side	Collar lock
Max static torque	3400 N·m
Original number equivalent	1610157
Outer tube large outside diameter	57.5 mm
Outer tube profile	2a
Outer tube wall thickness	4 mm
Power 1000 rpm	44 kW
Power 540 rpm	28 kW
Profile tube shape	Lemon
Properties	Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) collar lock, Lubrication interval: 8 hours, CE marking awarded
Protection type	SD25
Size code	W400E
Technical info	Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at a working angle of 5° and service life 700 hours
Unit	Each

EAN	—
Unit of measure	EA
Weight	19740 g
Dimensions	1250 × 160 × 160 mm
Dangerous goods	No

Walterscheid PTO shaft W400E L: 1010mm with overrunning clutch, W400E1010F51L
