£510.46
excl. VAT
£612.55 incl. VAT
£612.55
incl. VAT
£510.46 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

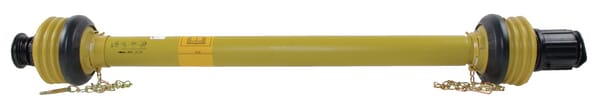

Product details
| Application range | Mowers, Harvesters, Fertiliser mixers |
|---|---|

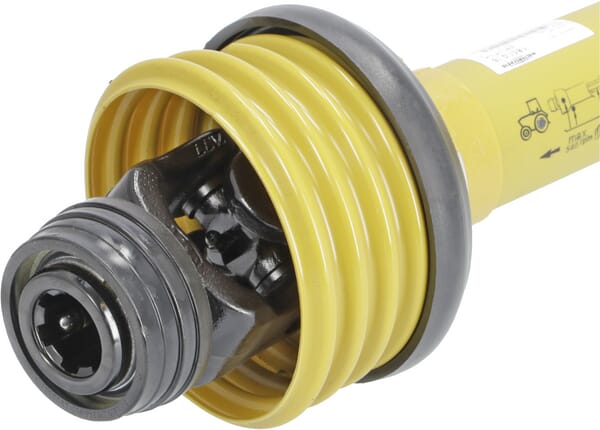

| Attachment machine side | Radial pin clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K34B |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |

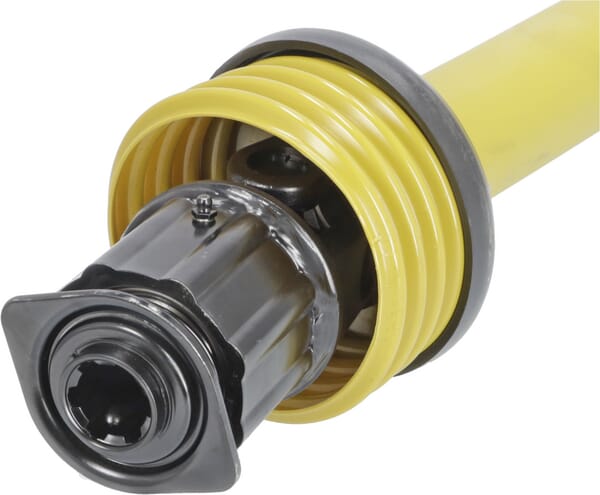

| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1200 N·m |
| Max static torque | 3400 N·m |
| Original number equivalent | 1610009 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD25 |
| Size code | W400E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20800 g |
| Dimensions | 1250 × 250 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143108

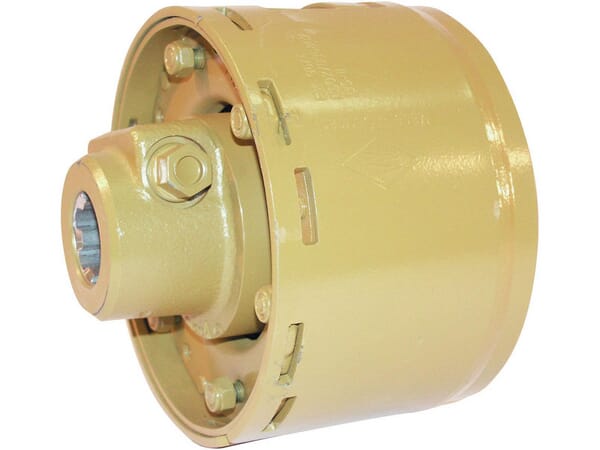

Walterscheid Friction clutch EK96/4 155daNm 5614251155
£948.89 excl.
£1,138.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244806

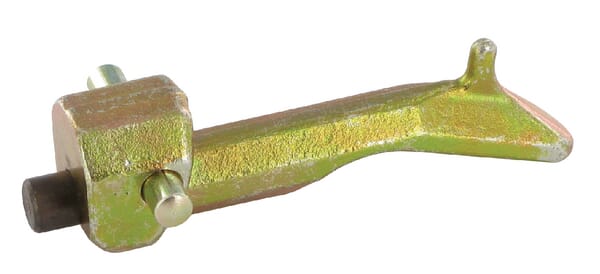

Walterscheid Mechanism complete Cramer CK464006410
£147.43 excl.
£176.92 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000189183
Walterscheid Guard cone SC05 RP3 8505109
£13.18 excl.
£15.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084581

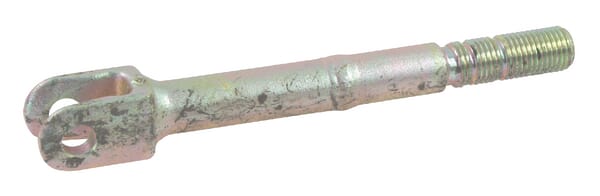

Walterscheid Fork rod M30 308546
£224.94 excl.
£269.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178376
Walterscheid Power steering system 8005408
£790.65 excl.
£948.78 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000024056

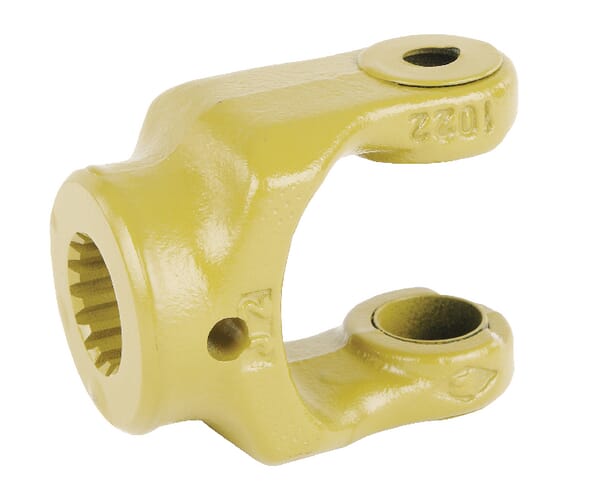

Walterscheid Yoke, hub, 1"-15 spline, W2100/W100E 1022343
