£1,253.46
excl. VAT
£1,504.15 incl. VAT
£1,504.15
incl. VAT
£1,253.46 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

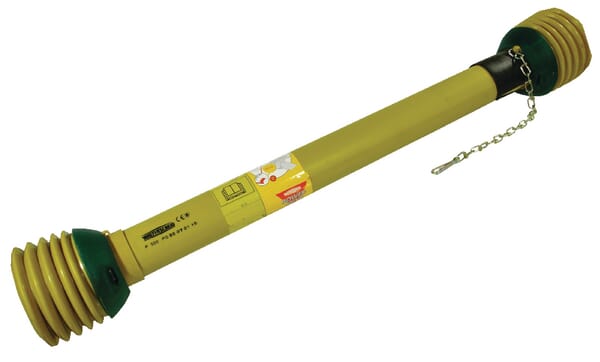

Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S5H |
| Length | 810 mm |
| Max static torque | 7800 N·m |
| Original number equivalent | 1113140 |
| Outer tube profile | S6 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG30 |
| Size code | P600 |

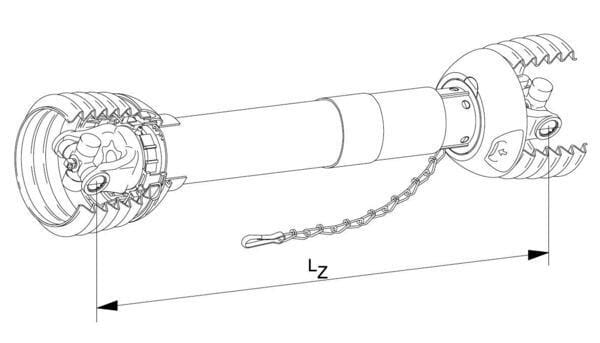

| Technical info | See Walterscheid instruction manual, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194017329 |
|---|---|
| Unit of measure | EA |
| Weight | 22700 g |
| Dimensions | 905 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
BPA000143590

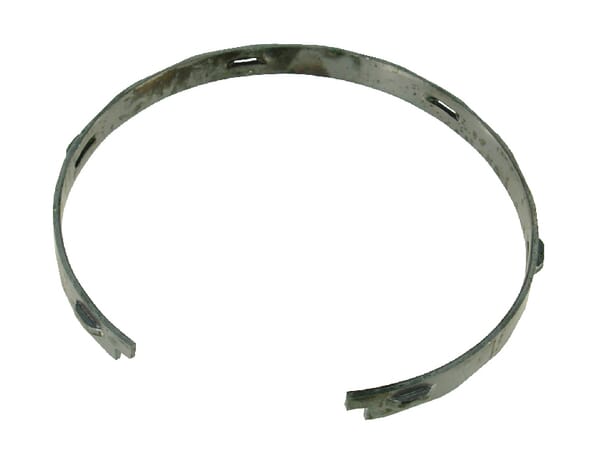

Walterscheid Supporting Ring 563600
£20.39 excl.
£24.47 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000033442

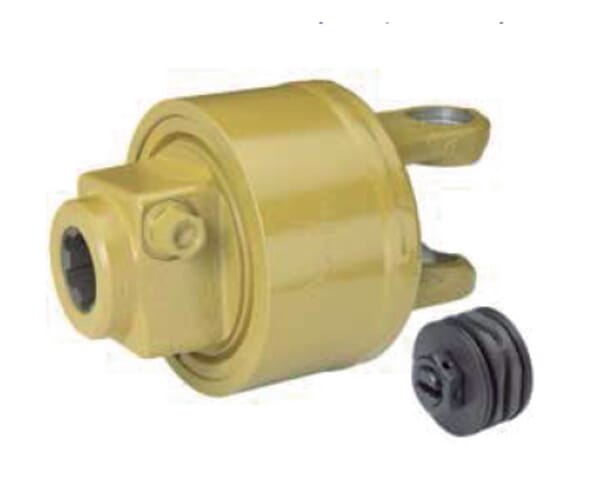

Walterscheid Cam-type cut-out clutch 1134829
£1,302.15 excl.
£1,562.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000178340
Walterscheid Screw 8005014
£1.40 excl.
£1.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084567

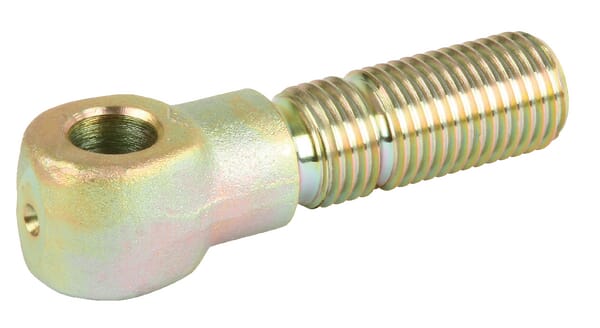

Walterscheid Rod end for ASST-B L=116 308350
£251.44 excl.
£301.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178319

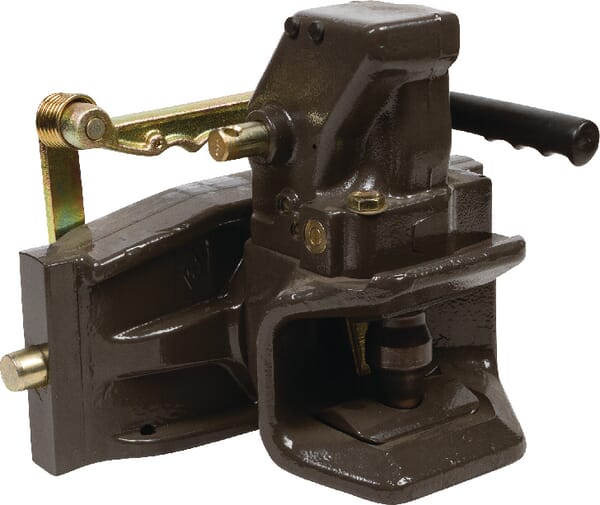

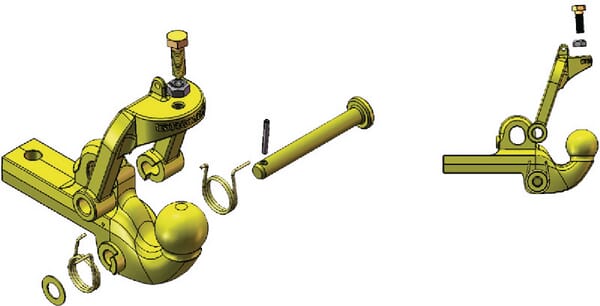

Walterscheid Pick-Up Hitch 8004631
£1,362.21 excl.
£1,634.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084577
Walterscheid Roll pin 10x36mm DIN1481 308520KK
£3.17 excl.
£3.80 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000366060

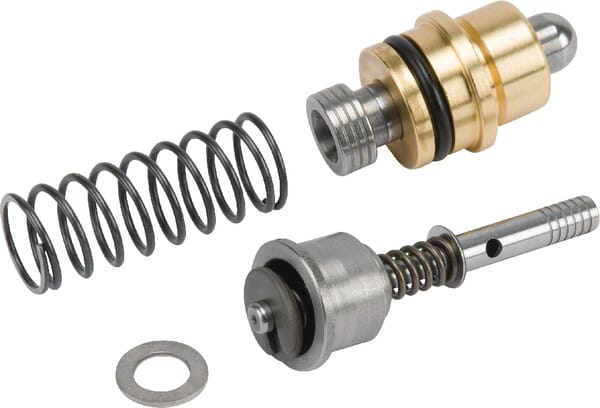

Walvoil Cartridge SV30/50 Curve 65 SV930065
