£1,965.09
excl. VAT
£2,358.11 incl. VAT
£2,358.11
incl. VAT
£1,965.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 50 mm |
| Cross joint bush diameter by tractor side | 50 mm |
| Cross joint length by machine side | 118 mm |
| Cross joint length by tractor side | 118 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S5H |
| Length | 1210 mm |
| Long description | PTO drive shafts complete Power Drive series P 700 |
| Max static torque | 10600 N·m |
| Original number equivalent | 1113077 |
| Outer tube profile | S6 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG30 |
| Size code | P700 |

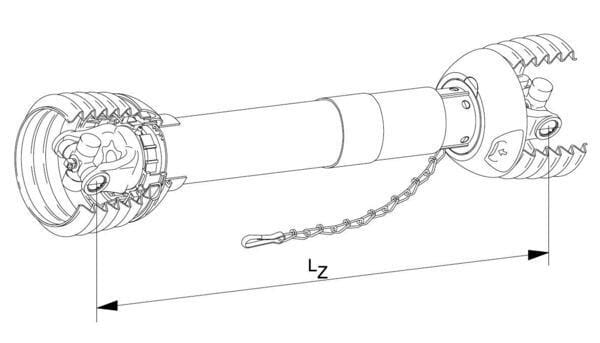

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 119 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 182 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8432970150607 |
|---|---|
| Unit of measure | EA |
| Weight | 36800 g |
| Dimensions | 1300 × 240 × 240 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000095367
Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2500/P500 3683102
£197.98 excl.
£237.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000021428
Walterscheid Toplink ball Cat.3/2 diameter 25.4/60x51mm 099044
£16.82 excl.
£20.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400876

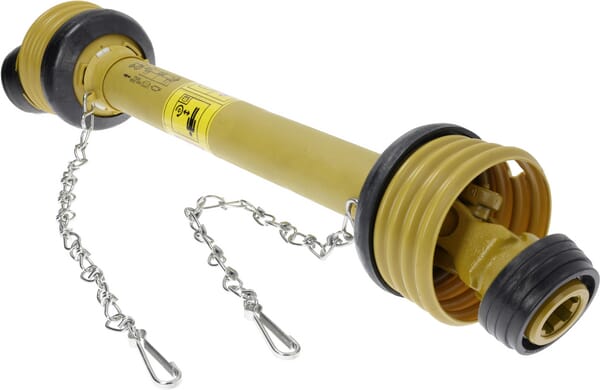

Walterscheid PTO shaft W2600 L: 860mm, W2600860
£1,271.79 excl.
£1,526.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084311
Walterscheid Seal cat.2 306068
£136.47 excl.
£163.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356956
Walterscheid PTO inner half guard diameter 160, L: 1,000mm SD251000ID160
£79.84 excl.
£95.81 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000065273

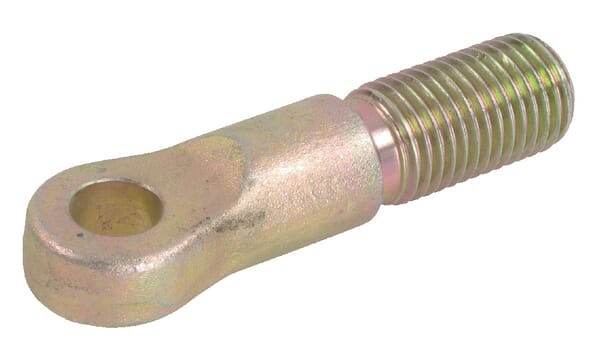

Walterscheid Fork rod ASST-B 201694
