£1,645.88
excl. VAT
£1,975.06 incl. VAT
£1,975.06
incl. VAT
£1,645.88 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |

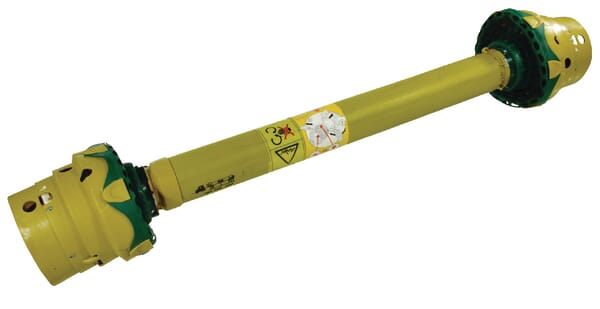

| Consists of | Pto shaft wide angle, 2 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by machine side - longer part | 27 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LGA |
| Length | 1210 mm |
| Locking type by machine side | Wide angle without UJ |
| Locking type by tractor side | Wide angle without UJ |
| Max static torque | 3000 N·m |
| Original number equivalent | 1113264 |
| Outer tube profile | S5 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Star |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWZ 480 |

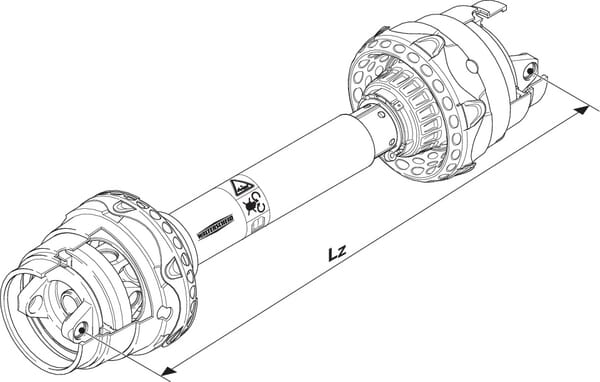

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30600 g |
| Dimensions | 1300 × 240 × 240 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000024887

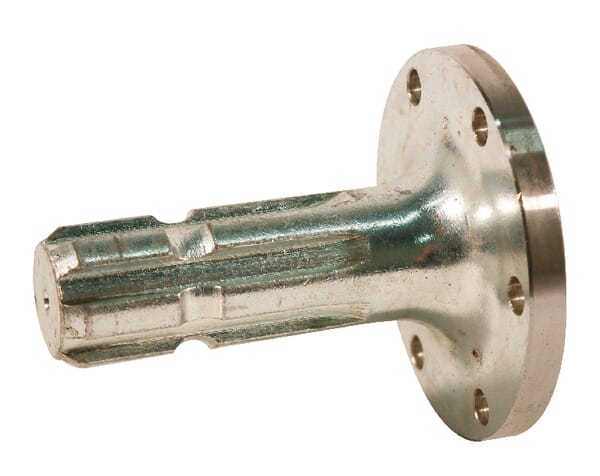

Walterscheid Shaft with flange 1042694
£277.38 excl.
£332.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000065061
Walterscheid Repair kit Agraset 371 201029
£52.30 excl.
£62.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000188487
Walterscheid Guard safety chain 600mm 823608
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000033565
Walterscheid Shear bolt / overrun clutch FKB 61/20L 1167370
£716.31 excl.
£859.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000181282

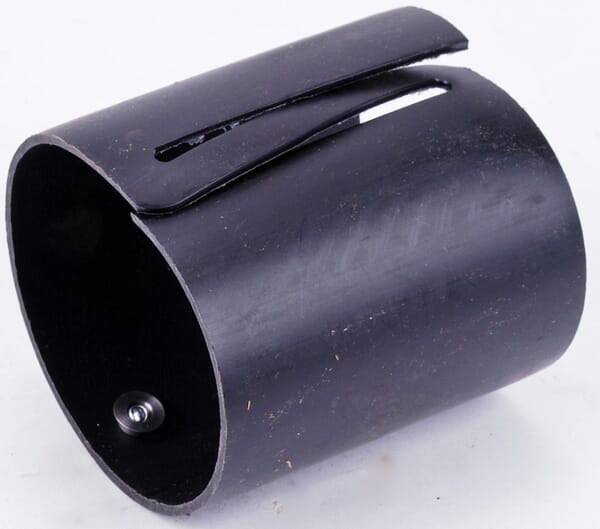

Walterscheid Lubrication hole cover PG20 8064102
£13.75 excl.
£16.50 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178294

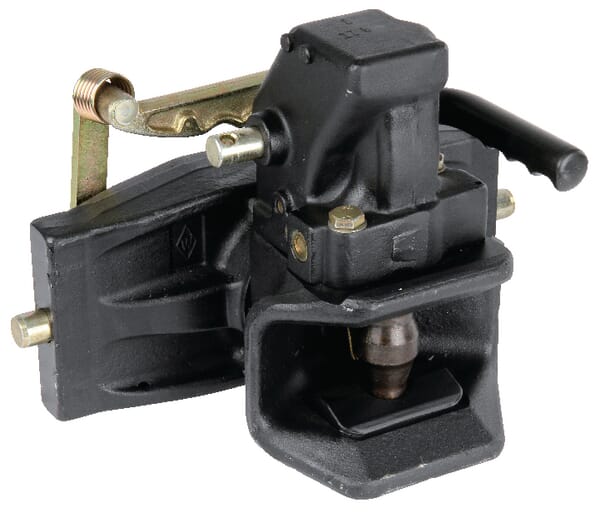

Walterscheid Trailer coupling 314mm 8004322
£1,251.69 excl.
£1,502.03 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000367092

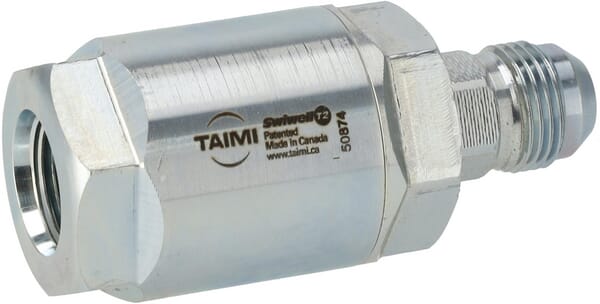

Faster Swivel M 1-5/16 JIC x F 1-5/16 JIC SZJ16MJB16F
£154.88 excl.
£185.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247913

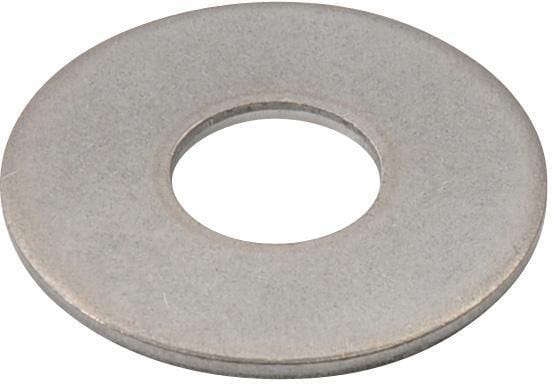

Kramp Coach bolt washer M6x30x1.5mm Stainless steel A4 CR630RVSA4
£0.23 excl.
£0.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000364708

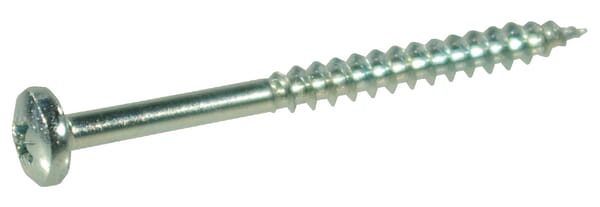

Kramp Wood Screw 3.5x30mm PZ2 cross head Steel SPL3530P200
