£285.16
excl. VAT
£342.19 incl. VAT
£342.19
incl. VAT
£285.16 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by tractor side | 61 mm |
| Inner tube profile | Ov |
| Length | 860 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Long description | Series W2300 without yokes |
| Max static torque | 1550 N·m |
| Original number equivalent | 1800077 |
| Outer tube profile | 1 |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD15 |
| Size code | W2200 |

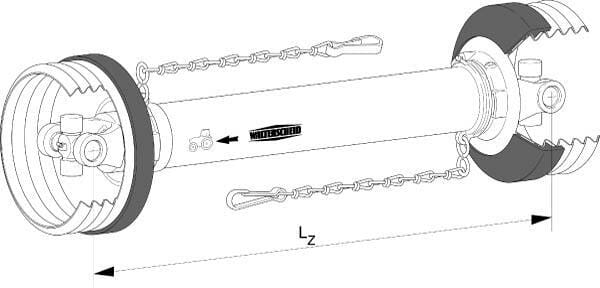

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7800 g |
| Dimensions | 900 × 170 × 170 mm |
| Dangerous goods | No |
