£320.28
excl. VAT
£384.34 incl. VAT
£384.34
incl. VAT
£320.28 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube profile | 1b |
| Length | 860 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 2300 N·m |
| Original number equivalent | 1800081 |
| Outer tube profile | 2a |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2300 |

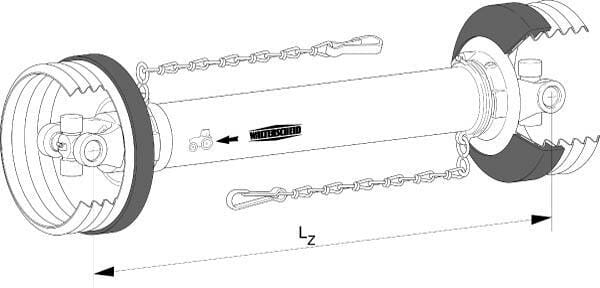

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11100 g |
| Dimensions | 1110 × 290 × 260 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400813
Walterscheid PTO shaft without yokes W2300 L: 860mm, W2300860OG
£292.87 excl.
£351.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000363719

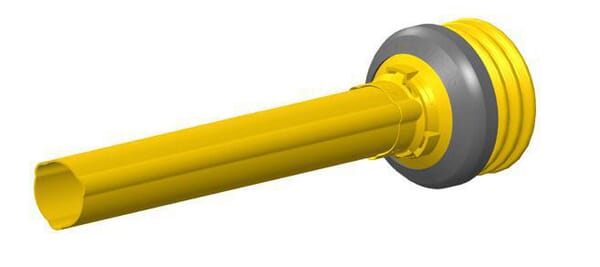

Walterscheid Guard half outer ST15 D158 ST151000A
£94.05 excl.
£112.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000189183

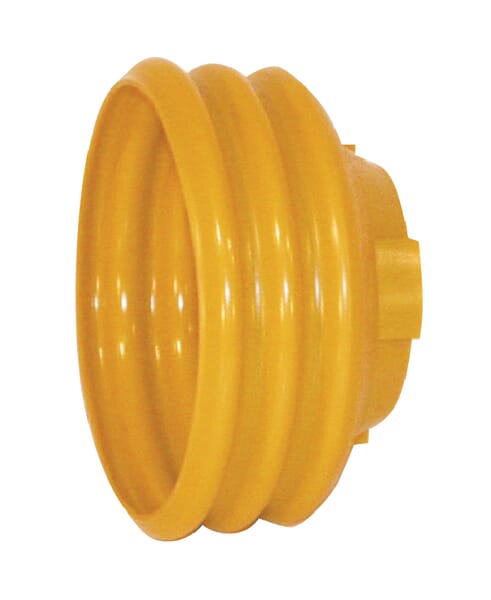

Walterscheid Guard cone SC05 RP3 8505109
£13.18 excl.
£15.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084354
Walterscheid Ball end category 3H Hole diameter 37mm 306332
£130.16 excl.
£156.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000178234

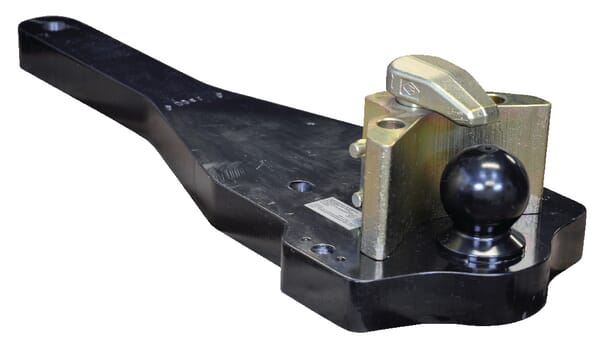

Walterscheid Carry plate Ball coupling 80 mm 8003284
