£1,049.72
excl. VAT
£1,259.66 incl. VAT
£1,259.66
incl. VAT
£1,049.72 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Inner tube profile | S5H |
| Length | 1210 mm |
| Max static torque | 7800 N·m |
| Original number equivalent | 1113134 |
| Outer tube profile | S6 |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD35 |
| Size code | W2600 |

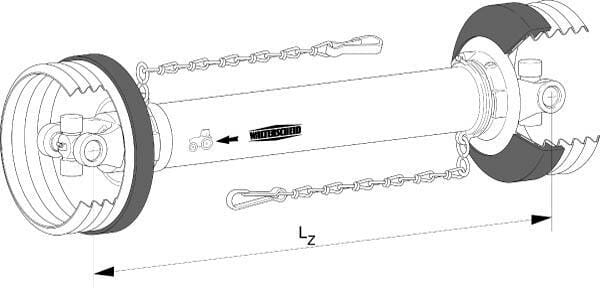

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194015660 |
|---|---|
| Unit of measure | EA |
| Weight | 28400 g |
| Dimensions | 1280 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000084711

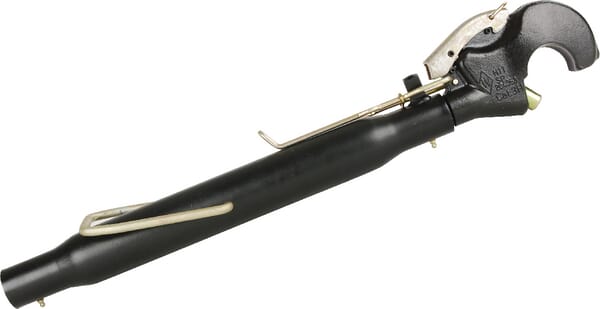

Walterscheid Toplink eye/hook 470, M30 cat.2/2 309957
£438.80 excl.
£526.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400107

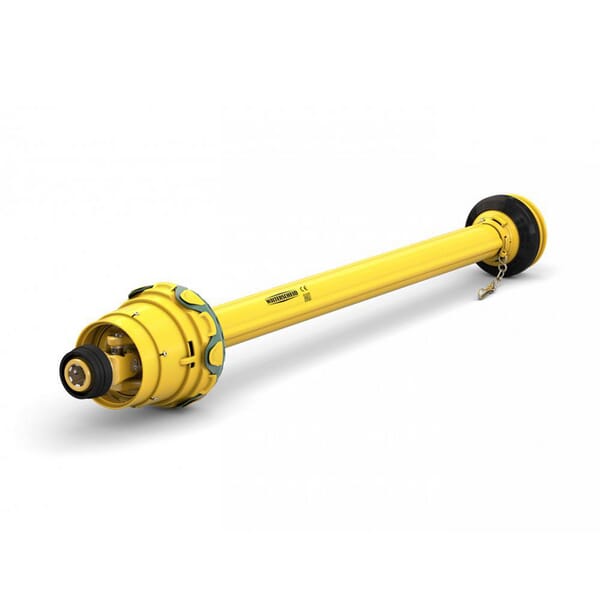

Walterscheid Wide angle PTO shaft WWE 2380 L: 860mm, WWE2380860
£762.34 excl.
£914.81 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000078397
Walterscheid Yoke, Flange, W2700/P700 277300
£699.44 excl.
£839.33 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400708
Walterscheid PTO shaft W200E L: 1210mm, W200E1210
£281.83 excl.
£338.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000040485

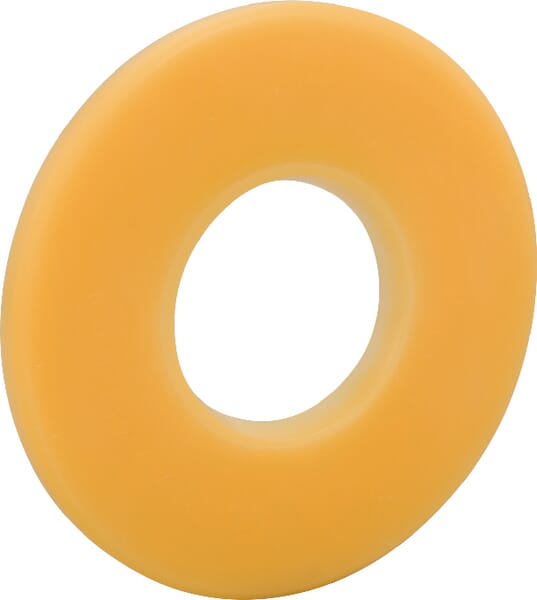

Walterscheid Seal ring 1195644
£68.47 excl.
£82.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000053742

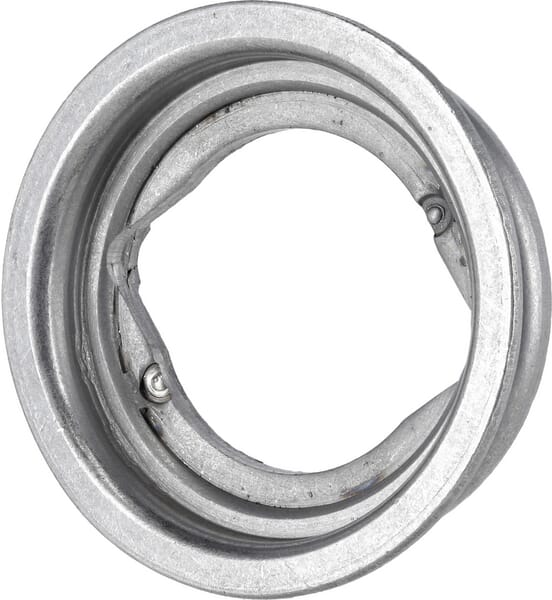

Walterscheid Change-ring 0a SC-05 166006
