£762.34
excl. VAT
£914.81 incl. VAT
£914.81
incl. VAT
£762.34 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | OvGA |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800093 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1G |
| Outer tube wall thickness | 2.7 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Protection type | ST15 |
| Size code | WWE 2380 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16700 g |
| Dimensions | 1080 × 205 × 205 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146676
Walterscheid Cam clutch K64/22R 5912743200
£1,459.52 excl.
£1,751.42 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000400901
Walterscheid PTO shaft W300E L: 1210mm, W300E1210
£290.51 excl.
£348.61 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143237

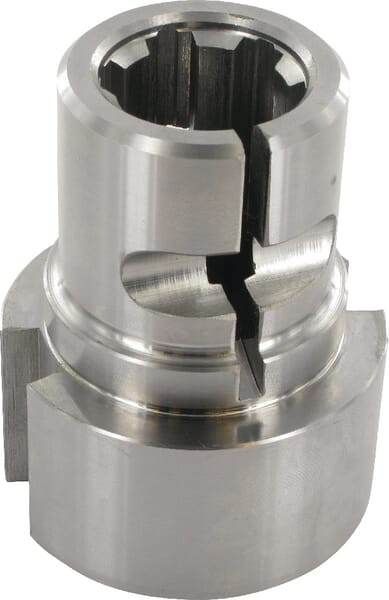

Walterscheid Hub F5/1 1.3/8 for clampbolt 561914
£199.41 excl.
£239.29 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000033902

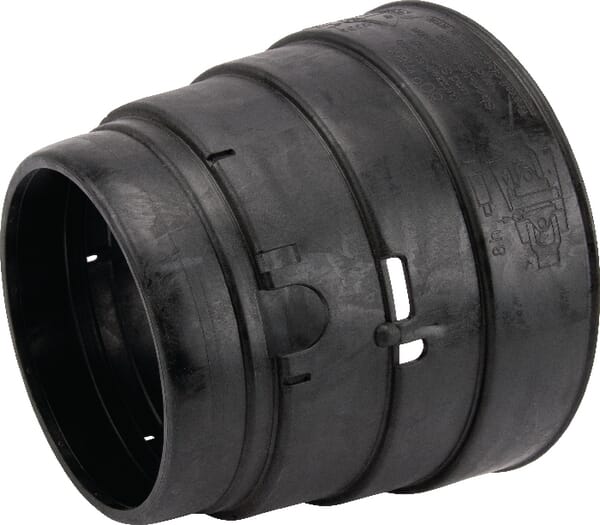

Walterscheid Guard cone 1172775
£39.16 excl.
£46.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400136
Walterscheid Wide angle PTO half shaft, inner WW 2380 L: 1210mm, WWZ23801210I
£727.41 excl.
£872.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178370

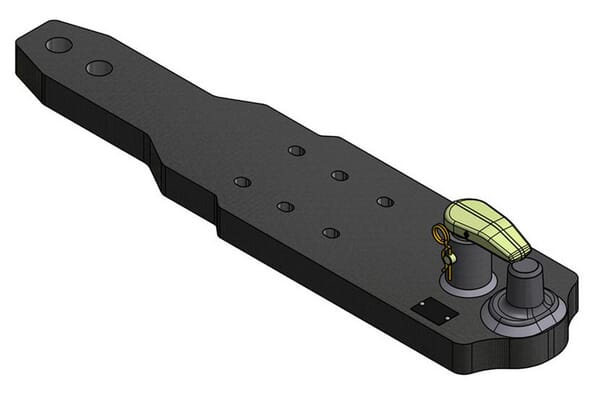

Walterscheid Carry plate 8005344
