£1,033.26
excl. VAT
£1,239.91 incl. VAT
£1,239.91
incl. VAT
£1,033.26 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Inner tube profile | S5H |
| Length | 860 mm |
| Max static torque | 7800 N·m |
| Original number equivalent | 1113133 |
| Outer tube profile | S6 |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD35 |
| Size code | W2600 |

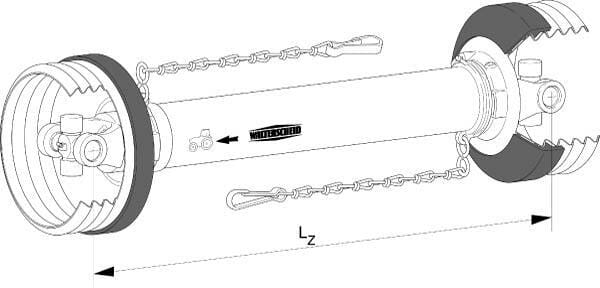

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194174145 |
|---|---|
| Unit of measure | EA |
| Weight | 22600 g |
| Dimensions | 930 × 190 × 190 mm |
| Dangerous goods | No |
