£707.65
excl. VAT
£849.18 incl. VAT
£849.18
incl. VAT
£707.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Slurry tank, Crop sprayers, Fertiliser spreader, Hay press |
|---|---|
| Attachment machine side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by machine side - longer part | 24 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by machine side - longer part | 91 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |

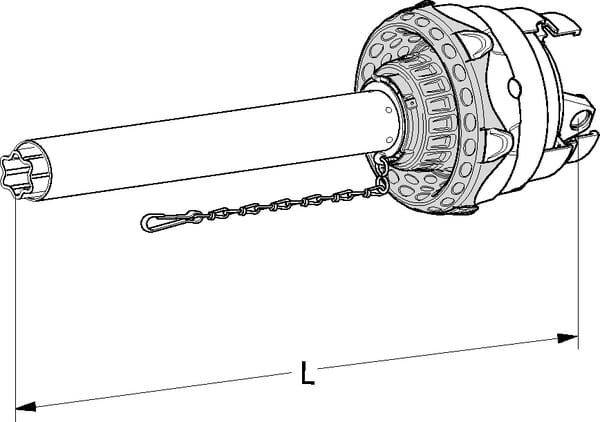

| Length | 1014 mm |
| Locking type by machine side | Wide angle without UJ |
| Long description | Wide-angle CV PTO drive shafts complete 80° series WW 2380 / 80° (outer) |
| Original number equivalent | 1113201 |
| Outer tube profile | 1 |
| Properties | Device side 1-3/8" Z6 slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | SD15 |
| Size code | WW 2380 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9450 g |
| Dimensions | 1080 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143067
Walterscheid Friction clutch W2600 K96/4 210-daNm 5613351210
£1,375.02 excl.
£1,650.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146849

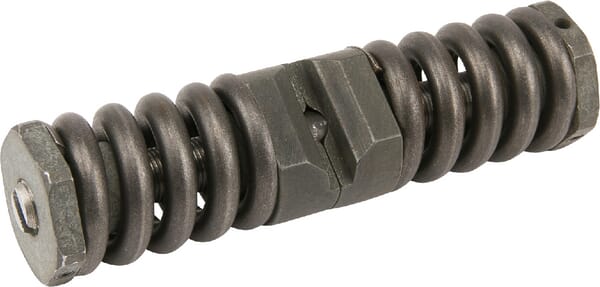

Walterscheid K64/2 Spring set 160 daNm 592501160
£218.48 excl.
£262.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144232
Walterscheid Flange hub K90 1.3/8-21 spline 569006
£484.33 excl.
£581.20 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000172644
Walterscheid Profile tube star S4 diameter out: 51x37mm L: 2.9m 754400
£465.49 excl.
£558.59 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000077880

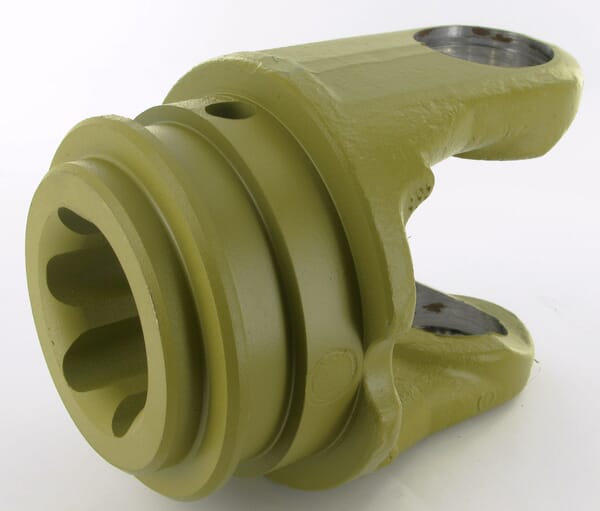

Walterscheid Yoke, Profile tube, 51mm, W2600 2613100
