£2,556.60
excl. VAT
£3,067.92 incl. VAT
£3,067.92
incl. VAT
£2,556.60 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Attachment machine side | Clamp yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint bush diameter by tractor side - longer part | 36 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Cross joint length by tractor side - longer part | 124 mm |
| Inner tube large outside diameter | 61 mm |
| Inner tube profile | S5H |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 7800 N·m |
| Original number equivalent | 1113330 |
| Outer tube large outside diameter | 71.5 mm |
| Outer tube profile | S6H |
| Outer tube wall thickness | 5 mm |
| Power 1000 rpm | 158 kW |
| Power 540 rpm | 103 kW |
| Profile tube shape | Star |
| Protection type | PG25 |
| Size code | PWE 675 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 44340 g |
| Dimensions | 1445 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092561

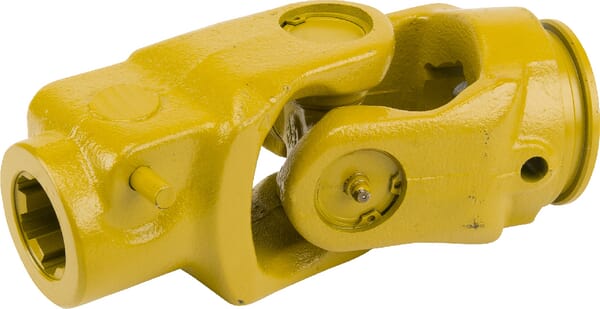

Walterscheid Single joint 3510003513100
£219.69 excl.
£263.63 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000068576
Walterscheid Single joint 208330201100
£159.98 excl.
£191.98 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095368
Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2580 3683110M
£297.98 excl.
£357.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144891

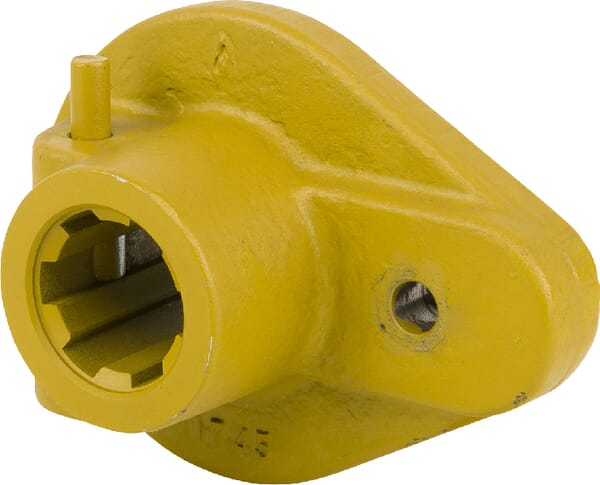

Walterscheid KB61/20 Hub 1.3/8-6 M10 rad.48 572724
£273.41 excl.
£328.09 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000092840

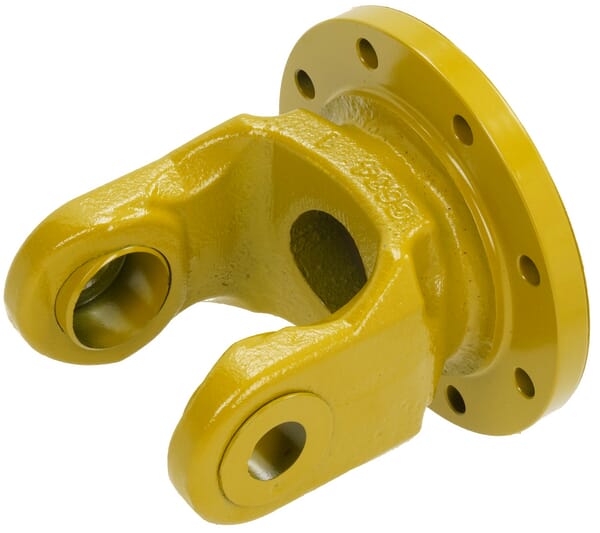

Walterscheid Yoke, Flange, W2400/P400/W400E 352700
£170.97 excl.
£205.16 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000242658

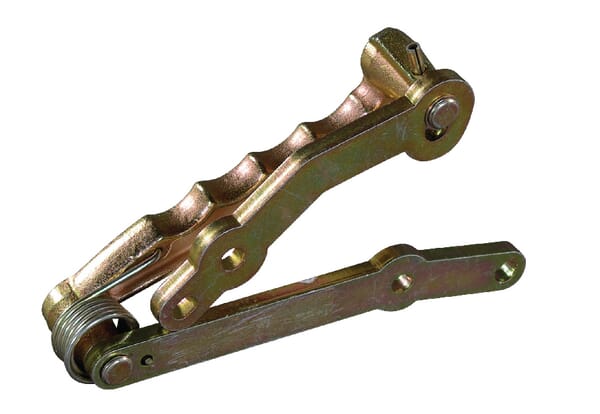

Walterscheid Adjustment rod complete. for KU2000 CK23091026
