£1,928.08
excl. VAT
£2,313.70 incl. VAT
£2,313.70
incl. VAT
£1,928.08 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 860 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Long description | PTO drive shafts complete 80° series PWE 580-S4LGAS5 |
| Max static torque | 6000 N·m |
| Original number equivalent | 1147782 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 117 kW |
| Power 540 rpm | 76 kW |
| Profile tube shape | Star |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 580 |

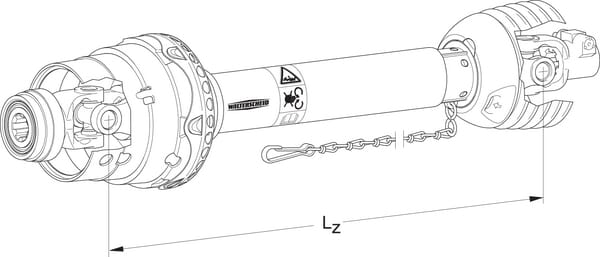

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342474
Walterscheid Wide angle PTO shaft PWE580 L:910mm PWE580910B361830
£1,947.73 excl.
£2,337.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000092702
Walterscheid Yoke, Profile tube, 61mm, W2400/P400 3514100
£91.90 excl.
£110.28 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000098450
Walterscheid Yoke, Quick disconnect, 1-3/8"-21 spline, W2400/P400/W400E 358302
£214.76 excl.
£257.71 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356765
Walterscheid PTO outer half guard SD05 diameter 135 tube diameter 57/52.5, L: 1500mm SD051500A
£64.67 excl.
£77.60 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000041986
Walterscheid Bush 1308454
£14.90 excl.
£17.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000040484

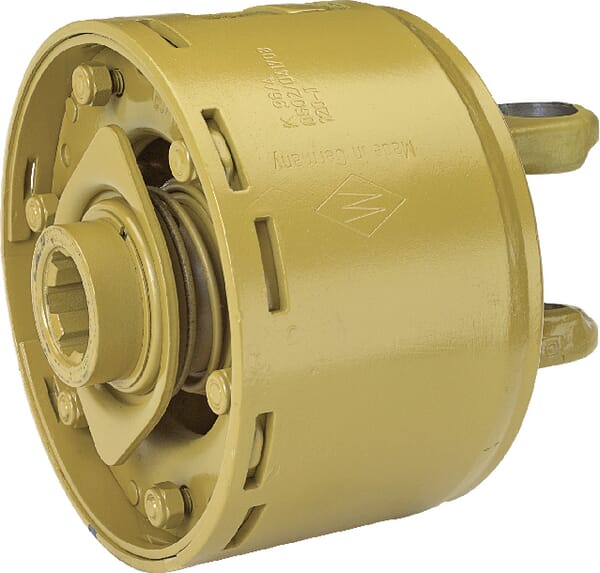

Walterscheid Friction clutch 1195622
