£874.66
excl. VAT
£1,049.59 incl. VAT
£1,049.59
incl. VAT
£874.66 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | PTO half shaft with shielding, Declaration of conformity, Instruction manual, Supplied without yoke and joint cross |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Includes | Half PTO shaft with guard, Declaration of conformity, User instructions, Supplied without yoke and cross piece |
| Inner tube profile | S4GA |
| Length | 1014 mm |
| Locking type by tractor side | Wide angle without UJ |
| Long description | Wide-angle PTO shaft assembly 80° series WW 2580 / 80° (male) suitable for wide spreader, fertiliser machine, big baler and silage wagon etc. |
| Original number equivalent | 1113199 |
| Product details | Half PTO shaft with guard, Declaration of conformity, User instructions, Supplied without yoke and cross piece, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25º, Angle may be 80º only briefly, Max. dyn. power 540 rpm: 66kW - 1175Nm, Max. dyn. power 1000 rpm: 102kW - 975Nm, Values at bending angle 10° and service life 1000 hours |
| Properties | Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WW 2580 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18800 g |
| Dimensions | 1170 × 255 × 255 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000075736
Walterscheid Yoke, Profile tube, 61x47mm, P700 271330HE
£470.13 excl.
£564.16 incl.
In stock
Expected to ship on Thursday 17 September
BPA000045139
Walterscheid Grease nipple 1380371
£6.28 excl.
£7.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051593

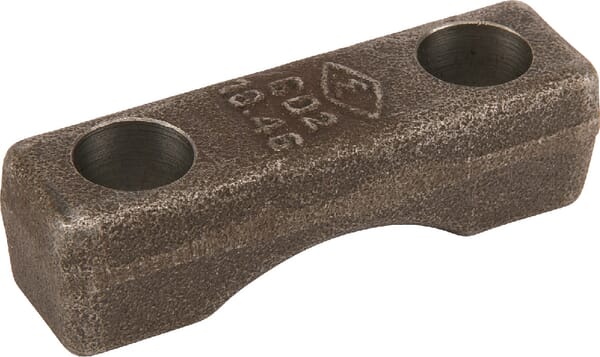

Walterscheid Bridge clamp 162099
£32.14 excl.
£38.57 incl.
In stock
Expected to ship on Thursday 17 September
BPA000188487
Walterscheid Guard safety chain 600mm 823608
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000400804
Walterscheid PTO shaft W2300 L: 1210mm, W23001210
£567.32 excl.
£680.78 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000098380

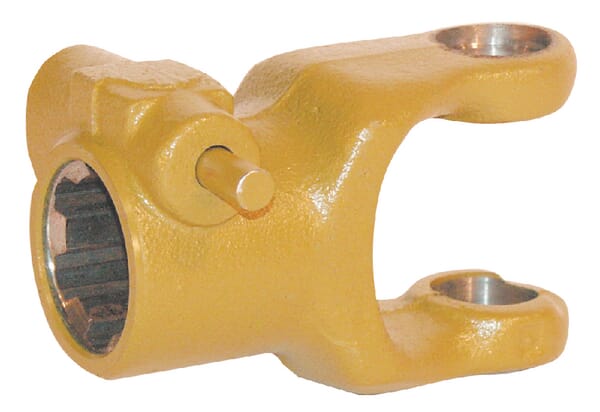

Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2400/P400/W400E 3579106
