£1,042.36
excl. VAT
£1,250.83 incl. VAT
£1,250.83
incl. VAT
£1,042.36 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Loader wagons |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |

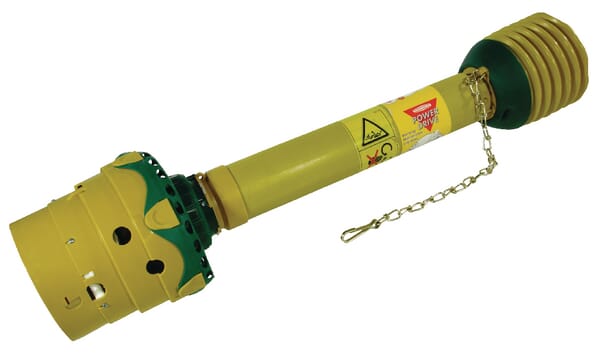

| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes, Delivered without cross journal on the wide angle side |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | 1bGA |
| Length | 1210 mm |
| Original number equivalent | 1113259 |
| Outer tube profile | 2aG |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWE 480 |

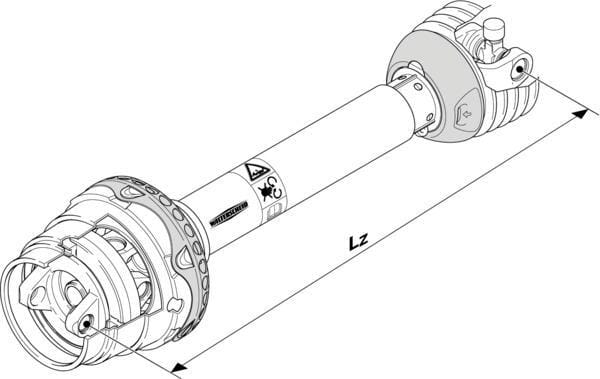

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | 8435194172578 |
|---|---|
| Unit of measure | EA |
| Weight | 22800 g |
| Dimensions | 1380 × 240 × 240 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400598
Walterscheid PTO shaft W100E L: 710mm, W100E710
£205.49 excl.
£246.59 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000030072
Walterscheid Guard cone 1119843
£115.74 excl.
£138.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000084563

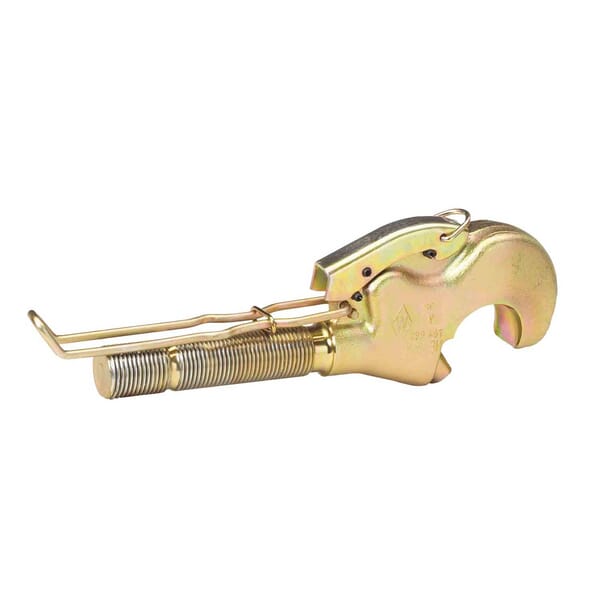

Walterscheid Toplink hook 308276
£987.09 excl.
£1,184.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000034732
Walterscheid PTO outer half guard, L: 1500mm 1183315
£130.27 excl.
£156.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000066719
Walterscheid Clutch yoke K90TF 2173102
£194.49 excl.
£233.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000042027
Walterscheid Centre tube 1309692
£129.31 excl.
£155.17 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000245381

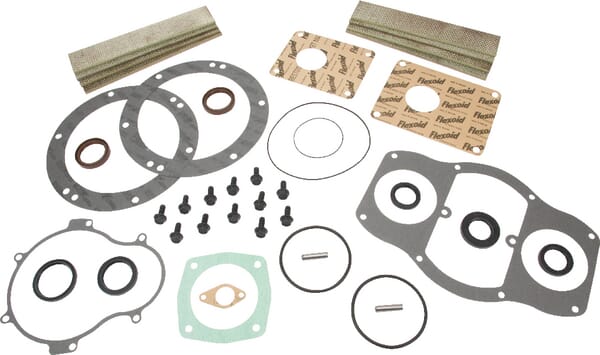

Battioni Pagani Repair kit MEC9000B with Long Life vanes CM7KITB
£607.49 excl.
£728.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000065147

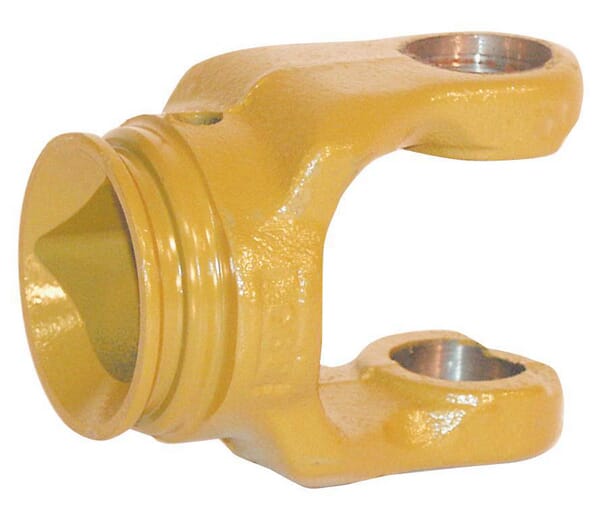

Walterscheid Yoke, Profile tube, 41mm, W2200/W200E 201200
£55.96 excl.
£67.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109787
Kramp Oil seal 40x68x10mm type:CC DIN 3760 10x 406810CCP010
£16.57 excl.
£19.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000220164
Kverneland / Accord Pipe sleeve 6x1 stainless steel A2 AC489400
£10.90 excl.
£13.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341816

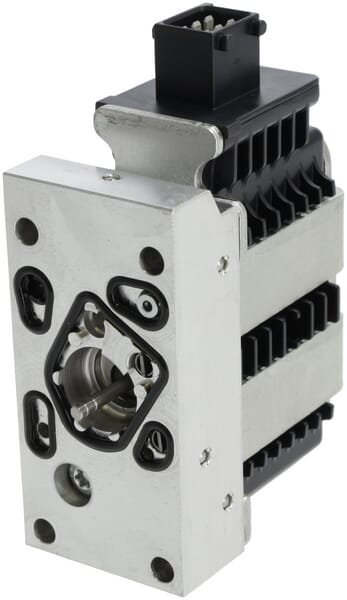

Danfoss Magn PVEH-F 11-32V Act AMP 6P PVG3211168739
£1,107.16 excl.
£1,328.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000149375
Kramp DEUTZ-FAHR 06 series green upto 75 400ml 612004KR
£11.63 excl.
£13.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000270820
Kramp Blade L: 552mm, round hole: diameter 15.9 suitable for AYP by FGP011088
£29.76 excl.
£35.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340476
Casappa Tie bolts Polaris 10 M8x120 PLP910M8120
£32.71 excl.
£39.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144632

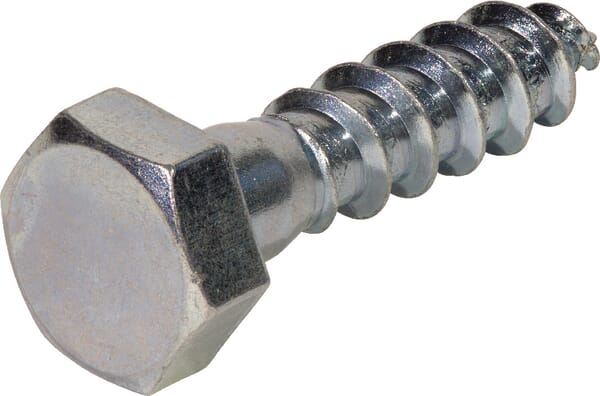

Kramp Wood screw 6x70mm, 10mm hex head, DIN 571 571670P100
