£1,742.64
excl. VAT
£2,091.17 incl. VAT
£2,091.17
incl. VAT
£1,742.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft wide angle, 2 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by machine side - longer part | 27 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | 1bGA |
| Length | 1210 mm |
| Original number equivalent | 1113263 |
| Outer tube profile | 2aG |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWZ 480 |

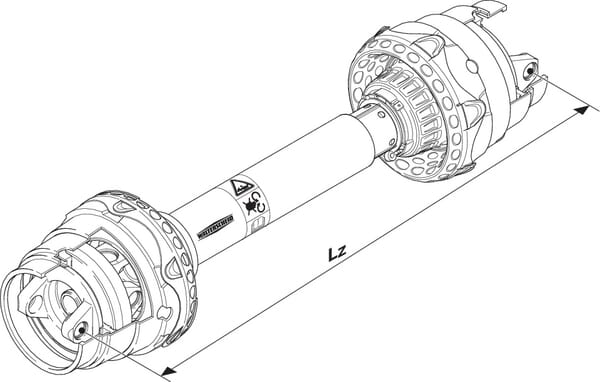

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | 8432970202870 |
|---|---|
| Unit of measure | EA |
| Weight | 27700 g |
| Dimensions | 1300 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000172371
Walterscheid Profile tube coated lemon 2aG diameter in: 50.5 diameter out: 57.5x48x3.5mm L: 1.4m 7536001400
£114.18 excl.
£137.02 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000363756
Walterscheid Guard half inner ST25 flex ST251500IFLEX
£157.98 excl.
£189.58 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000144351
Walterscheid Shearbolt clutch K61/1 5710012
£522.79 excl.
£627.35 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000172256

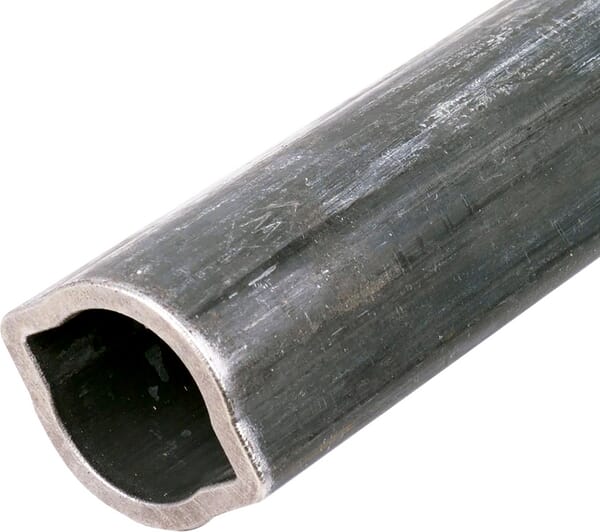

Walterscheid Profile tube hardened lemon 1bH diameter in: 40 diameter out: 49x39.5x4.5mm L: 1.4m 75251861400
£220.93 excl.
£265.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000045076
Walterscheid Protective cup 1378019
£90.07 excl.
£108.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144881

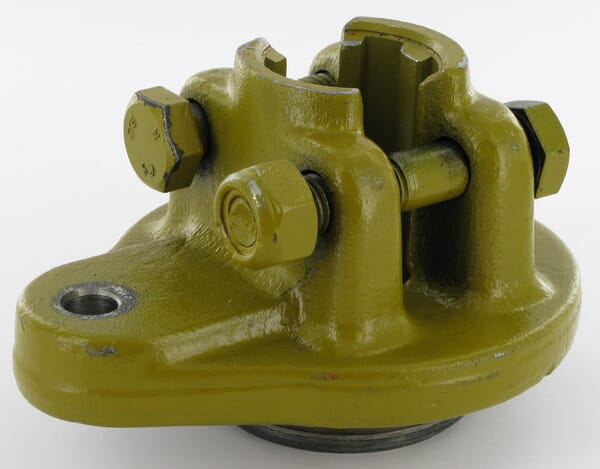

Walterscheid Extension 1.3/8-6 M10 R60 572602
