£2,361.80
excl. VAT
£2,834.16 incl. VAT
£2,834.16
incl. VAT
£2,361.80 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Original number equivalent | 1113265 |
| Outer tube profile | S5 |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWZ 580 |

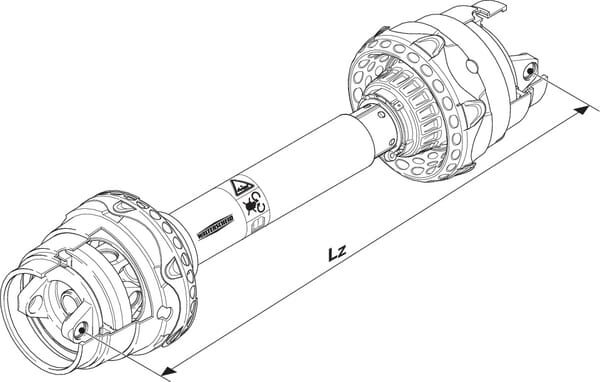

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | 8432970202443 |
|---|---|
| Unit of measure | EA |
| Weight | 36400 g |
| Dimensions | 1400 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
BPA000172164
Walterscheid Profile tube lemon 1 diameter in: 42 diameter out: 48x41x3mm L: 2.8m 751500
£93.22 excl.
£111.86 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000356916

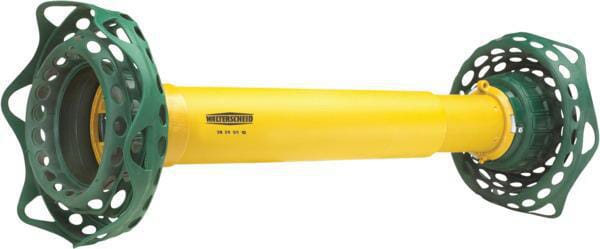

Walterscheid Guard complete wide-angle WWZ series SD15 with flexo funnels SD151000WWZFLEX
£224.97 excl.
£269.96 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000084369

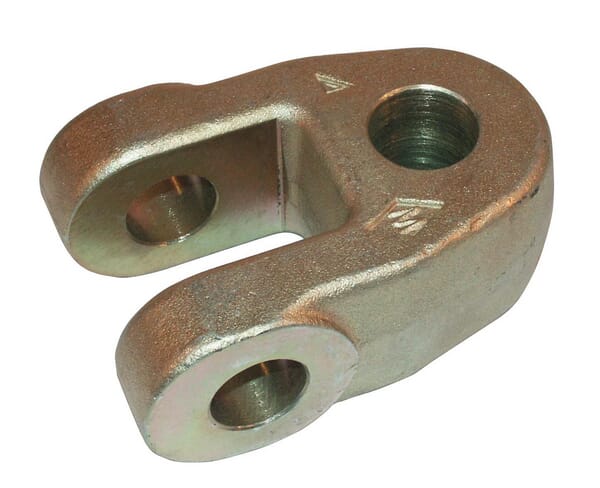

Walterscheid Fork head 28.2x63mm 306406
£133.56 excl.
£160.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000144253
Walterscheid Drive plate K90/4 569300
£38.41 excl.
£46.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000040485

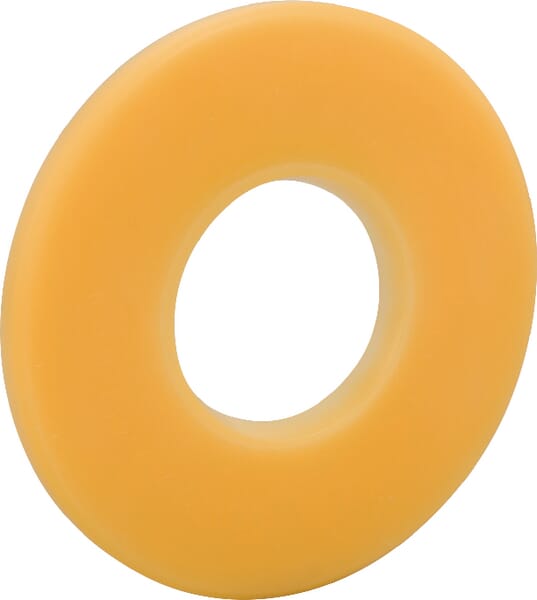

Walterscheid Seal ring 1195644
