£809.03
excl. VAT
£970.84 incl. VAT
£970.84
incl. VAT
£809.03 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Slurry tank, Crop sprayer, Fertiliser spreaders, Hay baler |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes, Delivery without cross journal on the wide-angle side |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube profile | OvGA |
| Length | 1210 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 2350 N·m |
| Original number equivalent | 1800107 |
| Outer tube profile | 1G |
| Properties | Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WWE 2380 |

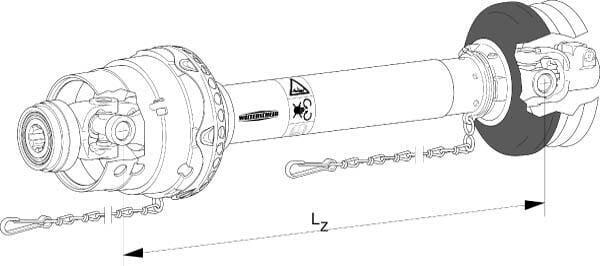

| Technical info | Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 1310 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
BPA000184592

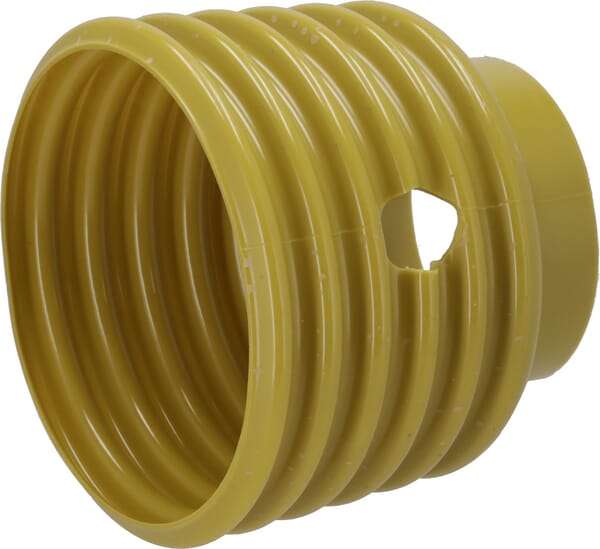

Walterscheid Guard cone SC22 RP 6 841006
£14.89 excl.
£17.87 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000143245

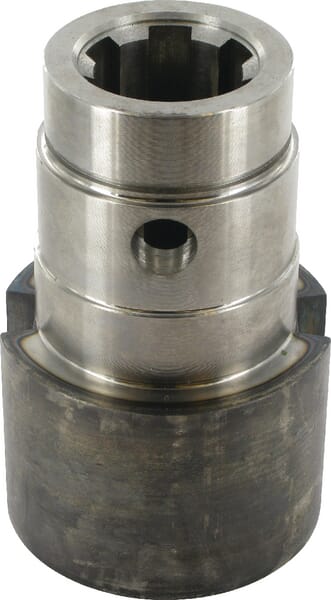

Walterscheid Hub FK96/4 1.3/8-6 quick disc. 561937
£397.72 excl.
£477.26 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000140516

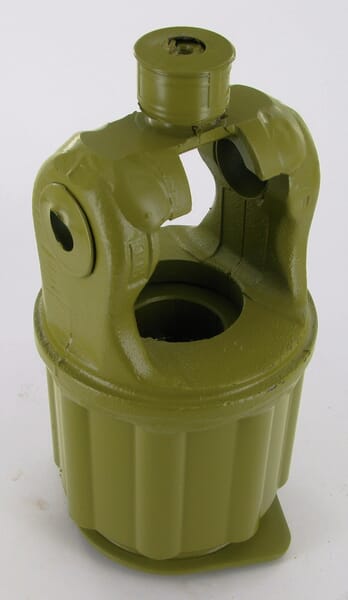

Walterscheid Clutch K33B 2380 1-3/8 6spl 556740390
£524.54 excl.
£629.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092675

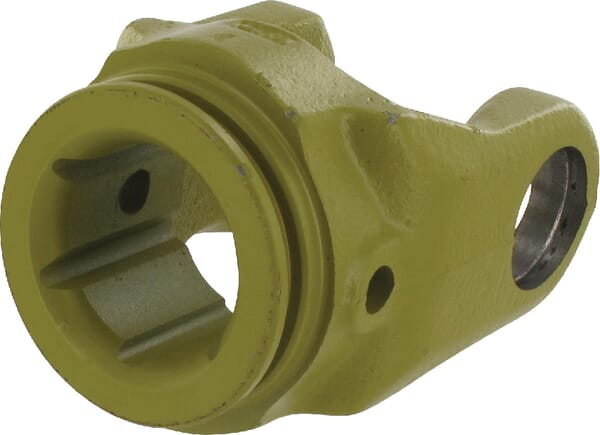

Walterscheid Yoke, Profile tube, 51mm, W2400/P400 3513100
£104.53 excl.
£125.44 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000042883

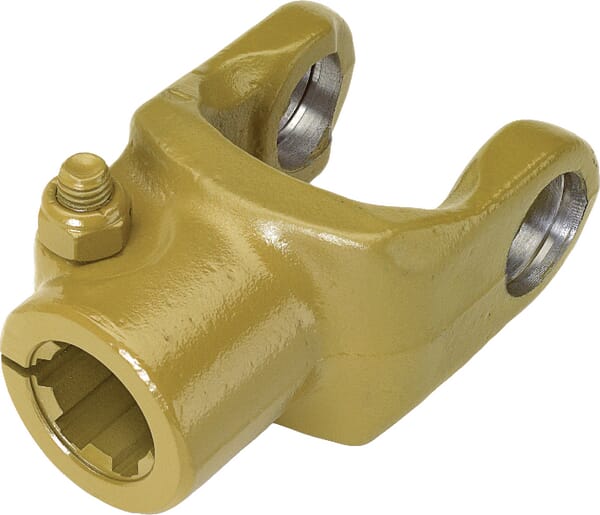

Walterscheid Yoke, Clamp bolt, 35mm, W2200/W200E 1329012
£155.14 excl.
£186.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000052303

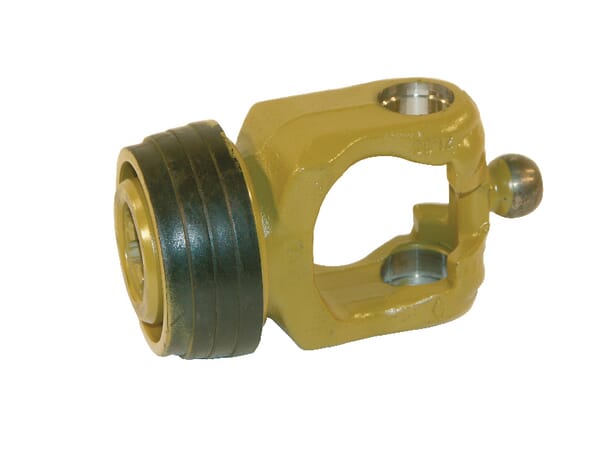

Walterscheid Yoke, Quick disconnect, 38x32mm -8 spline, W2480 1601185
