SKU BPA000400127 · Part No WWE2580860OG

Walterscheid Wide angle PTO shaft without yokes WWE 2580 L: 860mm, WWE2580860OG

Name: Wide angle PTO shaft without yokes WWE 2580 L: 860mm, Walterscheid
Brand: Walterscheid
SKU: BPA000400127
Price: 1597.32 GBP
Availability: BackOrder

Application range	Broad spreader, Slurry wagon, Big baler, Silage wagon
Attachment machine side	n/a
Attachment tractor side	n/a
Consists of	Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	36 mm
Cross joint bush diameter by tractor side	36 mm
Cross joint bush diameter by tractor side - longer part	32 mm
Cross joint length by machine side	89 mm
Cross joint length by tractor side	89 mm
Cross joint length by tractor side - longer part	106 mm
Inner tube profile	S4GA
Length	860 mm
Max static torque	6000 N·m
Original number equivalent	1800113
Outer tube profile	S5
Properties	Tractor side 1-3/8" Z6 shaft collar kit, Device side 1-3/8" Z6 slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available
Protection type	SD25
Size code	WWE 2580

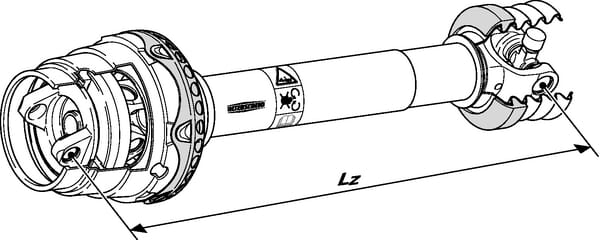

Technical info	Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection
Unit	Each

EAN	—
Unit of measure	EA
Weight	28000 g
Dimensions	941 × 250 × 250 mm
Dangerous goods	No

Walterscheid Wide angle PTO shaft without yokes WWE 2580 L: 860mm, WWE2580860OG
