£1,391.12
excl. VAT
£1,669.34 incl. VAT
£1,669.34
incl. VAT
£1,391.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1bGA |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2500 N·m |
| Max static torque | 4000 N·m |
| Original number equivalent | 1691812 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2aG |
| Outer tube wall thickness | 3.5 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Lemon |
| Protection type | SD25 |
| Size code | WWE 2480 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 26000 g |
| Dimensions | 1550 × 235 × 235 mm |
| Dangerous goods | No |
You might also like
BPA000044818
Walterscheid Disc spring 1304164
£45.57 excl.
£54.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000146818

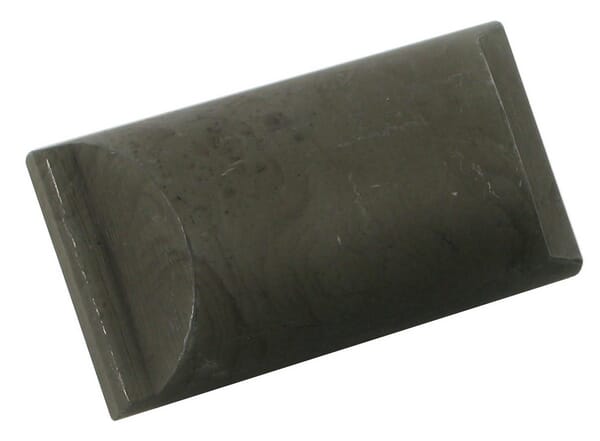

Walterscheid K64/2 Cam 592300
£89.05 excl.
£106.86 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000066853

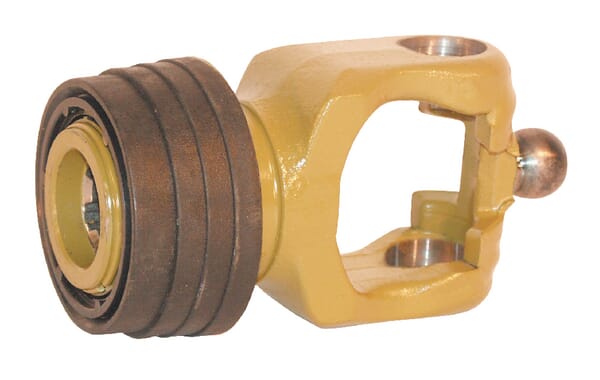

Walterscheid Yoke, quick disconnect, 1-3/4"-20 spline, W2380 2184812
£597.76 excl.
£717.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044974

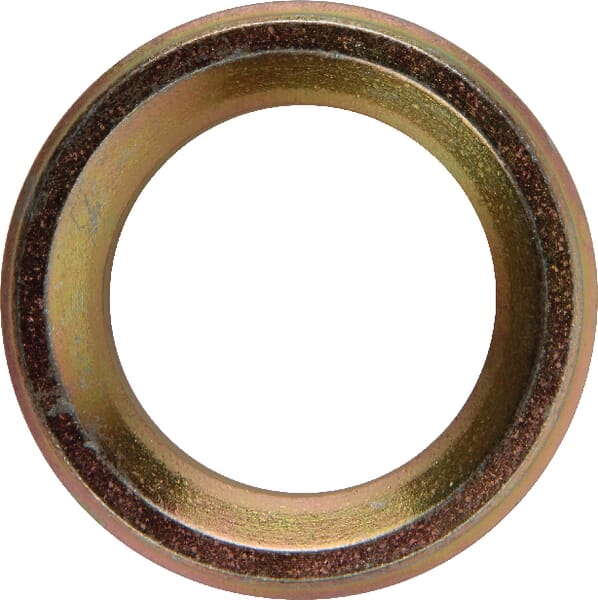

Walterscheid Guide ring 1308144
