£1,281.08
excl. VAT
£1,537.30 incl. VAT
£1,537.30
incl. VAT
£1,281.08 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Slurry tank, Crop sprayers, Fertiliser spreader, Hay press |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by machine side - longer part | 24 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by machine side - longer part | 91 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | OvGA |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |

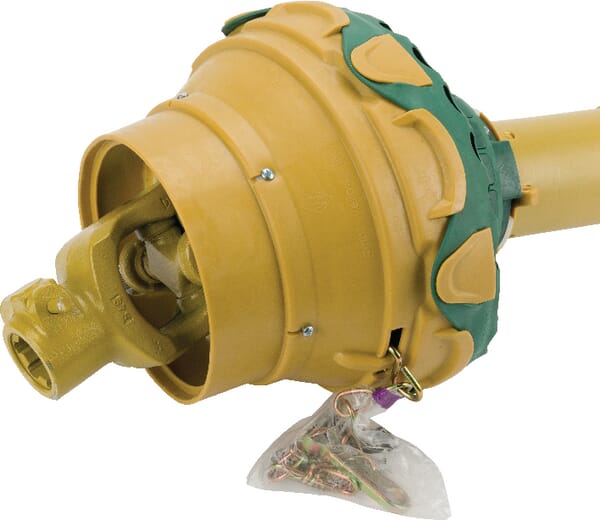

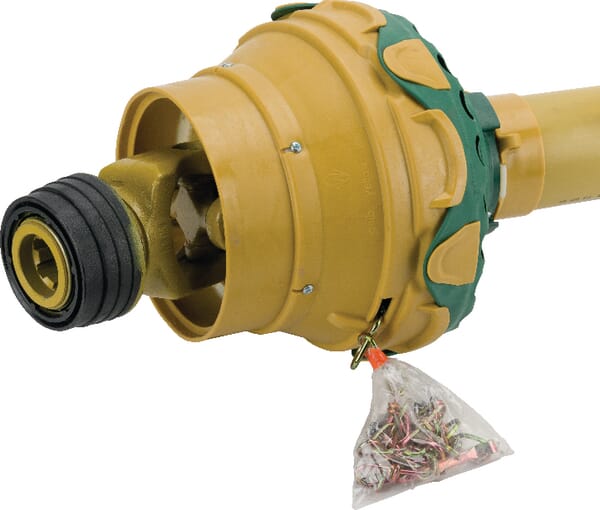

| Long description | Wide-angle CV PTO drive shafts complete 80° series WWZ 2380 / 80° |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800117 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1G |
| Outer tube wall thickness | 2.7 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST15 |
| Size code | WWZ 2380 |

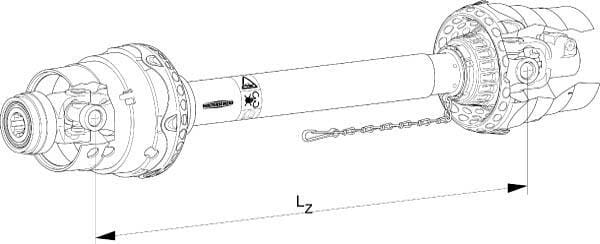

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20800 g |
| Dimensions | 1200 × 205 × 205 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065583

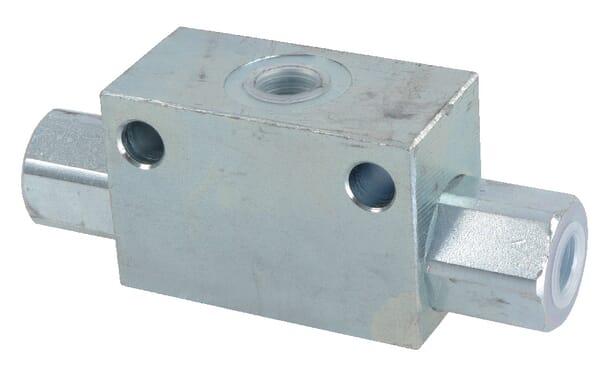

Walterscheid Piloted valve for HGST 202997
£162.26 excl.
£194.71 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000400809

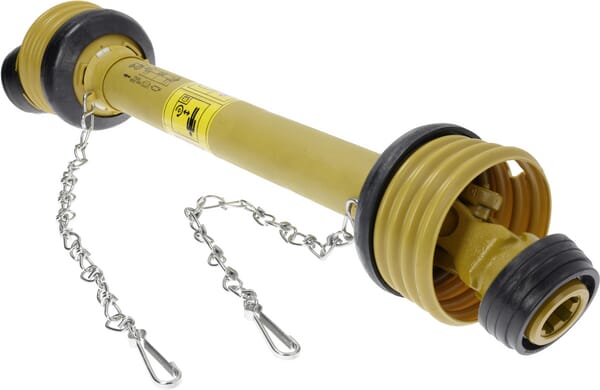

Walterscheid PTO shaft W2300 L: 560mm, W2300560
£420.39 excl.
£504.47 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000067127

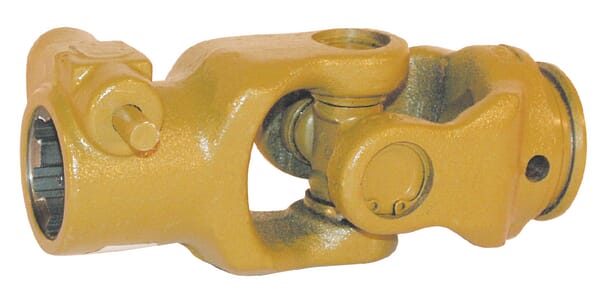

Walterscheid Single joint 2110002122101
£178.75 excl.
£214.50 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000068583

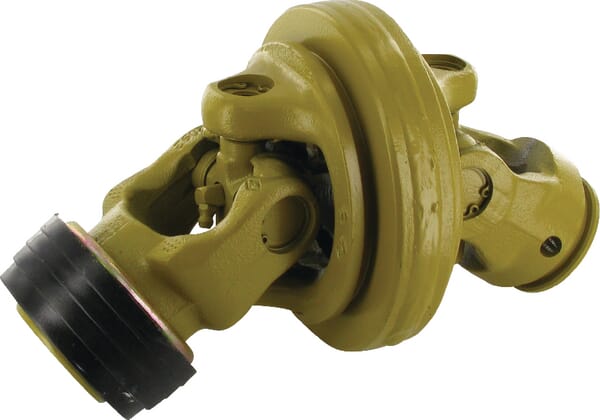

Walterscheid Wide-angle cv joint 80° 20838302011810
£581.25 excl.
£697.50 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000141710

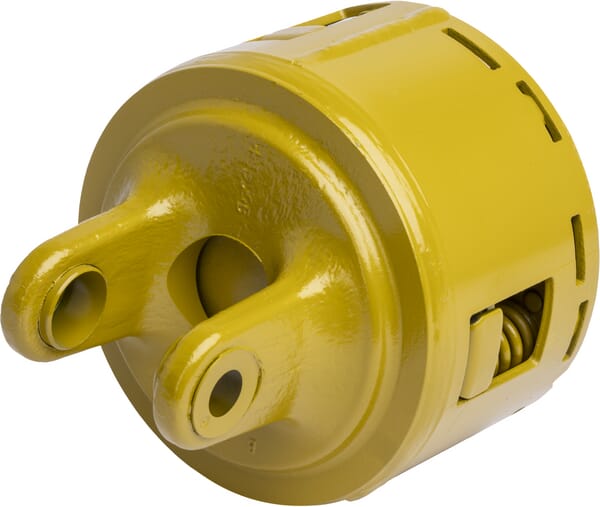

Walterscheid Friction clutch W2400 FK96/4R 120daNm 5810951120
£1,273.99 excl.
£1,528.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178358

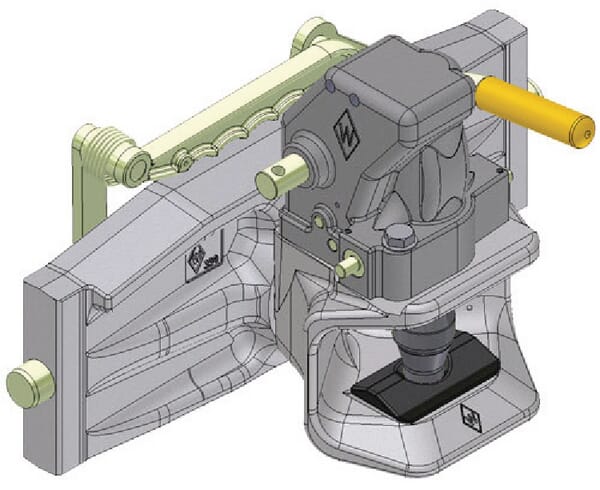

Walterscheid Trailer coupling 389mm 8005155
