£1,273.99
excl. VAT
£1,528.79 incl. VAT
£1,528.79
incl. VAT
£1,273.99 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |

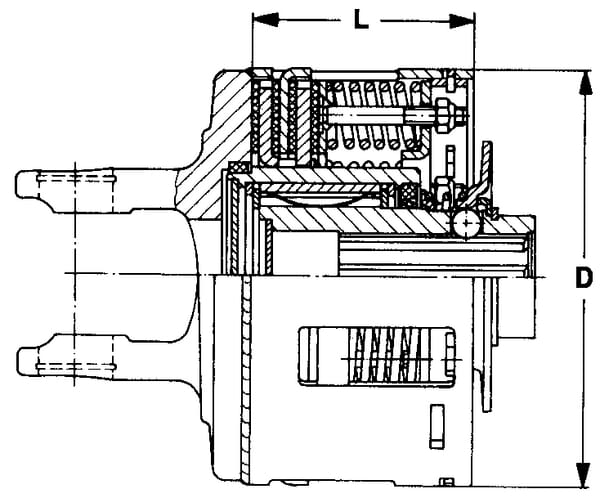

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |

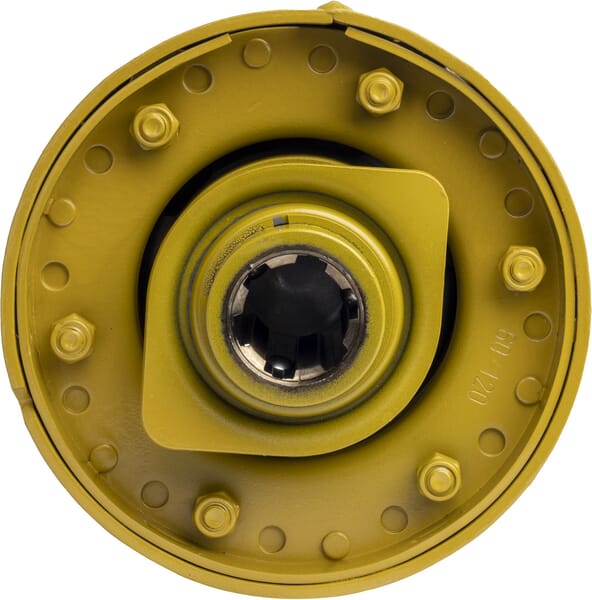

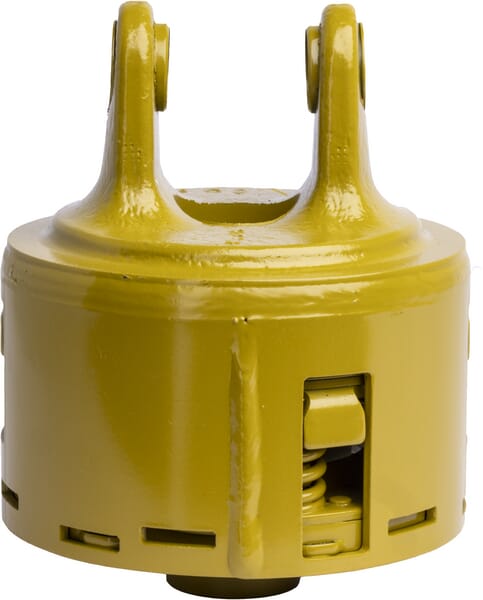

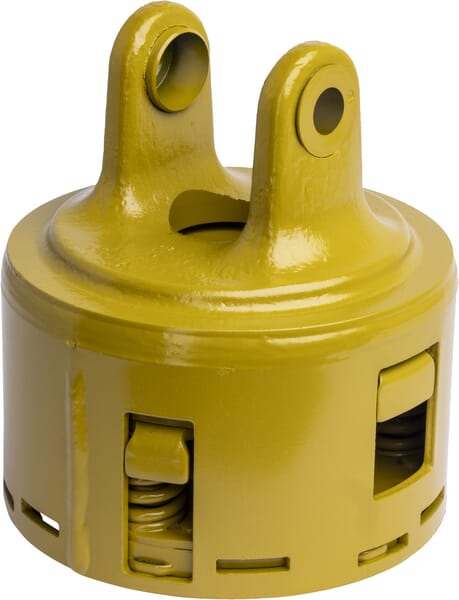

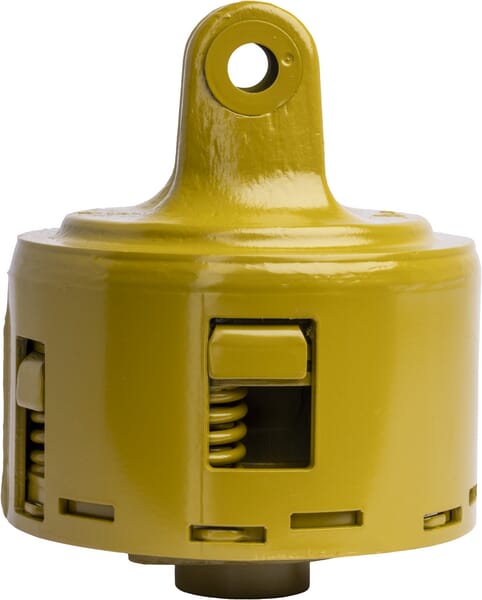

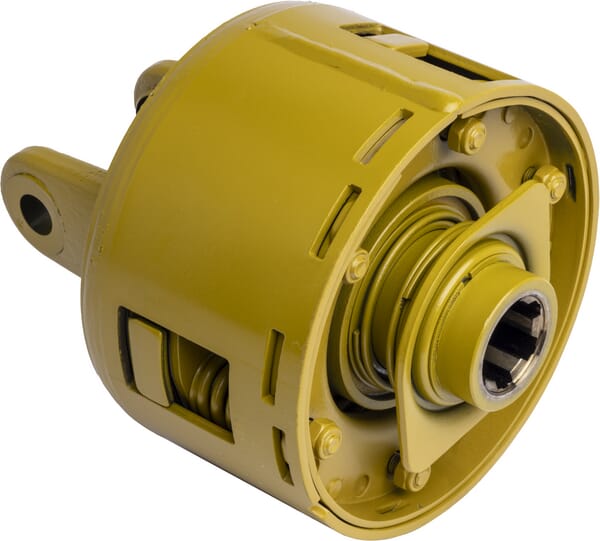

| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1200 N·m |
| Original number equivalent | 1170019 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Claas |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194019200 |
|---|---|
| Unit of measure | EA |
| Weight | 11295 g |
| Dimensions | 267 × 218 × 209 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000076604

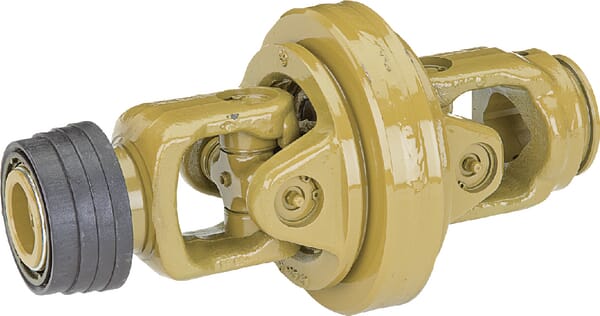

Walterscheid Wide-angle cv joint P675 - S5 268462261361
£1,747.28 excl.
£2,096.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400157

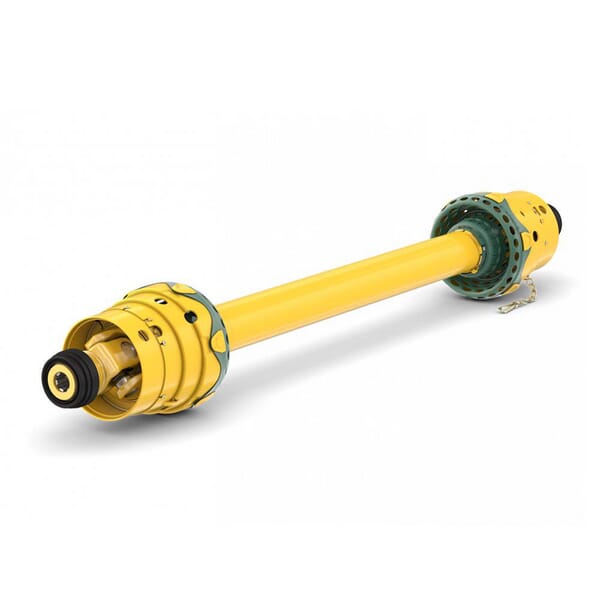

Walterscheid Wide angle PTO shaft WWZ 2580 L: 860mm, WWZ2580860
£1,574.22 excl.
£1,889.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146915
Walterscheid K64/22 Spring set 250daNm 592704250
£146.51 excl.
£175.81 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400099
Walterscheid Wide angle PTO shaft WWE 2280 L: 860mm, WWE2280860
£829.88 excl.
£995.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000150141

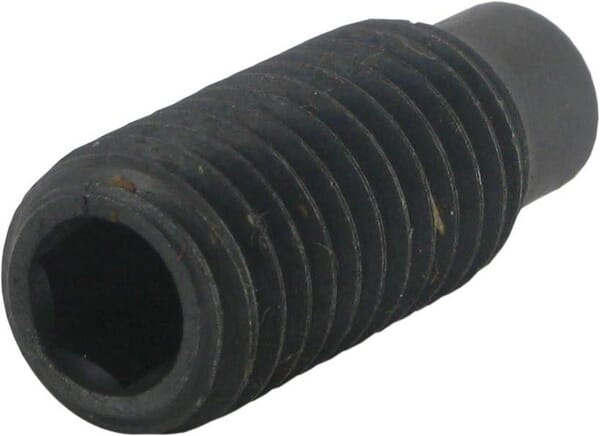

Walterscheid Screw 600644
