SKU BPA000400142 · Part No WWZ24801210

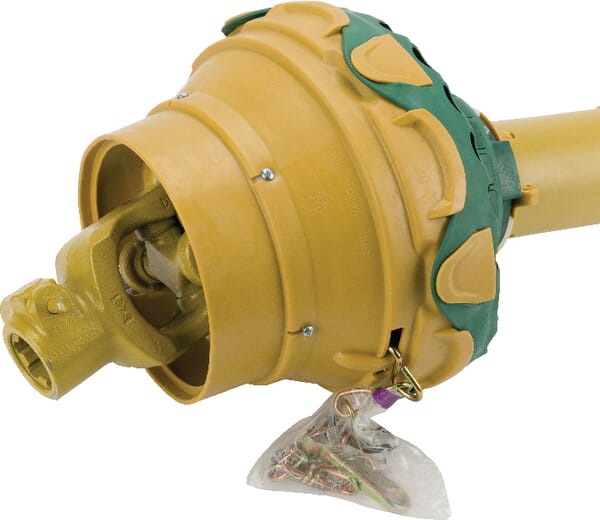

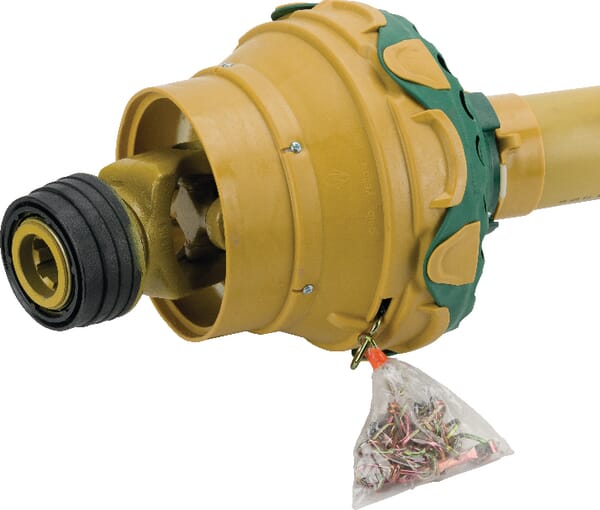

Walterscheid Wide angle PTO shaft WWZ 2480 L: 1210mm, WWZ24801210

Name: Wide angle PTO shaft WWZ 2480 L: 1210mm, Walterscheid
Brand: Walterscheid
SKU: BPA000400142
Price: 1905.11 GBP
Availability: InStock

Application range	Mixing wagon, Slurry wagon, Harvesters, Silage wagon
Attachment machine side	Quick disconnect yoke
Attachment tractor side	Quick disconnect yoke
Clutch type code	n/a
Connection outside diameter machine side inch and splines	1.3/8-6
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	32 mm
Cross joint bush diameter by machine side - longer part	27 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint length by machine side	76 mm
Cross joint length by machine side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint length by tractor side - longer part	94 mm
Inner tube large outside diameter	49 mm
Inner tube profile	1bGA
Inner tube wall thickness	4.5 mm
Length	1210 mm
Locking type by machine side	Collar lock
Locking type by tractor side	Collar lock
Long description	Wide-angle PTO shafts 80° series WWZ 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc.
Max static torque	4000 N·m
Original number equivalent	1800122
Outer tube large outside diameter	57.5 mm
Outer tube profile	2aG
Outer tube wall thickness	3.5 mm
Power 1000 rpm	61 kW
Power 540 rpm	39 kW
Product details	PTO shaft 2-sided wide-angle with safety guard, Declaration of conformity, User instructions, Tractor side 1-3/8" (6) collar fastening, Machine side 1-3/8" (6) spring pin, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 39kW - 695Nm, Max. dyn. power 1000 rpm: 61kW - 580Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross
Profile tube shape	Lemon
Properties	Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available
Protection type	ST25
Size code	WWZ 2480

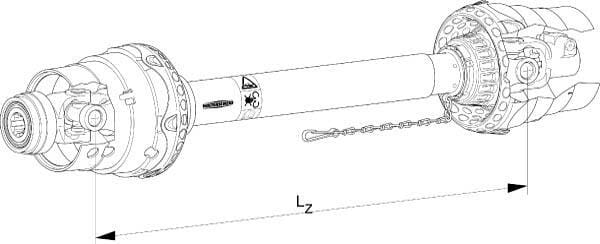

Technical info	Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection
Unit	Each

EAN	—
Unit of measure	EA
Weight	31600 g
Dimensions	1400 × 200 × 200 mm
Dangerous goods	No
