£1,528.50
excl. VAT
£1,834.20 incl. VAT
£1,834.20
incl. VAT
£1,528.50 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by machine side - longer part | 27 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1bGA |
| Inner tube wall thickness | 4.5 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Wide-angle PTO shafts 80° series WWZ 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc. |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800121 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2aG |
| Outer tube wall thickness | 3.5 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Product details | PTO shaft 2-sided wide-angle with safety guard, Declaration of conformity, User instructions, Tractor side 1-3/8" (6) collar fastening, Machine side 1-3/8" (6) spring pin, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 39kW - 695Nm, Max. dyn. power 1000 rpm: 61kW - 580Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST25 |
| Size code | WWZ 2480 |

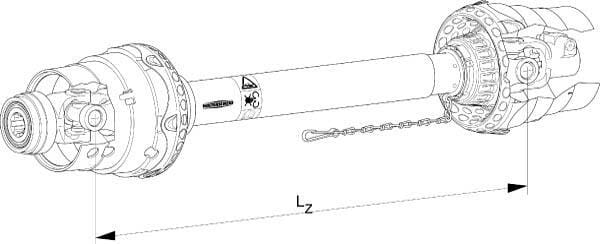

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28100 g |
| Dimensions | 1400 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000040407
Walterscheid Shear bolt / overrun clutch FKB 61/20R 1193242
£731.43 excl.
£877.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000020655
Walterscheid Cross journal diameter 22x55mm 2100 100102
£59.18 excl.
£71.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000062745

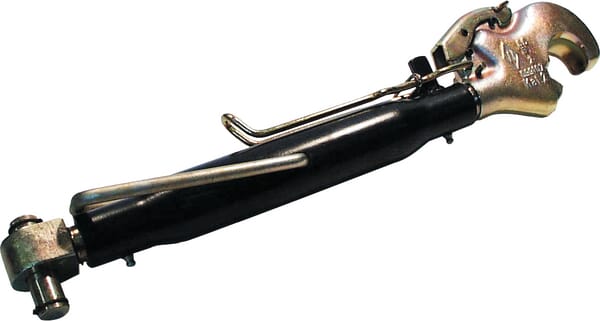

Walterscheid Toplink eye/hook 420, M30 cat.2/2 200189
