£2,013.12
excl. VAT
£2,415.74 incl. VAT
£2,415.74
incl. VAT
£2,013.12 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Locking type by machine side | Automatic collar lock |
| Locking type by tractor side | Automatic collar lock |

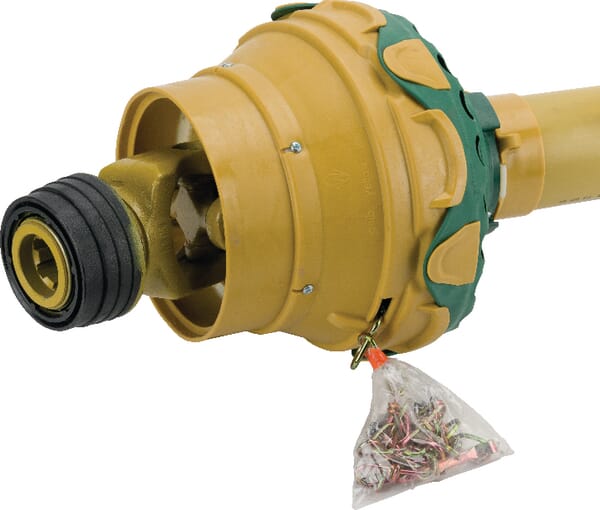

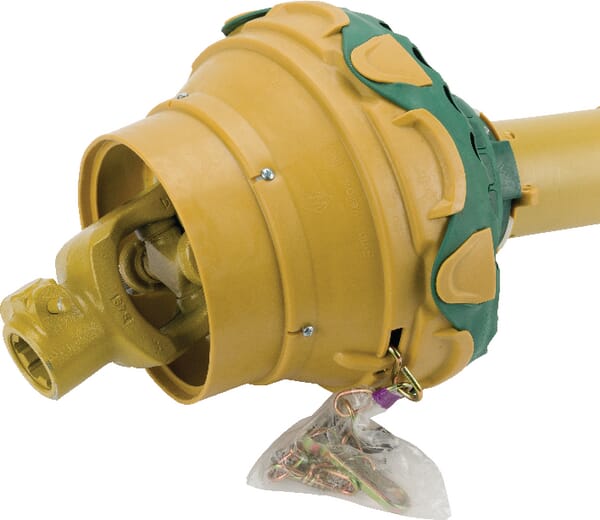

| Long description | Wide-angle CV PTO drive shafts complete 80° series WWZ 2580 / 80° |
| Max static torque | 6000 N·m |
| Original number equivalent | 1800126 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) clamp cone, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST25 |
| Size code | WWZ 2580 |

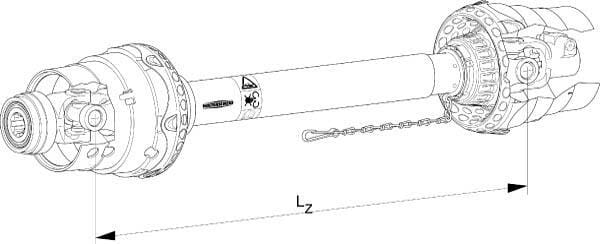

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42900 g |
| Dimensions | 1415 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000040937
Walterscheid Stabiliser 1203509
£2,450.15 excl.
£2,940.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356911

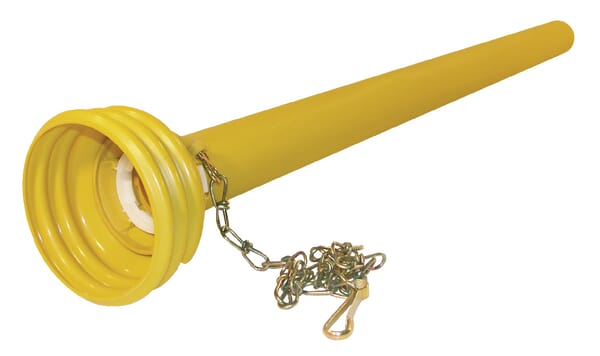

Walterscheid PTO inner half guard SD15, L: 1,000mm SD151000IWWZ
£67.13 excl.
£80.56 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178197

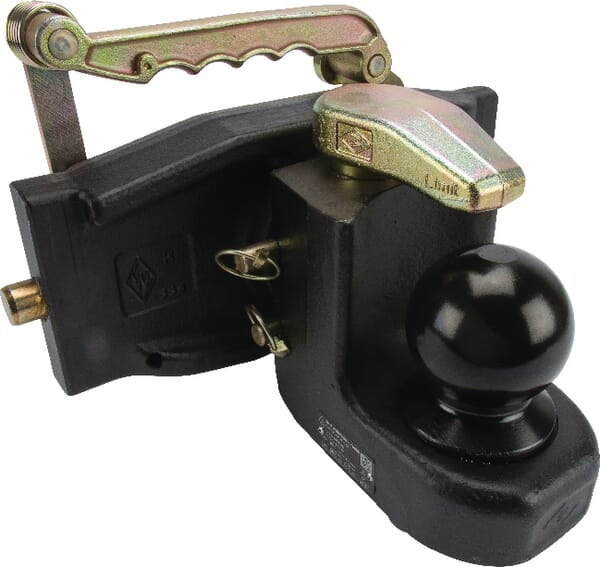

Walterscheid Trailer Coupling Ball coupling 80 mm 8002590
£1,804.75 excl.
£2,165.70 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095410
Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2580 368410M
£498.69 excl.
£598.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000188249

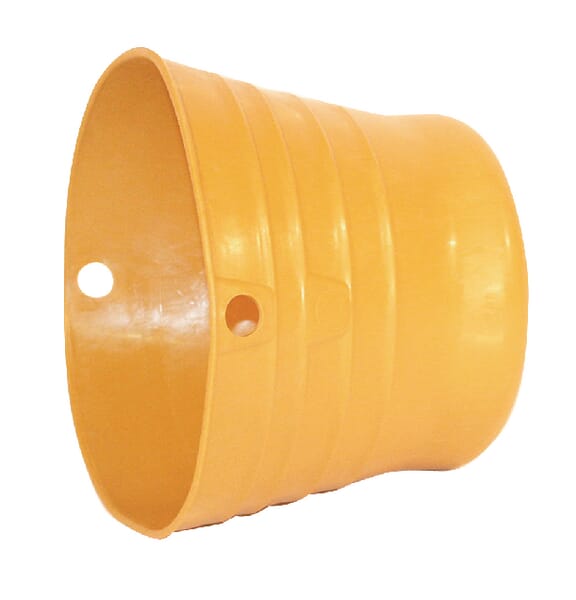

Walterscheid Guard cone 110L 820800
£14.22 excl.
£17.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095383

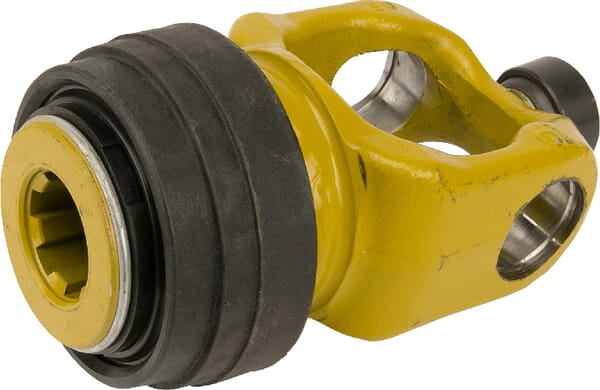

Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, P580 3683318M
