£2,316.51
excl. VAT
£2,779.81 incl. VAT
£2,779.81
incl. VAT
£2,316.51 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Extra info | Do not use this product at a speed of 1000 rpm. Also consult one of our product specialists for advice. |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1710 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 6000 N·m |
| Original number equivalent | 1694676 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Protection type | SD25 |
| Size code | WWZ 2580 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 51330 g |
| Dimensions | 2100 × 250 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000157456
Walterscheid PTO Reducer Male 1 3/8" (21) Female 1 3/4" (20) with clamp bolt 6710216
£252.12 excl.
£302.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067498
Walterscheid Yoke, Clamp bolt, 30mm, W2300/P300/W300E 212903
£293.93 excl.
£352.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000181307

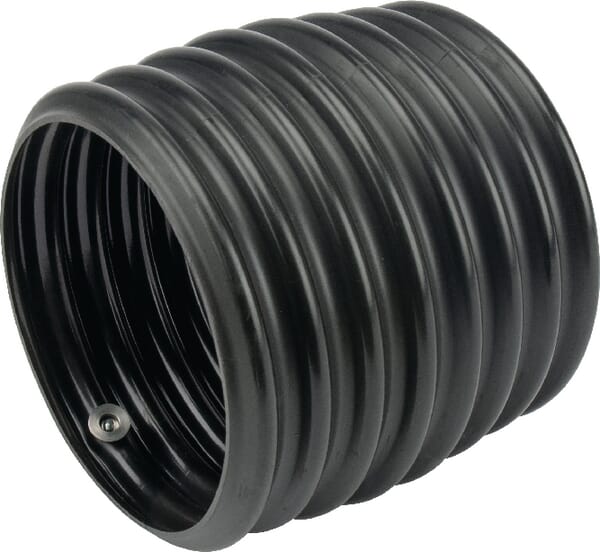

Walterscheid Hole cover PG30 8065104
£24.56 excl.
£29.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000062755

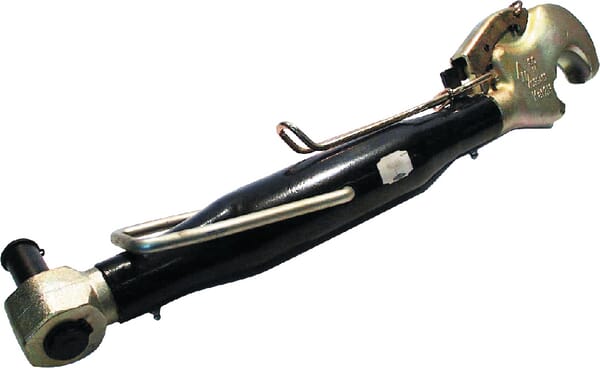

Walterscheid Toplink eye/hook 520, M36 cat.3/3 200194
£547.08 excl.
£656.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000098886
Walterscheid Yoke, Profile tube, 37mm, W2500/P500 3613100
£124.24 excl.
£149.09 incl.
In stock
Expected to ship on Friday 18 September
BPA000021398

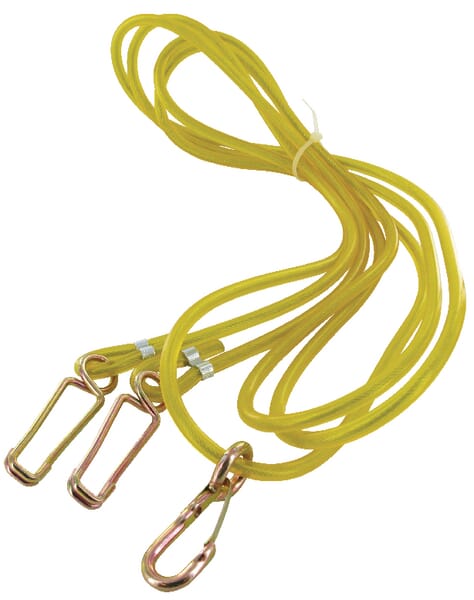

Walterscheid Release cable 4000 mm 098675
