£651.10
excl. VAT
£781.32 incl. VAT
£781.32
incl. VAT
£651.10 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Ball diameter | 30 mm |
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/4-20 |
| Length | 125 mm |
| Locking system | Clamp cone |

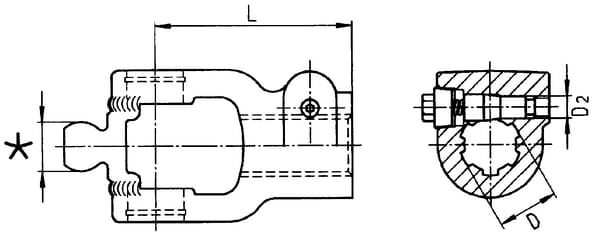

| Long description | Wide-angle clamping cone yokes with CC lock series W 2450 / 80° |
| Original number equivalent | 1135320 |
| Outside connection diameter | 44.45 mm |
| Properties | Clamp cone bolt |
| Shaft size code | W2580 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8432970334779 |
|---|---|
| Unit of measure | EA |
| Weight | 2980 g |
| Dimensions | 190 × 110 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000025964

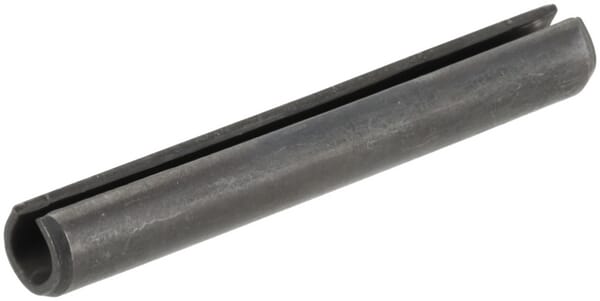

Walterscheid Roll pin 10x75mm ISO:8752 1020616
£3.31 excl.
£3.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000075993

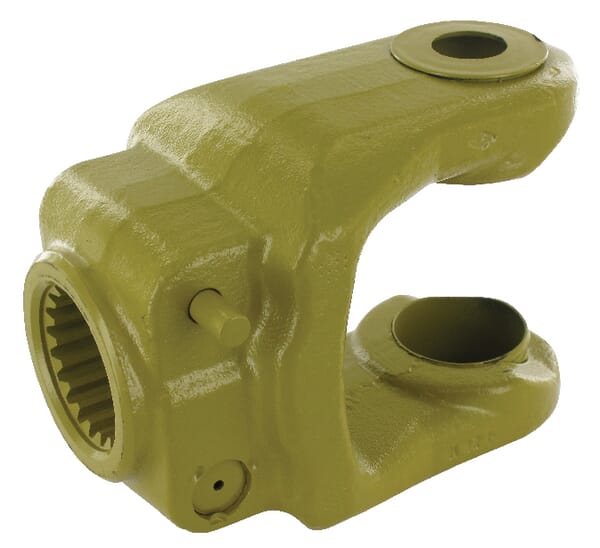

Walterscheid Yoke, Quick disconnect, 1-3/4"-20 spline, W2600/P600 261802
