£541.00
excl. VAT
£649.20 incl. VAT
£649.20
incl. VAT
£541.00 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Locking system | Clamp cone |
| Long description | Wide-angle clamping cone yokes with CC lock series P580 / 80° |
| Original number equivalent | 1134656 |
| Outside connection diameter | 44.45 mm |
| Properties | Clamp cone bolt |
| Shaft size code | P580 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
360603
Walterscheid Cross journal diameter 36x89mm / diameter 32x106mm 2580 / P580 360603
£122.67 excl.
£147.20 incl.
3606131
Walterscheid Cross journal diameter 36x89mm / diameter 32x106mm 2580 / P580 3606131
£130.10 excl.
£156.12 incl.
3606134
Walterscheid Cross journal diameter 36x89mm / diameter 32x106mm 2580 / P580 3606134
£151.72 excl.
£182.06 incl.
Logistics
| EAN | 8432970290297 |
|---|---|
| Unit of measure | EA |
| Weight | 3054 g |
| Dimensions | 222 × 135 × 126 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000145557
Walterscheid Clutch housing RH 586049
£503.07 excl.
£603.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000171983

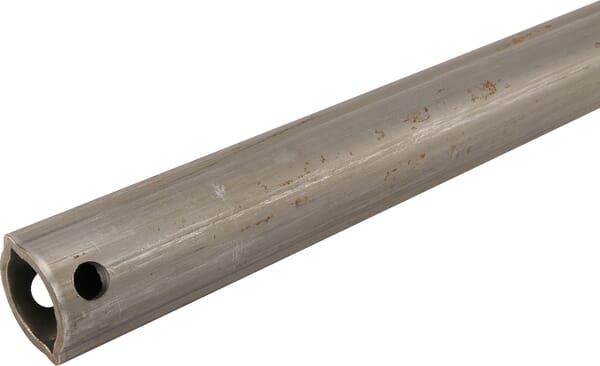

Walterscheid Profile tube lemon Ov diameter in: 32 diameter out: 40x34.5x4mm L: 1.4m 75111501400
