£195.88
excl. VAT
£235.06 incl. VAT
£235.06
incl. VAT
£195.88 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

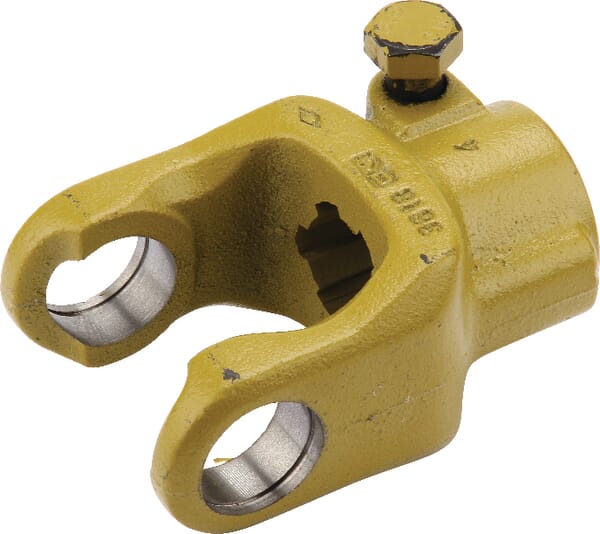

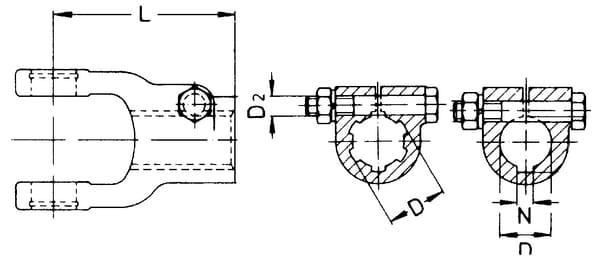

Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play |
| Bolt thread diameter | M16 |
| Consists of | Fork, Clamping pin |
| Details | Clamping pin provides effective clamping effect on the shaft |
| Includes | Yoke, Clamp bolts |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Length | 118 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Yokes with clamp bolt closure W series / Power Drive |
| Original number equivalent | 1320790 |
| Outside connection diameter | 44.45 mm |
| Product details | Slack-free installation, Interfering |
| Properties | - Double clamp bolt, |
| Pros | Clamp bolt ensures good hold on the shaft |
| Shaft size code | W2500, P500 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8435194024075 |
|---|---|
| Unit of measure | EA |
| Weight | 2393 g |
| Dimensions | 225 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000035163

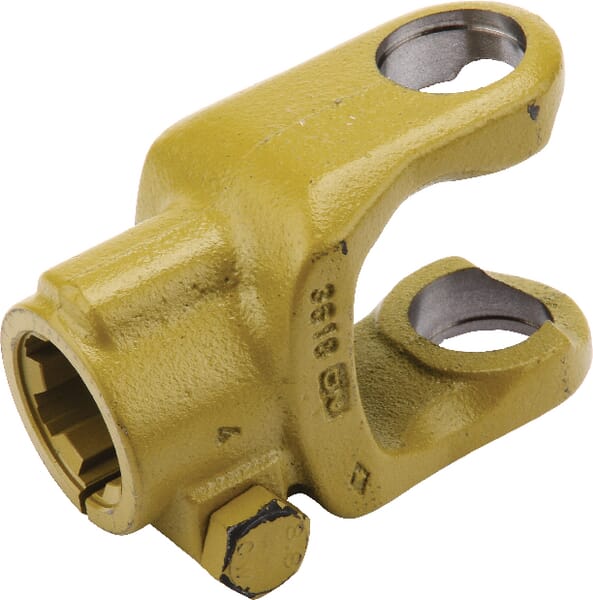

Walterscheid Yoke, Clamp bolt, 1-3/4"-6 spline, W2500/P500 1139499
£358.54 excl.
£430.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000181272
Walterscheid Sealing ring SC25 8063112
£13.93 excl.
£16.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000140221
Walterscheid Radial pin clutch K32B 551960350
£290.57 excl.
£348.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000342475

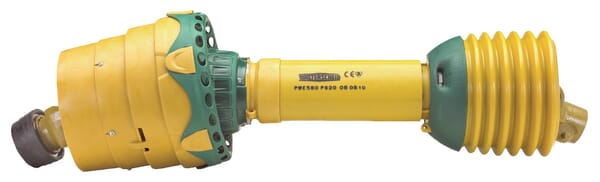

Walterscheid Wide angle PTO shaft PWE67510105610141
£3,218.60 excl.
£3,862.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146804
Walterscheid EK64/22R Housing - Flange 592208
£692.25 excl.
£830.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152502

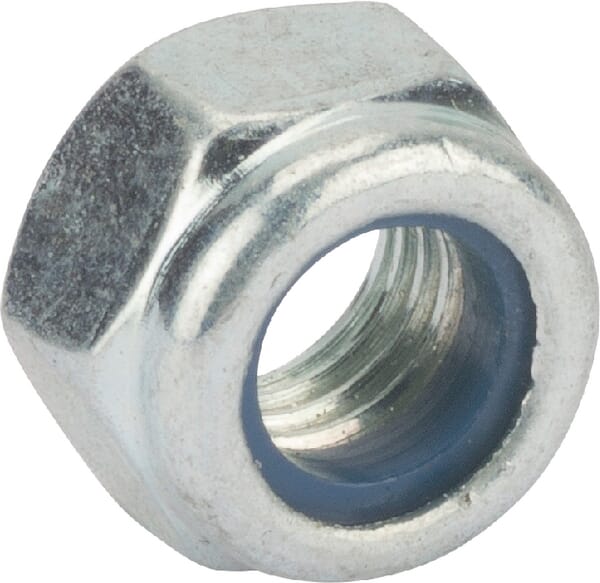

Walterscheid Nut 606001
