£469.25
excl. VAT
£563.10 incl. VAT
£563.10
incl. VAT
£469.25 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Ball diameter | 30 mm |
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Length | 125 mm |
| Locking system | Clamp cone |
| Long description | Wide-angle clamping cone yokes with CC lock series W 2450 / 80° |
| Original number equivalent | 1135319 |
| Outside connection diameter | 44.45 mm |
| Properties | Clamp cone bolt |
| Shaft size code | W2580 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8432970334762 |
|---|---|
| Unit of measure | EA |
| Weight | 3020 g |
| Dimensions | 146 × 103 × 76 mm |
| Dangerous goods | No |
You might also like
BPA000045280
Walterscheid Drive disc 1393175
£74.45 excl.
£89.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000142828

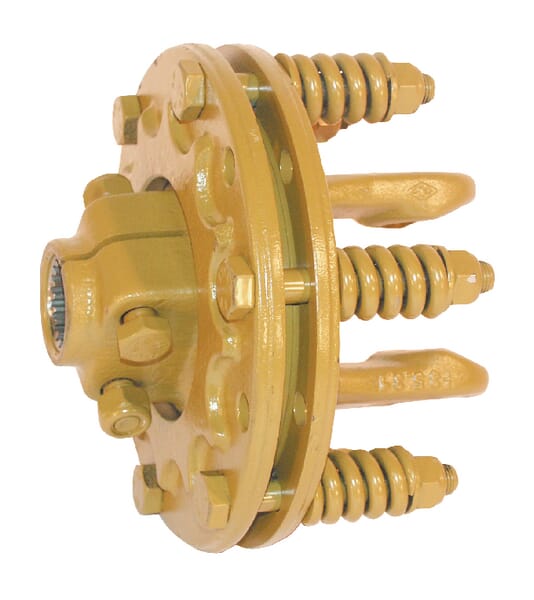

Walterscheid Friction clutch K90 561000890
£722.60 excl.
£867.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000029965
Walterscheid Yoke, hub, 40x36mm, W2500/P500 1119038
£191.83 excl.
£230.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400097

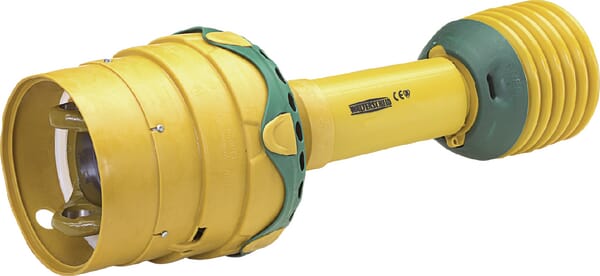

Walterscheid PTO shaft without yokes WWE 2280 L: 1210mm, WWE22801210OG
£761.51 excl.
£913.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400140

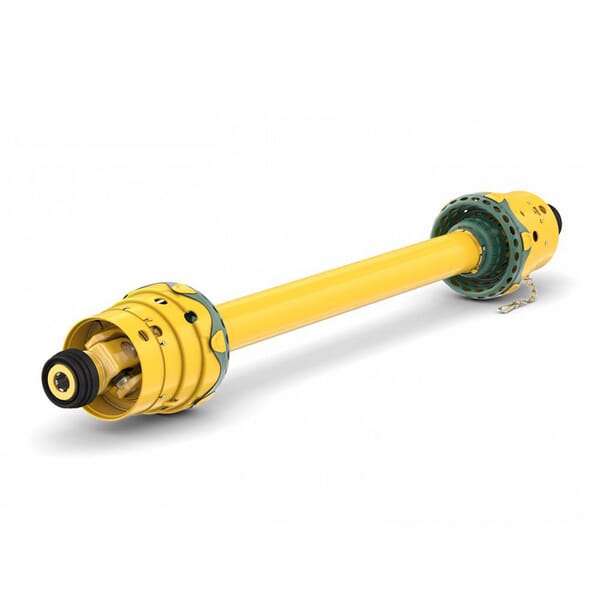

Walterscheid Wide angle PTO shaft WWZ 2380 L: 860mm, WWZ2380860
