£626.34
excl. VAT
£751.61 incl. VAT
£751.61
incl. VAT
£626.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

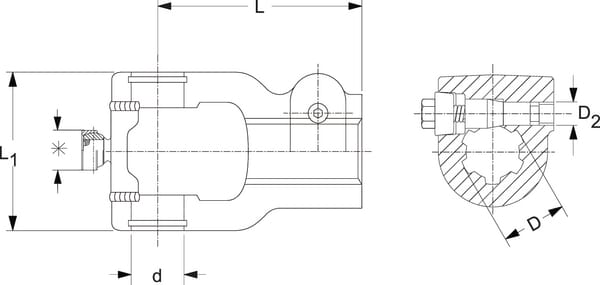

Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/8-21 |
| Length | 112 mm |
| Locking system | Clamp cone |
| Long description | Wide-angle clamping cone yokes with CC lock series P580 / 80° |
| Original number equivalent | 1601061 |
| Outside connection diameter | 34.93 mm |
| Properties | Clamp cone bolt |
| Shaft size code | P480 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2250 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098491
Walterscheid Yoke, Quick disconnect, 1-3/4"-6 spline, P480 3584310M
£794.68 excl.
£953.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051553
Walterscheid Back-up ring 162016
£13.29 excl.
£15.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000021439
Walterscheid Catch category 3 099474
£71.68 excl.
£86.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000051548
Walterscheid Back-up ring diameter 42mm 162014
£3.14 excl.
£3.77 incl.
In stock
Expected to ship on Friday 18 September

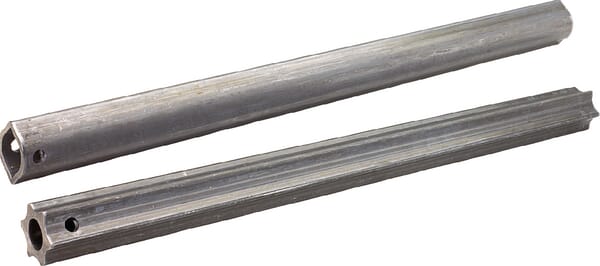

BPA000027039
