£197.26
excl. VAT
£236.71 incl. VAT
£236.71
incl. VAT
£197.26 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play |
| Bolt thread diameter | M12 |
| Consists of | Fork, Clamping pin |
| Details | Clamping pin provides effective clamping effect on the shaft |
| Includes | Yoke, Clamp bolts |
| Inside connection diamter inch and splines | 1.3/8-21 |

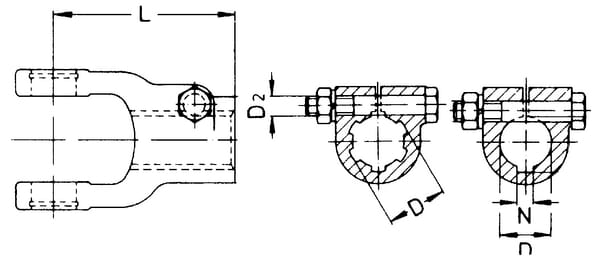

| Length | 118 mm |
| Locking system | Clamp bolt (interfering) |

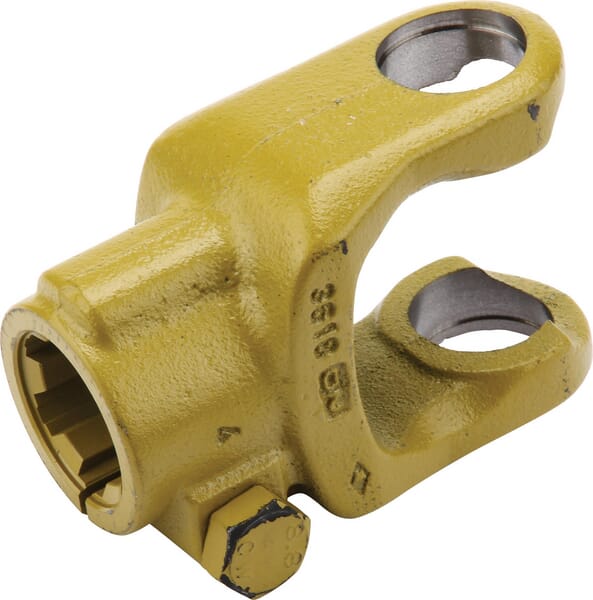

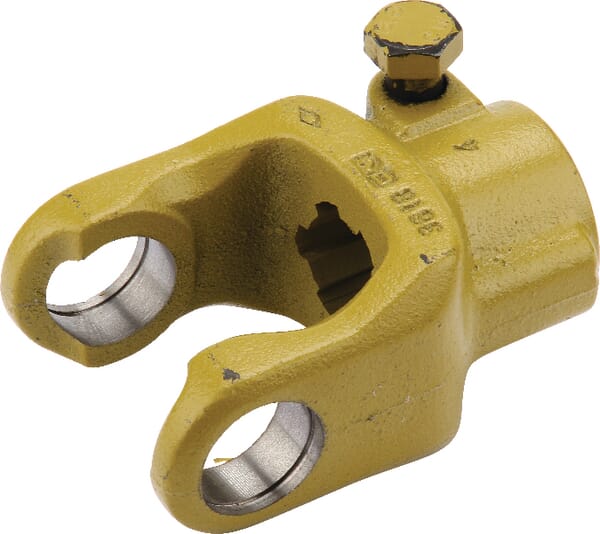

| Long description | Yokes with clamp bolt closure W series / Power Drive |
| Original number equivalent | 1318384 |
| Outside connection diameter | 34.93 mm |
| Product details | Slack-free installation, Interfering |
| Properties | - Double clamp bolt, |
| Pros | Clamp bolt ensures good hold on the shaft |
| Shaft size code | W2500, P500 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8435194023849 |
|---|---|
| Unit of measure | EA |
| Weight | 2407 g |
| Dimensions | 220 × 130 × 126 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098487
Walterscheid Yoke, quick disconnect, 1-3/4"-20 spline, W2480 3584112M
£388.14 excl.
£465.77 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000064135
Walterscheid Shim 21,95x2 200670
£5.59 excl.
£6.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156825

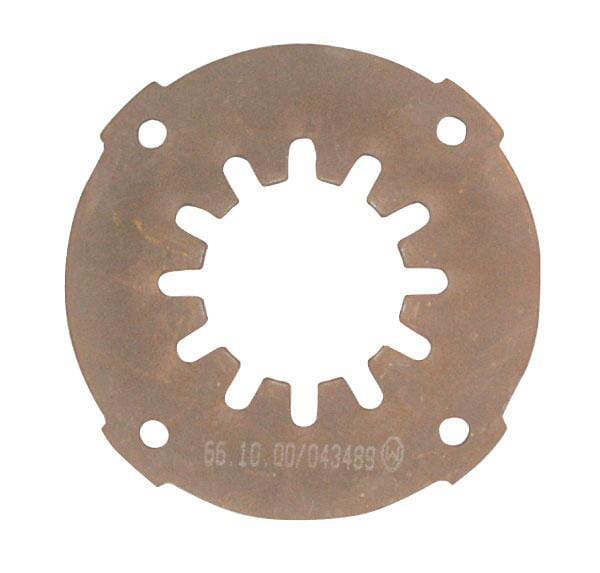

Walterscheid Belleville Spring 2.6mm 661601
