£77.57
excl. VAT
£93.08 incl. VAT
£93.08
incl. VAT
£77.57 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play |
| Bolt thread diameter | M12 |
| Consists of | Fork, Clamping pin |
| Details | Clamping pin provides effective clamping effect on the shaft |
| Includes | Yoke, Clamp bolts |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Length | 107 mm |
| Locking system | Clamp bolt (interfering) |

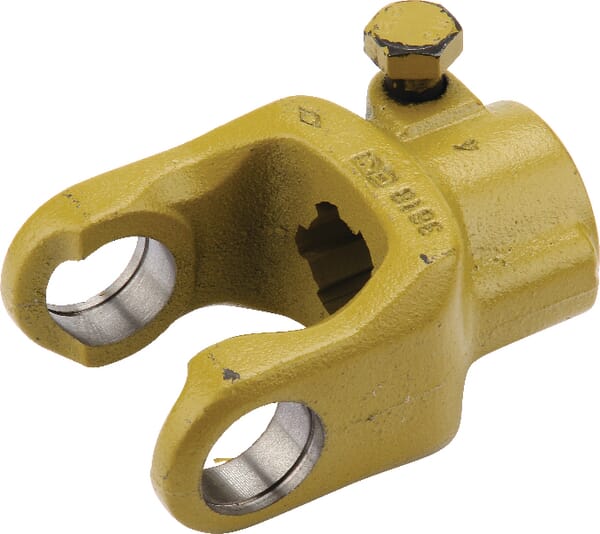

| Long description | Yokes with clamp bolt closure W series / Power Drive |
| Original number equivalent | 1041356 |
| Outside connection diameter | 34.93 mm |
| Product details | Slack-free installation, Interfering |
| Properties | - Double clamp bolt, |
| Pros | Clamp bolt ensures good hold on the shaft |
| Shaft size code | W2300, P300, W300E |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8435194011549 |
|---|---|
| Unit of measure | EA |
| Weight | 1212 g |
| Dimensions | 130 × 90 × 65 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092617

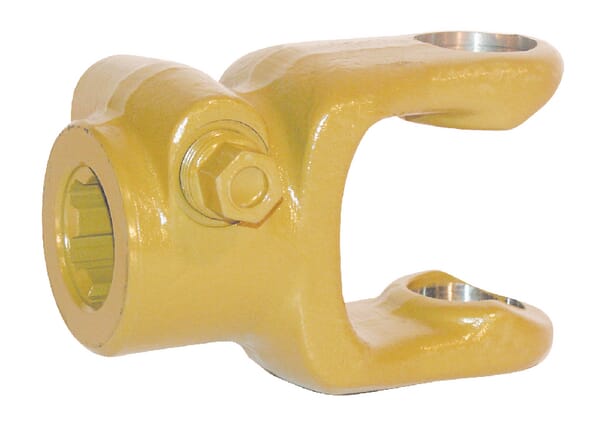

Walterscheid Yoke, Clamp bolt, 1-3/8"-6 spline, W2400/P400/W400E 351030
£234.13 excl.
£280.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144558
Walterscheid Shearbolt clutch KB61/20 5714618
£362.33 excl.
£434.80 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000075154

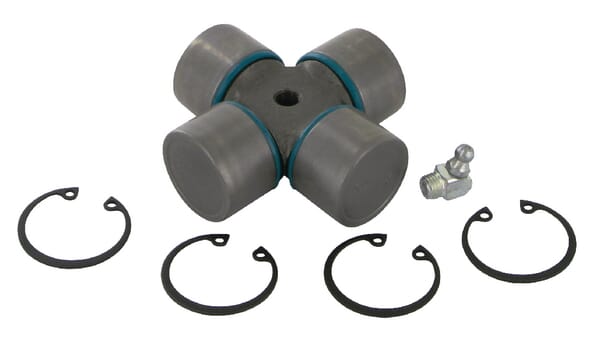

Walterscheid Cross journal diameter 50x118mm 2700 / P700 270003
£323.47 excl.
£388.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067485
Walterscheid Yoke, double, W2300/P300/W300E 212601
£238.80 excl.
£286.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067134

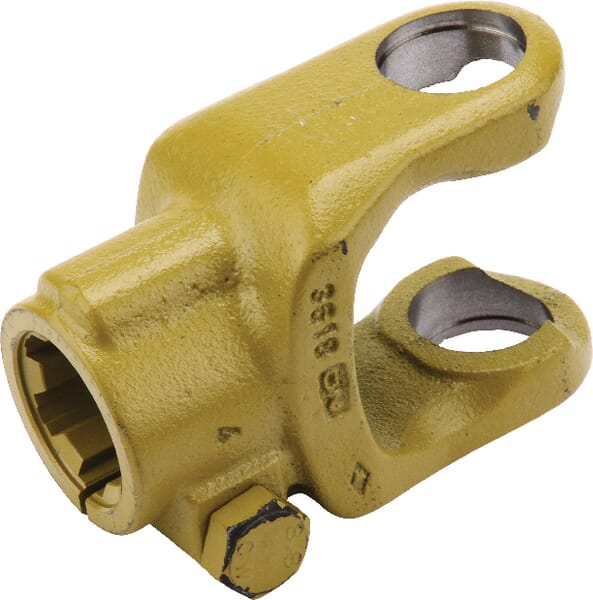

Walterscheid Yoke, Clamp bolt, 1-3/8"-21 spline, W2300/P300/W300E 2110110
£160.22 excl.
£192.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000188248

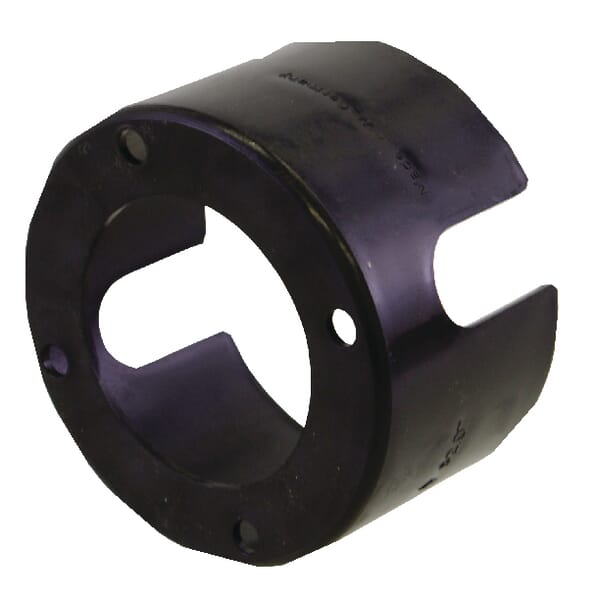

Walterscheid Guard cone 82.07.00 820700
