£434.59
excl. VAT
£521.51 incl. VAT
£521.51
incl. VAT
£434.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

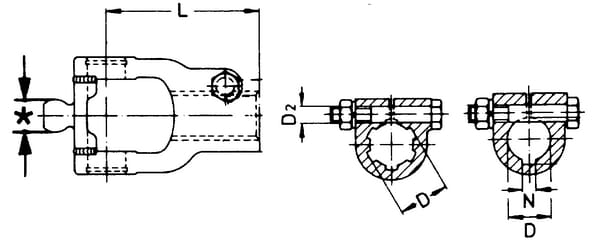

| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Ball diameter | 27 mm |
| Benefits | Assembly with no play |
| Bolt thread diameter | M12 |
| Consists of | Fork with clipbolt |
| Details | Clamping pin provides effective clamping effect on the shaft |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Length | 112 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Wide-angle clamping cone yokes series W 2280 / 80° |
| Original number equivalent | 1366828 |
| Outside connection diameter | 34.93 mm |
| Properties | Clamp cone bolt |
| Shaft size code | W2480 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8435194027427 |
|---|---|
| Unit of measure | EA |
| Weight | 2035 g |
| Dimensions | 220 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000356922
Walterscheid Guard complete SD15550
£135.03 excl.
£162.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000052670

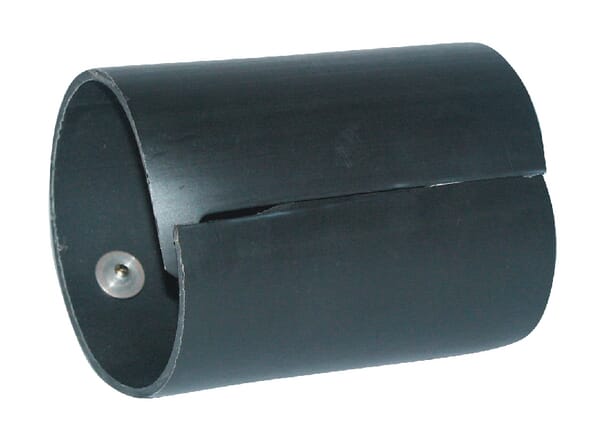

Walterscheid Lubrication hole cover ST25 1607342
£36.99 excl.
£44.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244752
Walterscheid Mechanism complete Cramer CK32000160
£112.43 excl.
£134.92 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000363754

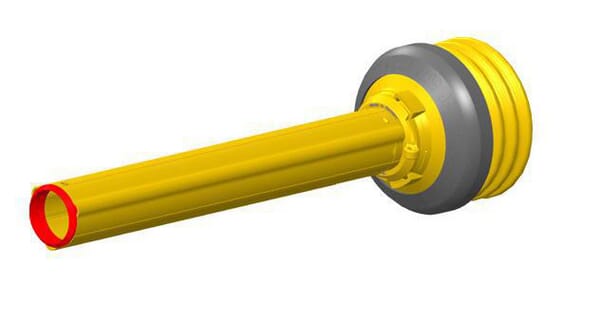

Walterscheid Guard half inner ST25 D185 ST251500I
£135.90 excl.
£163.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000143850

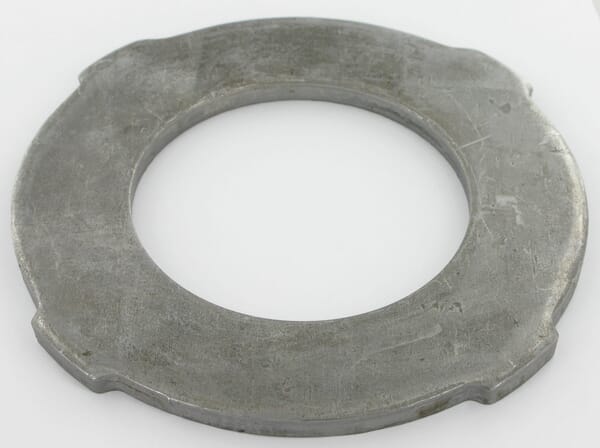

Walterscheid Drive plate K92/4+K92 566602
