£281.58
excl. VAT
£337.90 incl. VAT
£337.90
incl. VAT
£281.58 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Length | 118 mm |
| Locking system | Clamp cone |
| Long description | Yokes with CC closure (clamp cone) series W / Power Drive |
| Original number equivalent | 1195118 |
| Outside connection diameter | 12.5 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | W2500, P500 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8432970164505 |
|---|---|
| Unit of measure | EA |
| Weight | 2517 g |
| Dimensions | 150 × 100 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098491

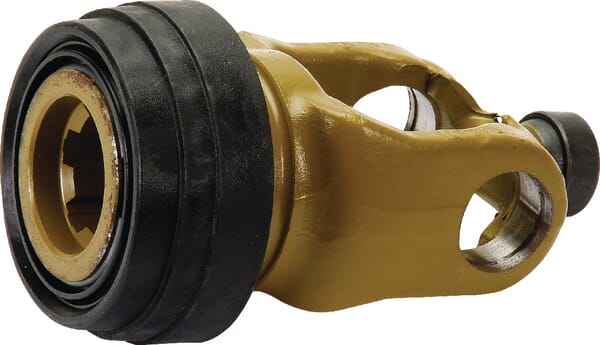

Walterscheid Yoke, Quick disconnect, 1-3/4"-6 spline, P480 3584310M
£794.68 excl.
£953.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178328
Walterscheid Forced steering adapter 8004771
£519.55 excl.
£623.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000053372

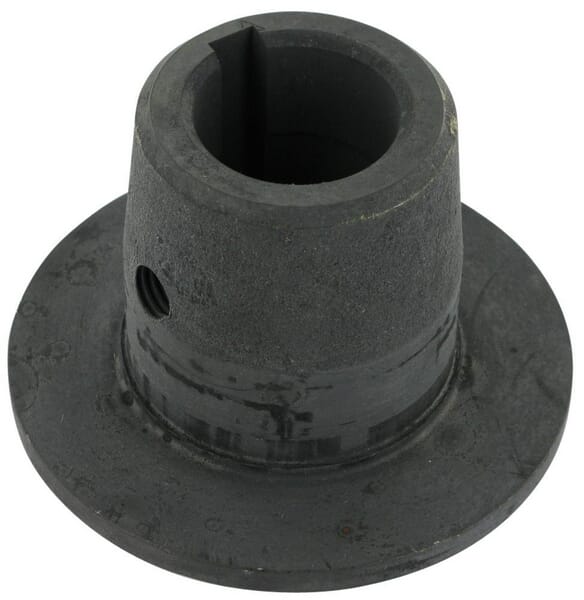

Walterscheid Hub K94/1 diameter 30 1650414
£187.30 excl.
£224.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000030386

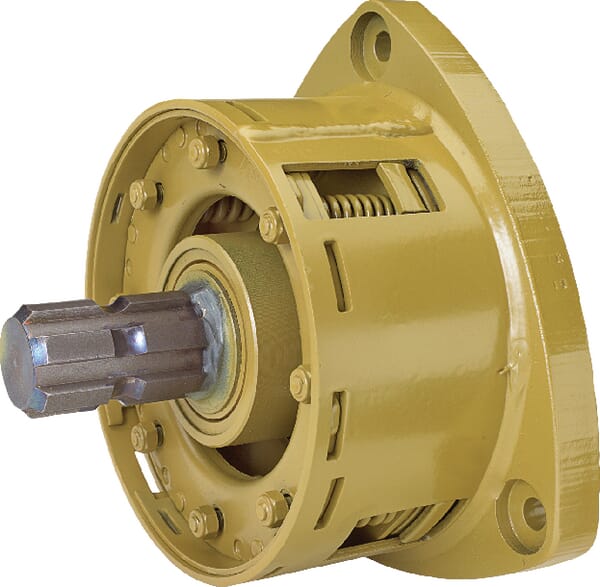

Walterscheid Overrunning clutch PFK 97/4R 1120910
£2,196.56 excl.
£2,635.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356987

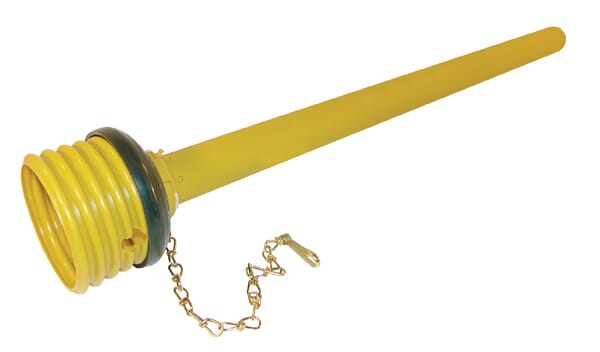

Walterscheid PTO inner half guard SD25 diameter 160 tube diameter 73, L: 1500mm SD251500ID160
£84.21 excl.
£101.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084034

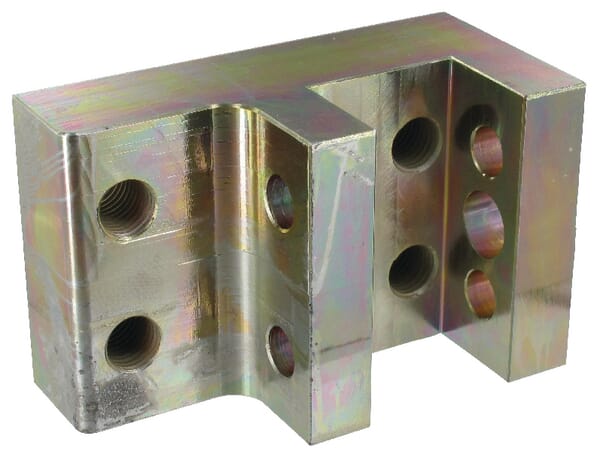

Walterscheid Mounting holder cat.2 305307
