£156.79
excl. VAT
£188.15 incl. VAT
£188.15
incl. VAT
£156.79 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Original Walterscheid PTO shafts |
|---|---|
| Bolt thread diameter | M8 |
| Consists of | Fork, Roll pin not included |
| d1Width | 84 mm |
| dCross cap diameter | 27 mm |
| Includes | Yoke, Excludes spring pin |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Key width | 8 mm |
| LLength | 95 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1041624 |
| Outside connection diameter | 34.93 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2300, P300, W300E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Logistics
| EAN | 8435194011761 |
|---|---|
| Unit of measure | EA |
| Weight | 1020 g |
| Dimensions | 118 × 98 × 58 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000066654
Walterscheid Yoke, Hub, 1-3/8"-6 spline, W2300/P300/W300E 2170123
£161.41 excl.
£193.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000096003

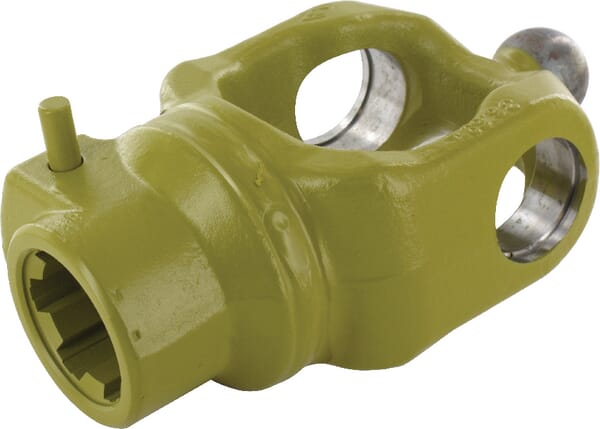

Walterscheid Yoke, Quick disconnect, 1-3/4"-6 spline, W2580 361810M
£343.07 excl.
£411.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000040897

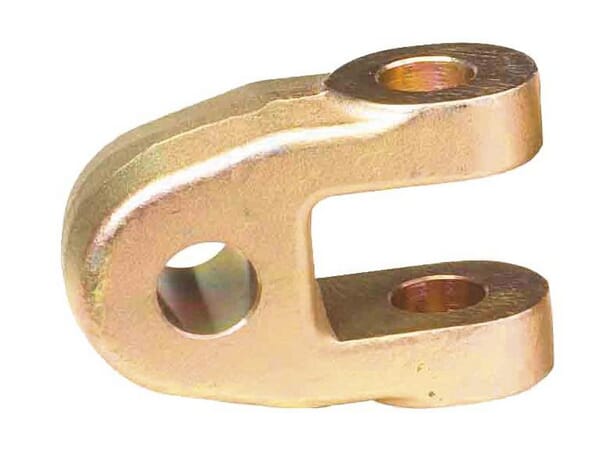

Walterscheid Fork head 28.2x57mm 1202307
£250.39 excl.
£300.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051553
Walterscheid Back-up ring 162016
£13.29 excl.
£15.95 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000098488

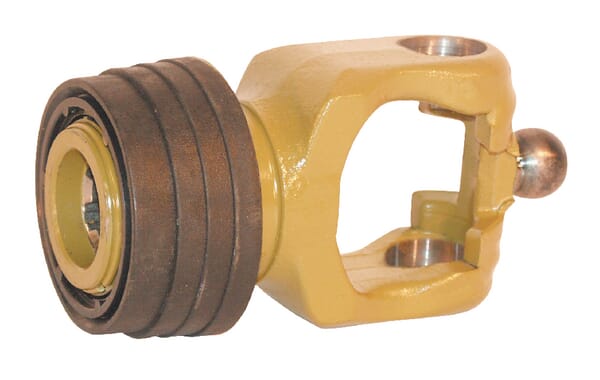

Walterscheid Yoke, Quick disconnect, 1-3/4"-20 spline, W2480 358412M
