£174.86
excl. VAT
£209.83 incl. VAT
£209.83
incl. VAT
£174.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Original Walterscheid PTO shafts |
|---|---|
| Bolt thread diameter | M8 |
| Consists of | Fork, Roll pin not included |

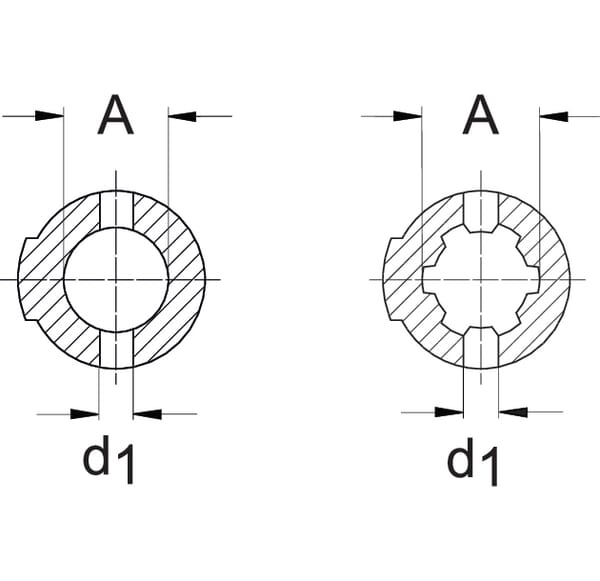

| d1Width | 86 mm |
| dCross cap diameter | 32 mm |
| Includes | Yoke, Excludes spring pin |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Key width | 8 mm |

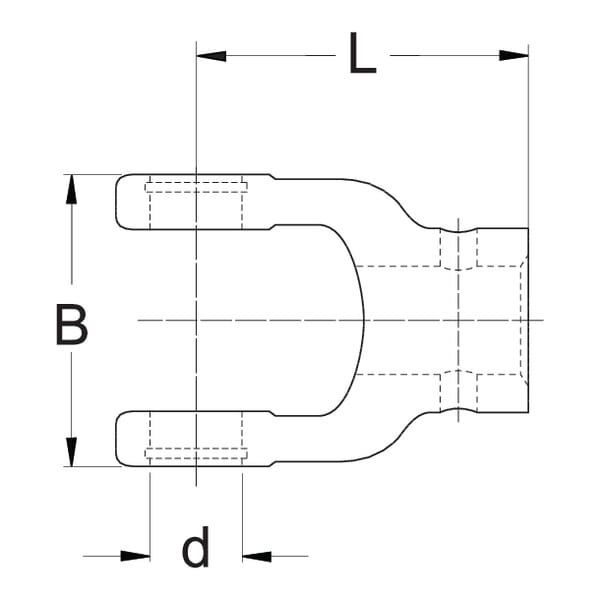

| LLength | 105 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1320693 |
| Outside connection diameter | 34.93 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2400, P400, W400E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Logistics
| EAN | 8435194024020 |
|---|---|
| Unit of measure | EA |
| Weight | 1410 g |
| Dimensions | 140 × 125 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000356975

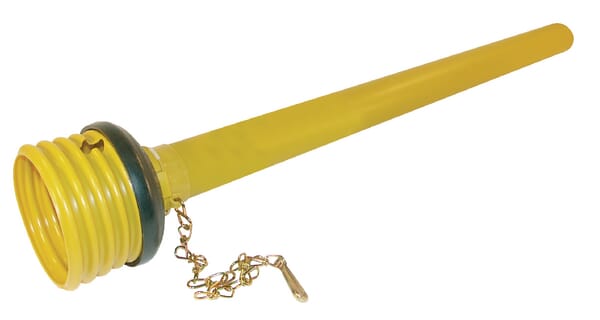

Walterscheid PTO outer half guard SD25/1 diameter 160 tube diameter 90, L: 1500mm SD2511500A
£105.00 excl.
£126.00 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000143240
Walterscheid Hub F5/1 1-3/4 20 splineclamp bolt 561919
£190.64 excl.
£228.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000065041

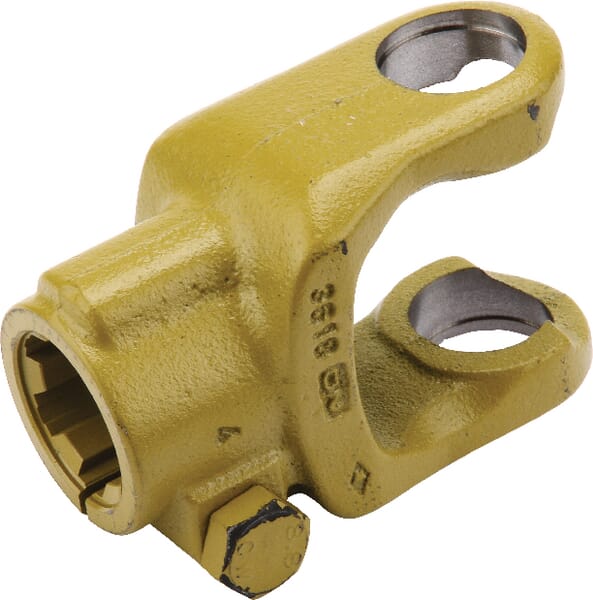

Walterscheid Yoke, Clamp bolt, 30mm, W2200/W200E 201004
£111.39 excl.
£133.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244789
Walterscheid Lock pin 22x85mm Cramer CK43359022
£102.94 excl.
£123.53 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000077831
Walterscheid Yoke, clamp bolt, 1-3/8"-6 spline, W2600/P600 261006
£401.88 excl.
£482.26 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400105

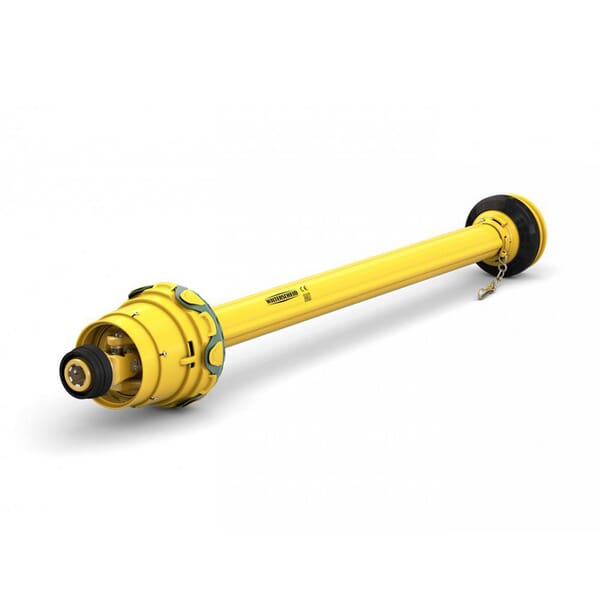

Walterscheid Wide angle PTO shaft WWE 2380 L: 1610mm, WWE23801610
