£141.48
excl. VAT
£169.78 incl. VAT
£169.78
incl. VAT
£141.48 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Original Walterscheid PTO shafts |
|---|---|
| Bolt thread diameter | M8 |
| Connection diameter tolerance code | H8 |
| Consists of | Fork, Roll pin not included |

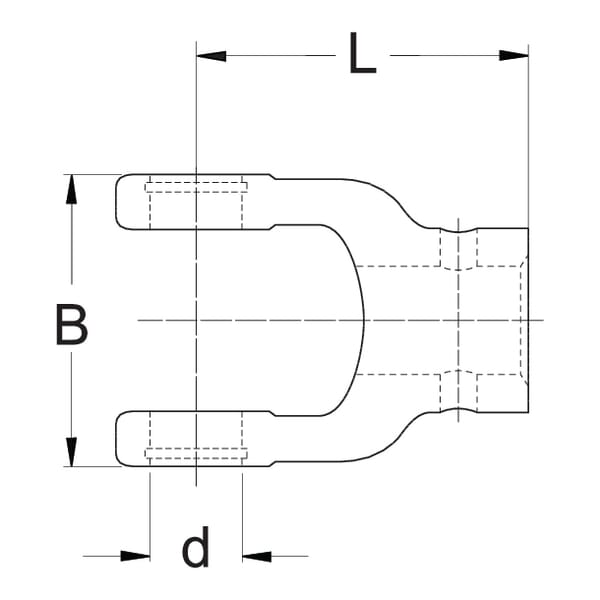

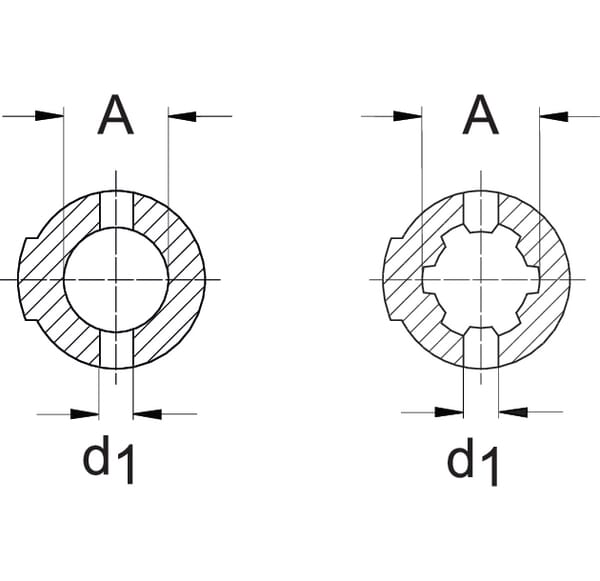

| d1Width | 70 mm |
| dCross cap diameter | 24 mm |
| Includes | Yoke, Excludes spring pin |
| Key width | 8 mm |
| LLength | 80 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1041082 |
| Outside connection diameter | 25 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2200, W200E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8435194011181 |
|---|---|
| Unit of measure | EA |
| Weight | 700 g |
| Dimensions | 160 × 160 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065225
Walterscheid Yoke, Hub, 25mm, W2200/W200E 201510
£156.95 excl.
£188.34 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144528

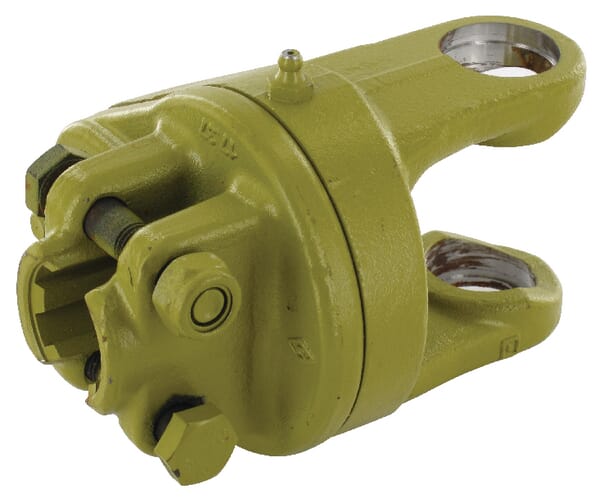

Walterscheid Shearbolt clutch KB61/20 5713118
£412.27 excl.
£494.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000155869
Walterscheid Circlip external 35x2.5mm DIN471 Steel 1 pieces 623901
£1.78 excl.
£2.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146853
Walterscheid K64/2 Spring set 250 daNm 592501250
£218.48 excl.
£262.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000033776

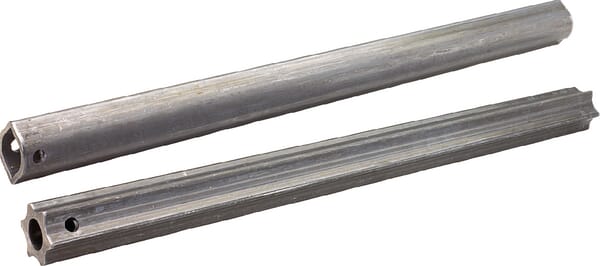

Walterscheid Profile 1170393
£75.77 excl.
£90.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000029536

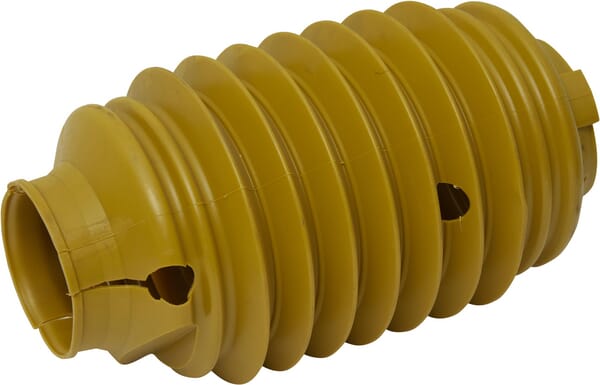

Walterscheid Guard cone 1115931
