About this product

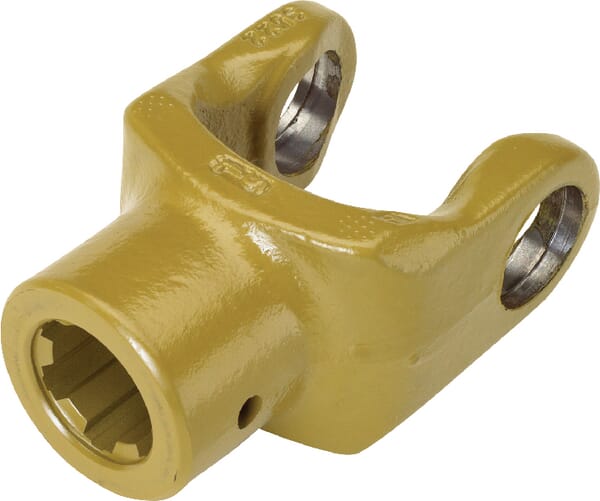

A hub-type yoke for Walterscheid W2200 and W200E PTO drive shafts, measuring 25 mm outside connection diameter and 21 mm inside connection diameter with a 6 mm key width. The yoke is supplied as a single piece without the spring pin and is designed for use with a roll pin bore locking system. The fork assembly measures 75 mm in length and 70 mm in width, with an M6 bolt thread diameter and 24 mm cross cap diameter. Assembly requires a roll pin (not supplied) to secure the fork, and the yoke itself must be secured with a spring pin. The unit weighs approximately 655 g and carries the EAN 8432970127982.
Product details

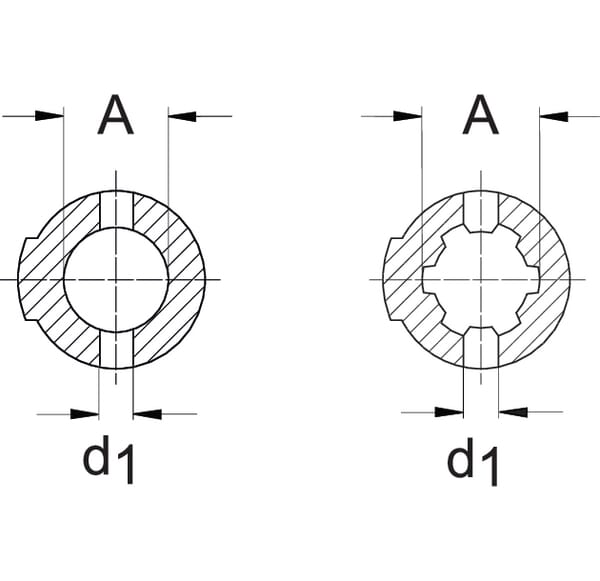

| AInside connection diameter | 21 mm |
|---|---|
| Application range | Original Walterscheid PTO shafts |
| Bolt thread diameter | M6 |
| Consists of | Fork, Roll pin not included |

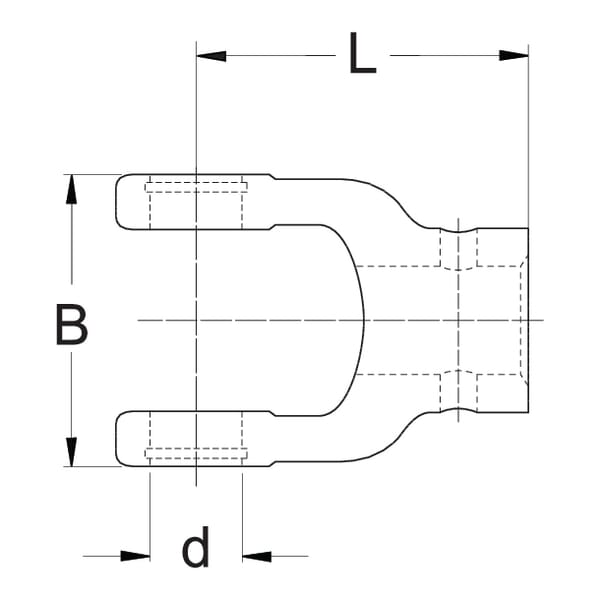

| d1Width | 70 mm |
| dCross cap diameter | 24 mm |
| Includes | Yoke, Excludes spring pin |
| Key width | 6 mm |
| LLength | 75 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1045533 |
| Outside connection diameter | 25 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2200, W200E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8432970127982 |
|---|---|
| Unit of measure | EA |
| Weight | 655 g |
| Dimensions | 90 × 70 × 50 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143079

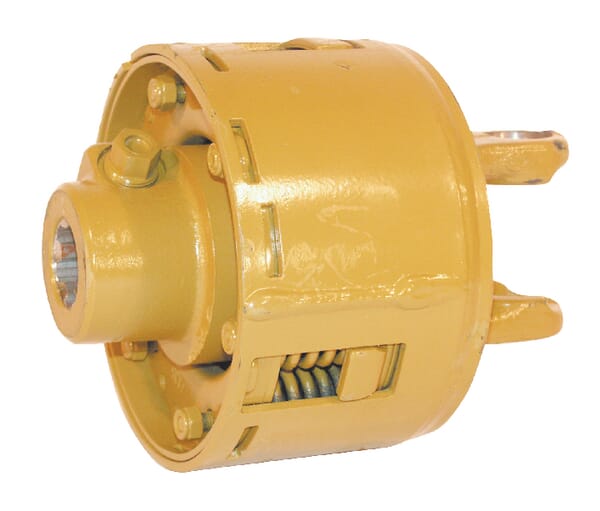

Walterscheid Clutch K96/4 2500 1 3/8-6 CC 5613651210
£1,118.91 excl.
£1,342.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000095422
Walterscheid Yoke, quick disconnect, 1-3/4"-20 spline, P580 3684316M
£433.14 excl.
£519.77 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000029520
Walterscheid Yoke, flange, W2500/P500 1115611
£302.04 excl.
£362.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000095548
Walterscheid Yoke for clutch K64/22-24L, W2500/P500 369019
£574.43 excl.
£689.32 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000143566

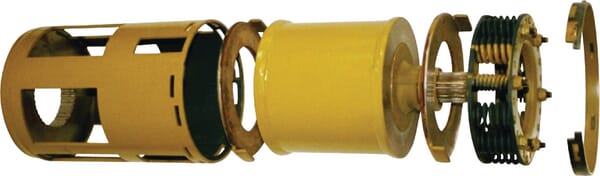

Walterscheid Driver/friction disc EK96-W 5634103
