£182.54
excl. VAT
£219.05 incl. VAT
£219.05
incl. VAT
£182.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Original Walterscheid PTO shafts |
|---|---|
| Bolt thread diameter | M10 |
| Connection diameter tolerance code | R7 |
| Consists of | Fork, Roll pin not included |

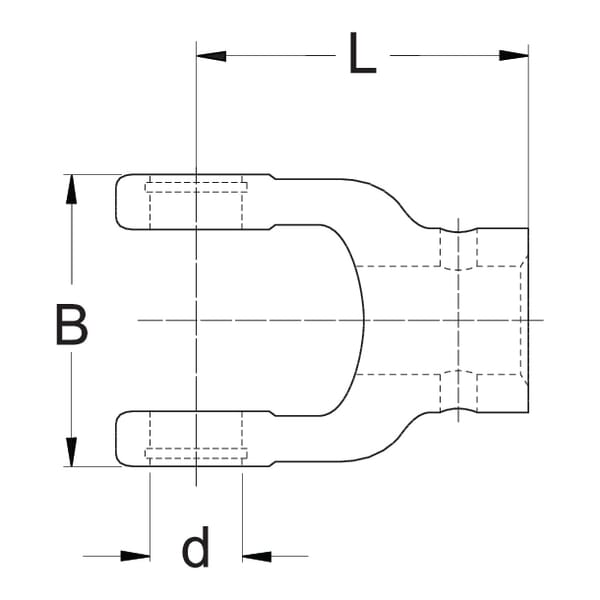

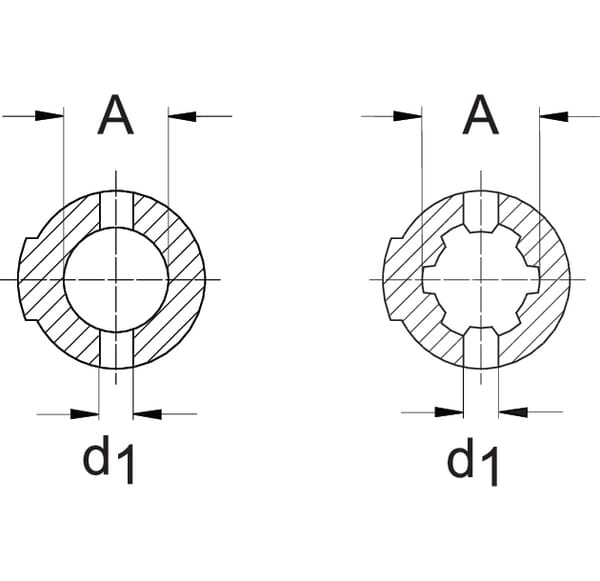

| d1Width | 84 mm |
| dCross cap diameter | 27 mm |
| Includes | Yoke, Excludes spring pin |
| Key width | 10 mm |
| LLength | 95 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1041471 |
| Outside connection diameter | 30 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2300, P300, W300E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Logistics
| EAN | 8435194177955 |
|---|---|
| Unit of measure | EA |
| Weight | 1100 g |
| Dimensions | 115 × 86 × 56 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000067530
Walterscheid Yoke, Hub, 30mm, W2300/P300/W300E 213004
£161.96 excl.
£194.35 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000065109

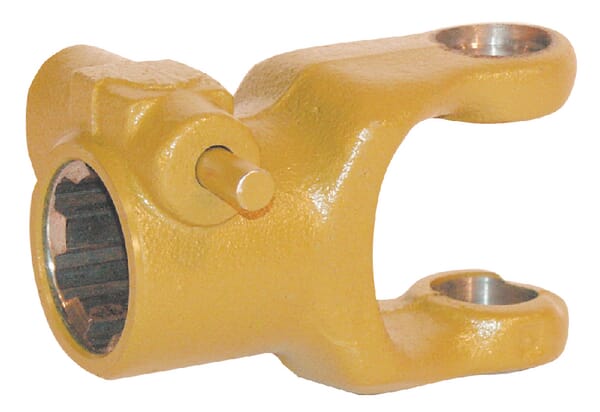

Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2200/W200E 2011101
£149.92 excl.
£179.90 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000040804
Walterscheid Yoke rod end 1201481
£239.52 excl.
£287.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000042016
Walterscheid Piston rod with hook 1309472
£616.95 excl.
£740.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000062742
Walterscheid Toplink eye/hook 320, M30 cat.2/2 200187
£486.32 excl.
£583.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000094380

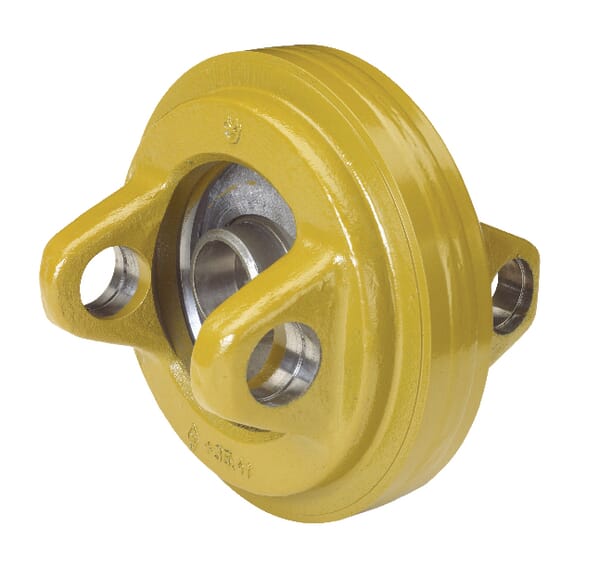

Walterscheid Yoke, Double, 33mm, P480 354108
