£279.07
excl. VAT
£334.88 incl. VAT
£334.88
incl. VAT
£279.07 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

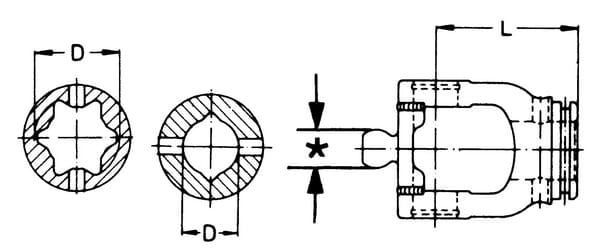

| Application range | Original Walterscheid PTO shafts |
|---|---|
| Ball diameter | 27 mm |
| Consists of | Fork, Roll pin not included |
| Inside connection diameter | 37 mm |
| Length | 92 mm |
| Locking system | Roll pin bore |
| Long description | Wide-angle inboard yokes with spring pin hole series W 2480 / 80° with central lubrication |
| Original number equivalent | 1193787 |
| Outer tube diameter | 51 mm |
| Profile tube code | S4 |
| Properties | Ball has a bore for central lubrication from the cross journal |
| Shaft size code | W2480 |
| Technical info | For connecting Walterscheid profile tubes, Profile tube must be secured with a roll pin |
| Type | Profile tube |
| Unit | Each |
Logistics
| EAN | 8435194020831 |
|---|---|
| Unit of measure | EA |
| Weight | 1800 g |
| Dimensions | 141 × 125 × 132 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000095995

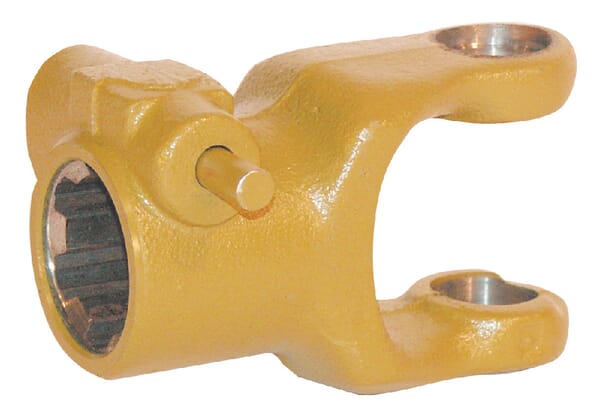

Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2500/P500 361800
£151.74 excl.
£182.09 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178353
Walterscheid Counterweight pendant support 389mm 8005108
£1,888.16 excl.
£2,265.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400851

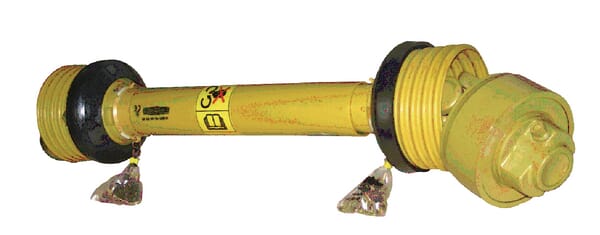

Walterscheid PTO shaft W2500 L: 1210mm with cam type cut out clutch, W250012105912743
£1,323.92 excl.
£1,588.70 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067476
Walterscheid Yoke, hub, 35mm, W2380 2124827
£832.71 excl.
£999.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000047891

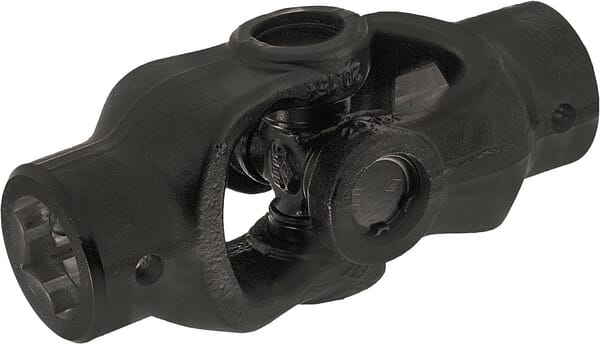

Walterscheid Universal joint Fella 150952N
£159.32 excl.
£191.18 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000040571

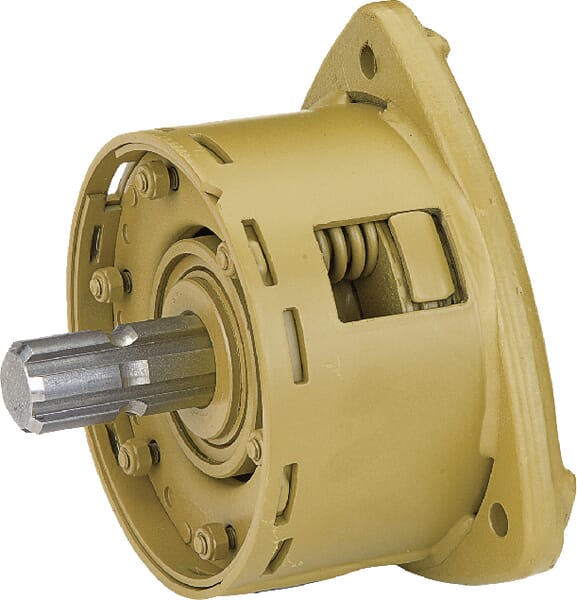

Walterscheid Overrunning clutch PFBK 96/4R 1197618
