£97.42
excl. VAT
£116.90 incl. VAT
£116.90
incl. VAT
£97.42 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Cavity | SAE08-2 |
|---|---|
| External length | 67.2 mm |
| Long description | This is a normally open, pre-actuated solenoid valve. When de-energised state, there is free flow in both directions. When operated, 2 to 1 is closed and flow from 1 to 2 is possible. |
| Max. flow rate | 40 l/min |
| Max working pressure | 350 BAR |
| Mounting length | 28 mm |
| Normally open or closed | Open |
| Product details | Normally open cartridge, Electrically powered check valve, Pre-actuated cartridge, Valve seat with max. leakage of 6 drops/min, Manual pin operation, Idle: free flow in both directions, Operated: free flow from 1 to 2, Operated: closed from 2 to 1 |
| Torque | 30 N·m |
| Unit | Each |
| With emergency function | Yes |
| Wrench/spanner size | 24.0 mm |
Compatible accessories
Parts and components that work with this product.
SP666
Omal Hirschmann Connector Plug SP666
£1.97 excl.
£2.36 incl.
EC9BER12
Walvoil Coil 12 VDC series 08 10 12 EC9BER12
£18.48 excl.
£22.18 incl.
EC9BER24
Walvoil Coil 24 VDC series 08 10 12 EC9BER24
£16.67 excl.
£20.00 incl.
3CC08206ST

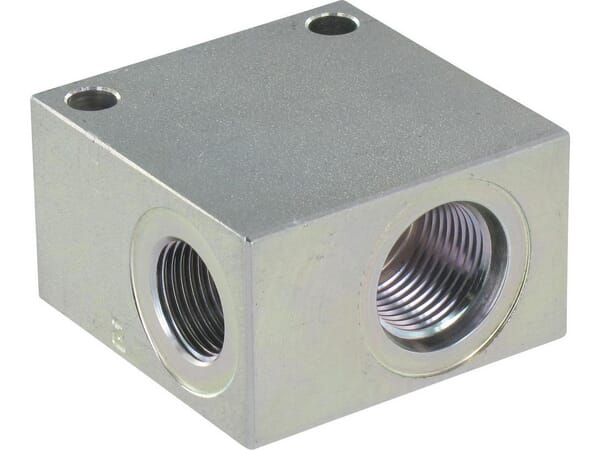

Walvoil Steel housing 8/2 3/8 BSP 3CC08206ST
£41.89 excl.
£50.27 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 185 g |
| Dimensions | 140 × 95 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000252420

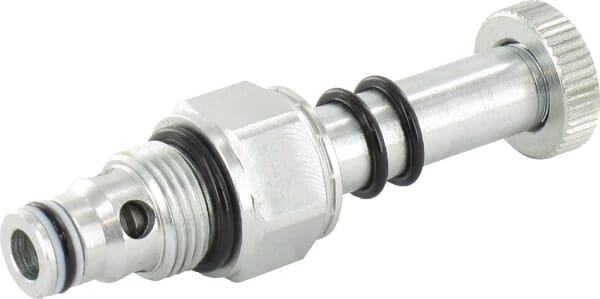

Walvoil Cartridge Valve 2/2 NO 40l/min EC08M10NB
£72.25 excl.
£86.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000283936

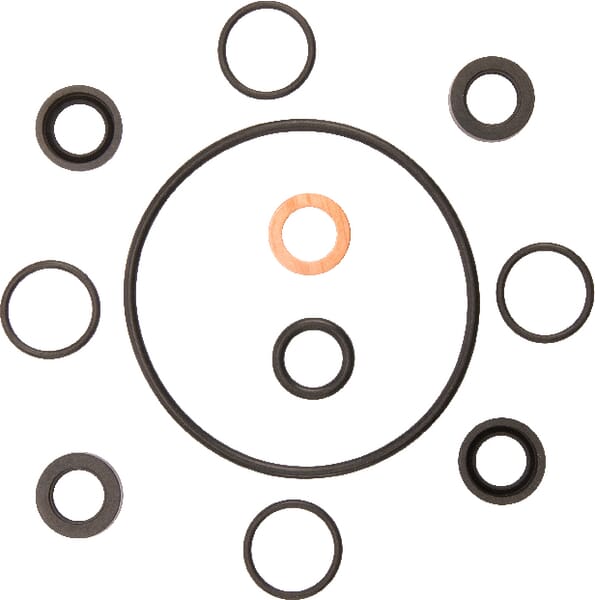

Walvoil Seal Kit HC-RCX Joystick HCRCX155N9011KIT
£69.43 excl.
£83.32 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000382544
Walvoil Pressure relief valve Steel VAIL20001ST
£265.55 excl.
£318.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000258470

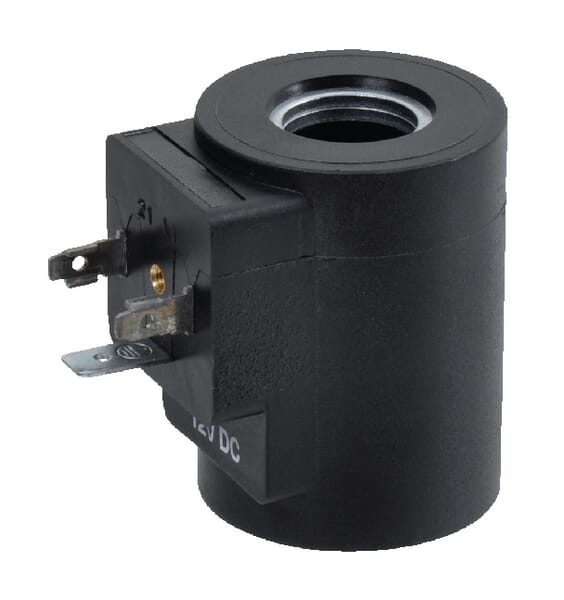

Walvoil Coil 110V RAC for EL SERIE 8 ELBC16110
£64.76 excl.
£77.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000376528

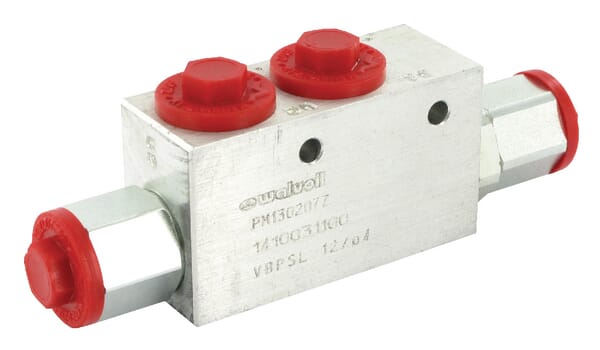

Walvoil Pilot Check valve A-08-1/2" VBPSL10001
