£135.25
excl. VAT
£162.30 incl. VAT
£162.30
incl. VAT
£135.25 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Forklifts, Telescopic arm, Trailers, Hydraulic motors, Semitrailers |
|---|---|

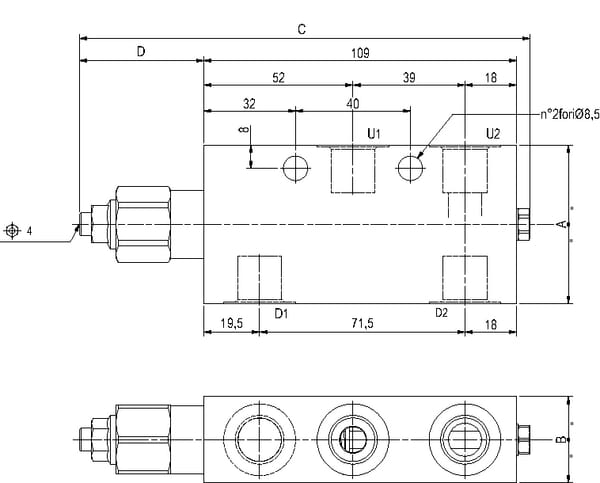

| ATotal width | 55 mm |
| Benefits | Suitable for mobile applications |
| BTotal height | 30 mm |
| Connections thread diameter | 3/8 Inch |
| Connections thread type | BSP |
| CTotal length | 165.4 mm |
| Designed for medium | Mineral oil |
| Details | Compact design |
| Material | Steel |
| Max flow rate | 30 l/min |
| Max working pressure | 400 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 2 |
| Pilot ratio | 1:4.0 |
| Properties | Suitable for mineral oil, Load-bearing function, Negative load control |
| Surface treatment | n/a |

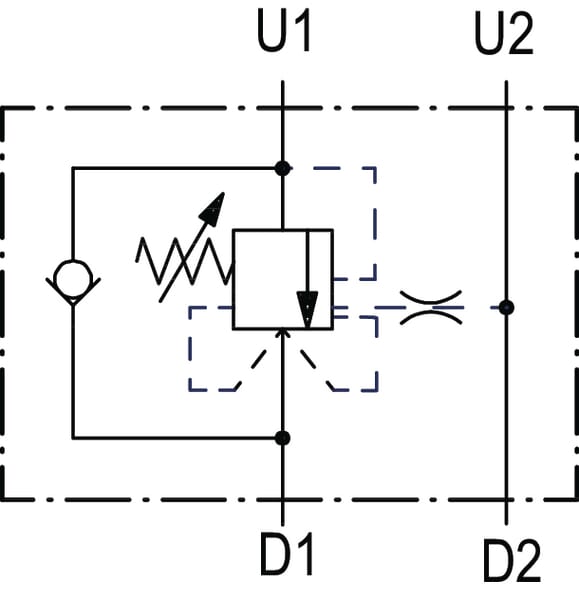

| Technical info | Suitable for use as a hose break valve, Item with N116: load-sensitive, Item with R116: balanced (limited sensitivity to return pressure), Item with V116: pressure-relieving spring chamber (insensitive to return pressure) |
| Type | Single |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1348 g |
| Dimensions | 163 × 75 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000357353

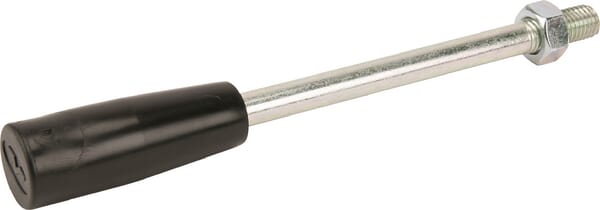

Walvoil M12 x 200 mm AL01 lever SD925L01
£5.80 excl.
£6.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000357402

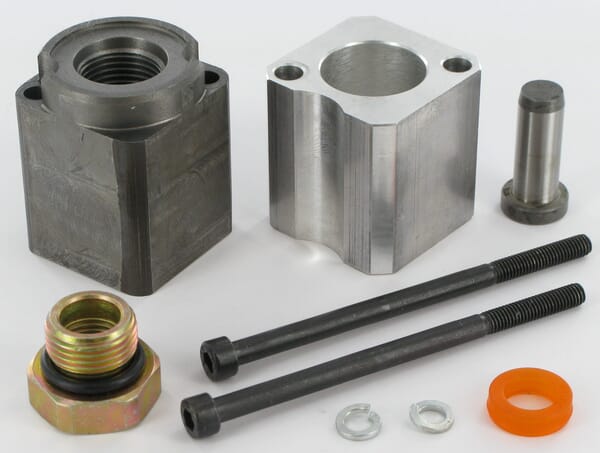

Walvoil Hydraulic actuation.b-side SD4/5/6 SD95B81A2
£74.97 excl.
£89.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000102934

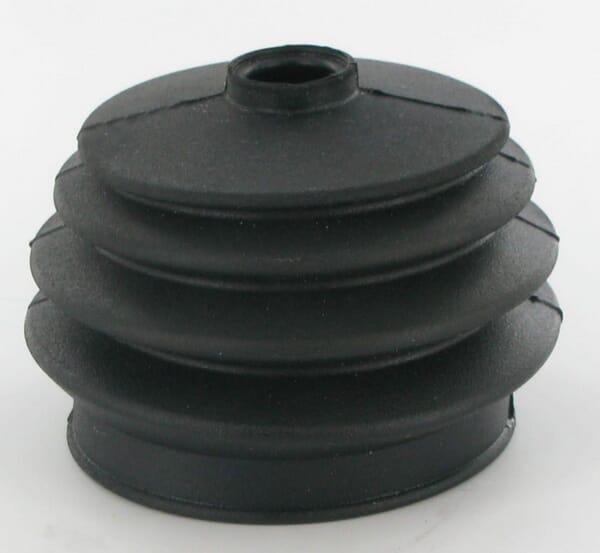

Walvoil Dust cover SV01.9 3SOF1A6820
£7.20 excl.
£8.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000357295

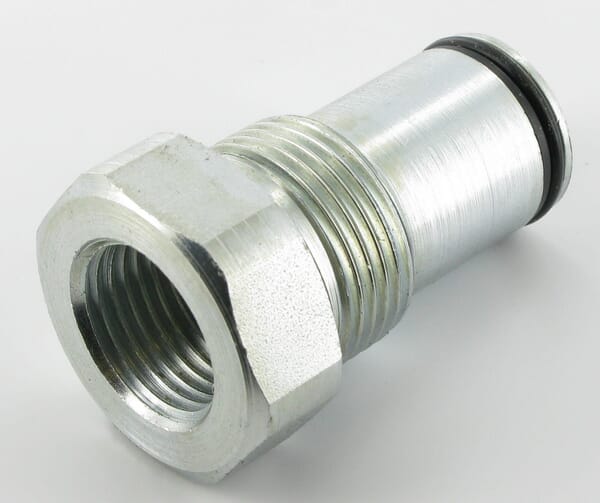

Walvoil Plug type AE SD911VAE
£8.56 excl.
£10.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000357386

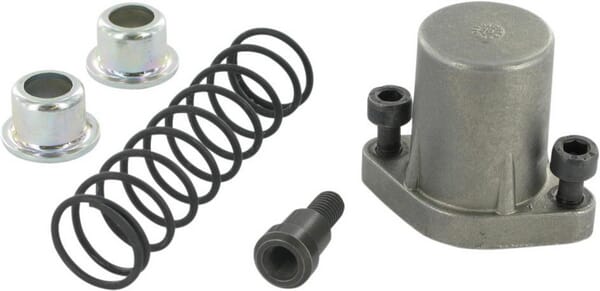

Walvoil Detent kit TYPE 8L SD4/5/6 SD95A8L
