£141.38
excl. VAT
£169.66 incl. VAT
£169.66
incl. VAT
£141.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Forklifts, Telescopic arm, Trailers, Hydraulic motors, Semitrailers |
|---|---|
| ATotal width | 65 mm |
| Benefits | Suitable for mobile applications |
| BTotal height | 35 mm |
| Connections thread diameter | 1/2 Inch |
| Connections thread type | BSP |
| CTotal length | 163.5 mm |
| Designed for medium | Mineral oil |
| Details | Compact design |
| Material | Steel |
| Max flow rate | 60 l/min |
| Max working pressure | 400 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 2 |
| Pilot ratio | 1:4.0 |
| Properties | Suitable for mineral oil, Load-bearing function, Negative load control |
| Surface treatment | n/a |
| Technical info | Suitable for use as a hose break valve, Item with N116: load-sensitive, Item with R116: balanced (limited sensitivity to return pressure), Item with V116: pressure-relieving spring chamber (insensitive to return pressure) |
| Type | Single |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1778 g |
| Dimensions | 163 × 85 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000341151
Walvoil 3 way flow control valve 12V PP10WA20B
£343.86 excl.
£412.63 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000247238

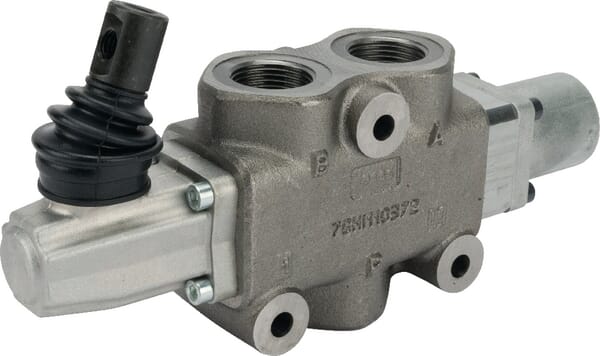

Walvoil Control valve 3-way DF25/3A-12L DF253001
£350.02 excl.
£420.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357483

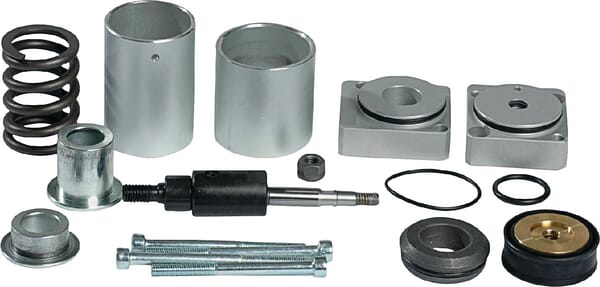

Walvoil Pneum. control SD8 on/off SD98A8P
£129.90 excl.
£155.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000389050

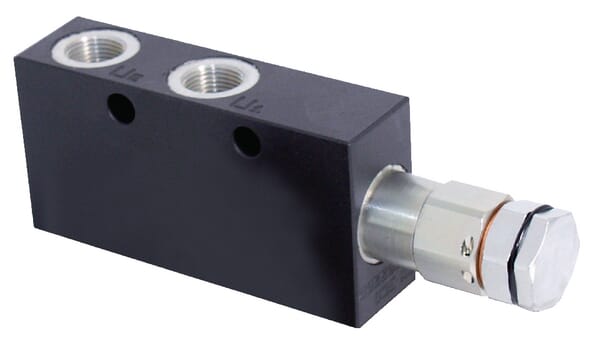

Walvoil Counter balance V1116 3/8 G5P4 VOSL05004ST
£127.67 excl.
£153.20 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000396099

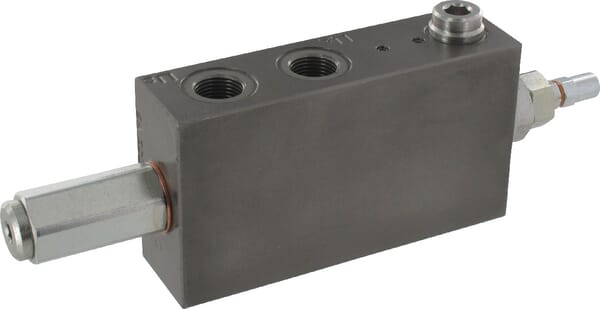

Walvoil Shuttle valve VRCL05001
£296.24 excl.
£355.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000382535

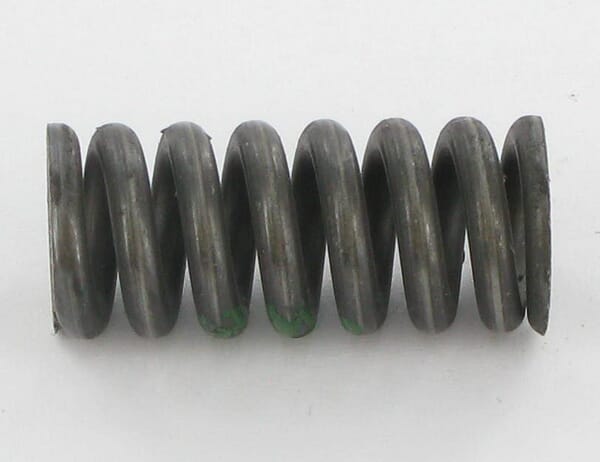

Walvoil Spring for VAIL 05 0-100 bar VAIF905540
